Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 33 >> Supplemental Inflatable Restraint (SIR)

Supplemental Inflatable Restraint (SIR)

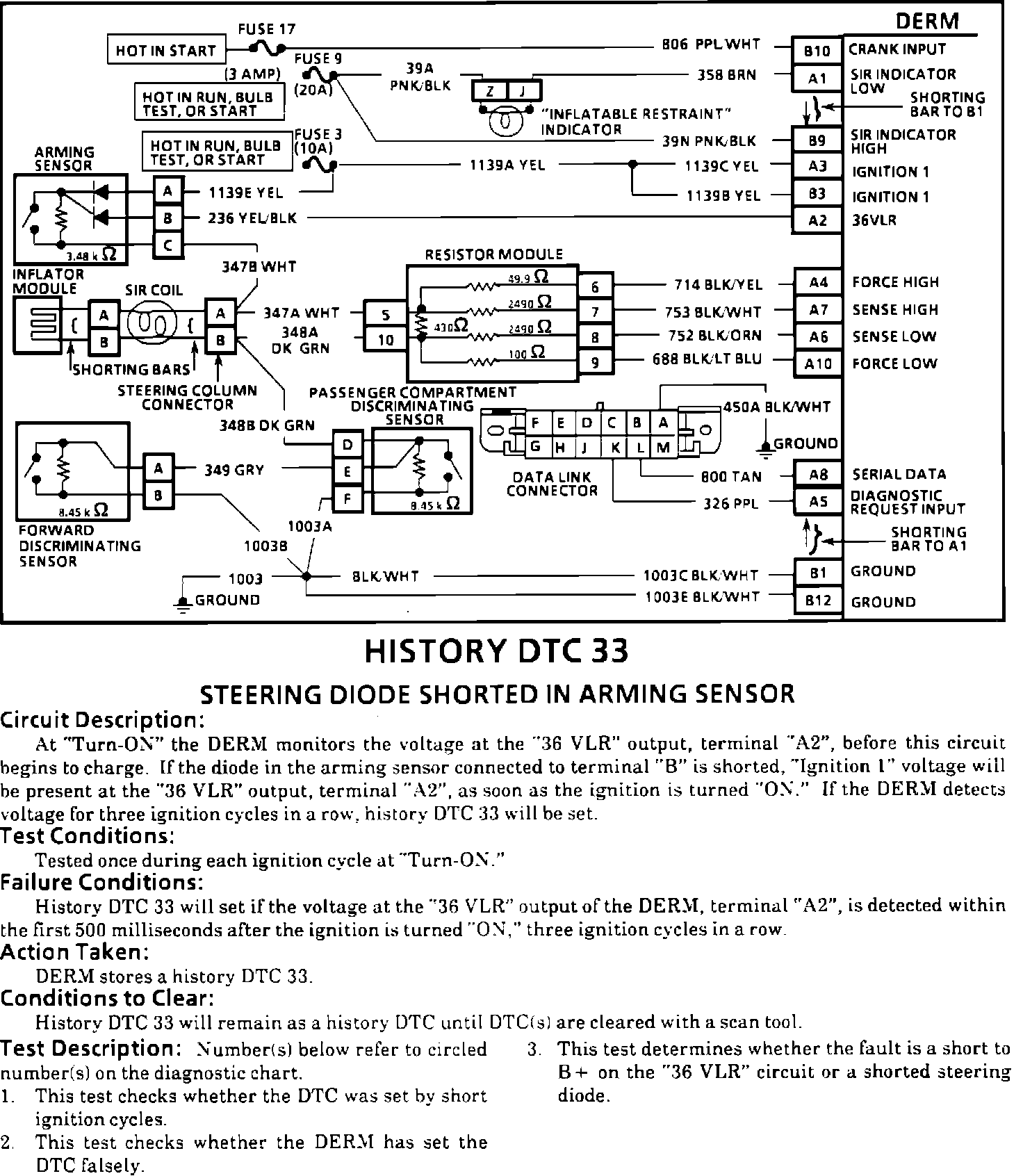

Fig. 94 History Code 33, Steering Diode Shorted In Arming Sensor (Part 1 of 2):

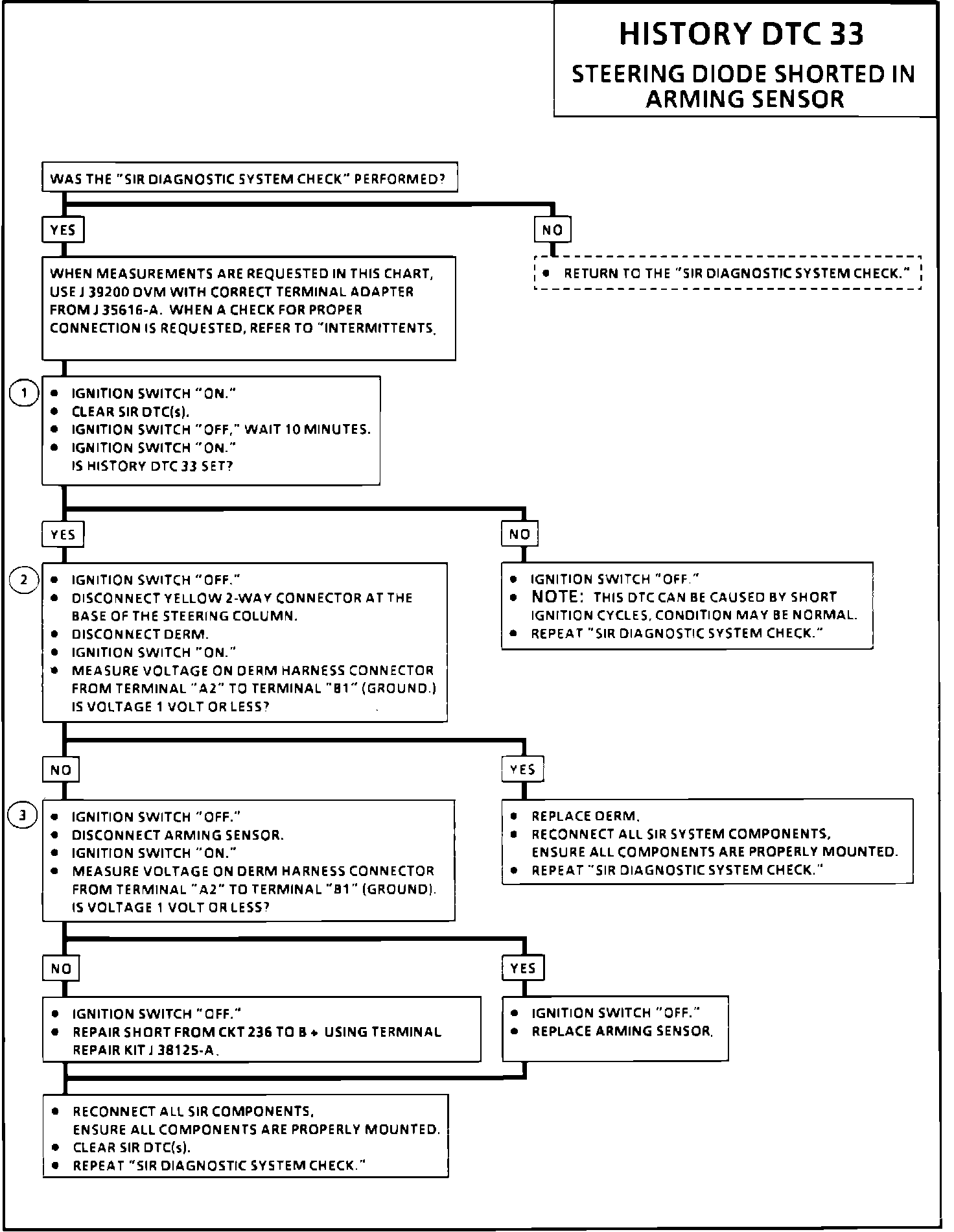

Fig. 94 History Code 33, Steering Diode Shorted In Arming Sensor (Part 2 of 2):
