Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 31

DTC 31

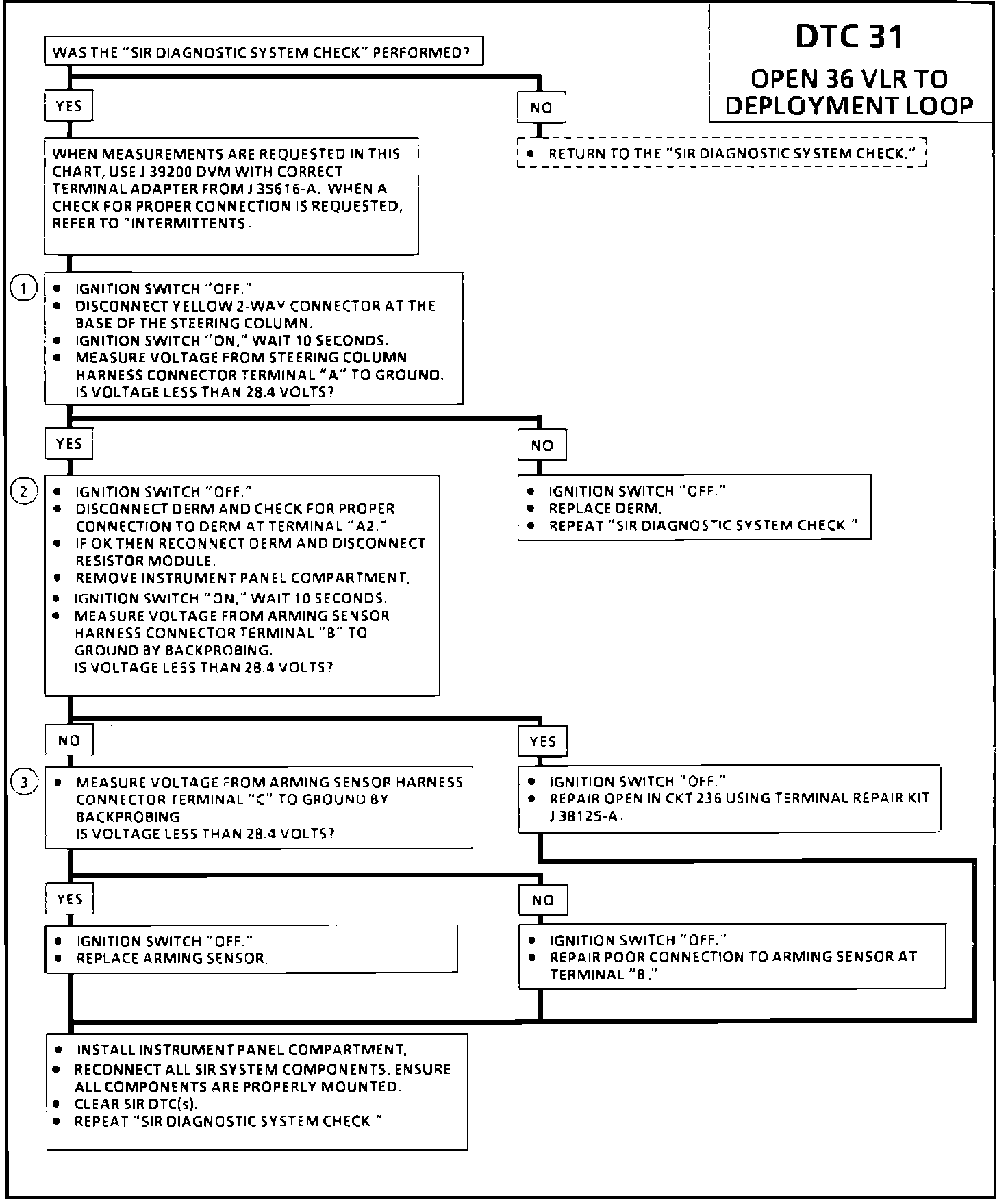

Fig. 92 Code 31, Open 36VLR To Deployment Loop (Part 1 of 2):

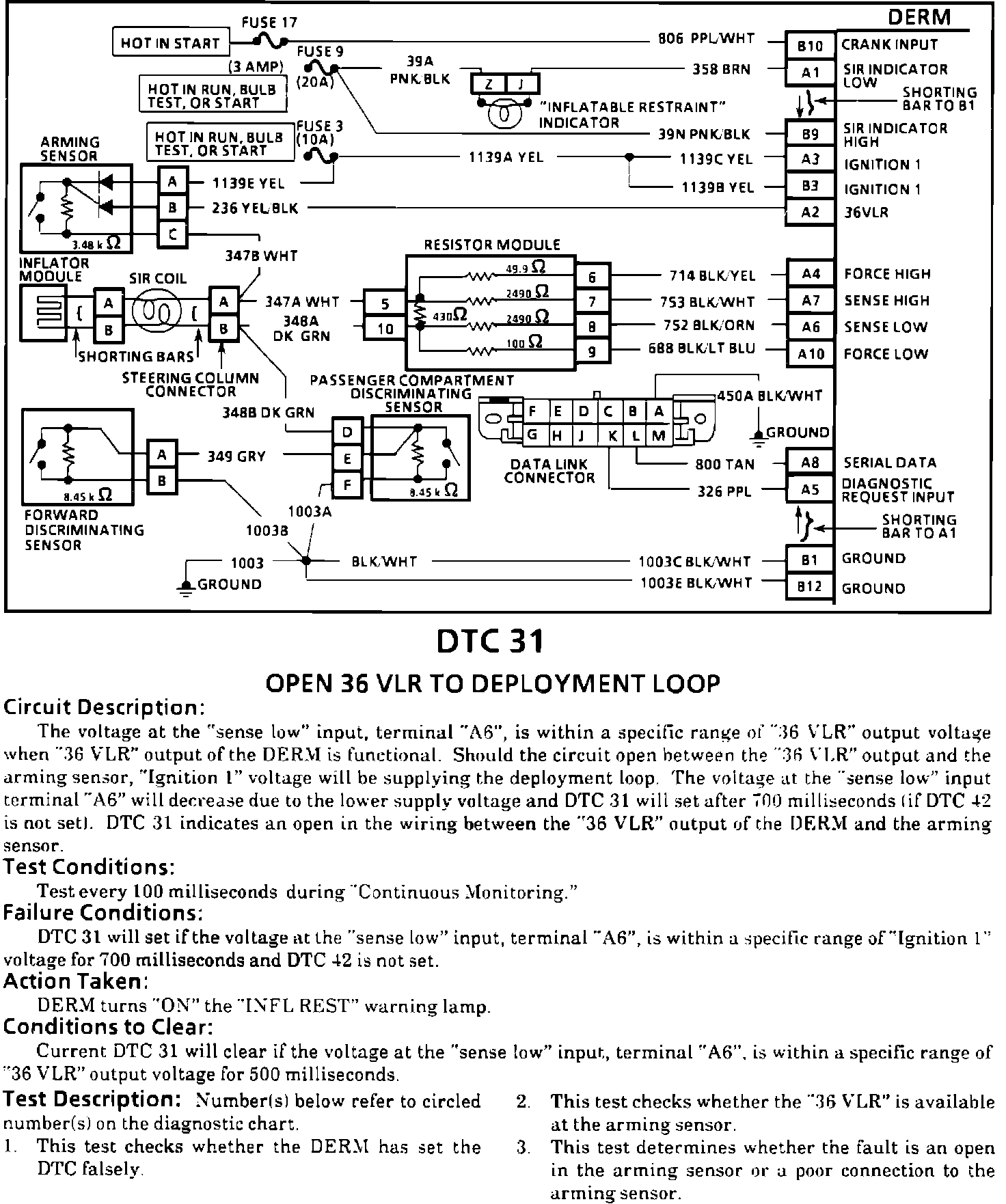

Fig. 92 Code 31, Open 36VLR To Deployment Loop (Part 2 of 2):
