Supplemental Inflatable Restraint (SIR)

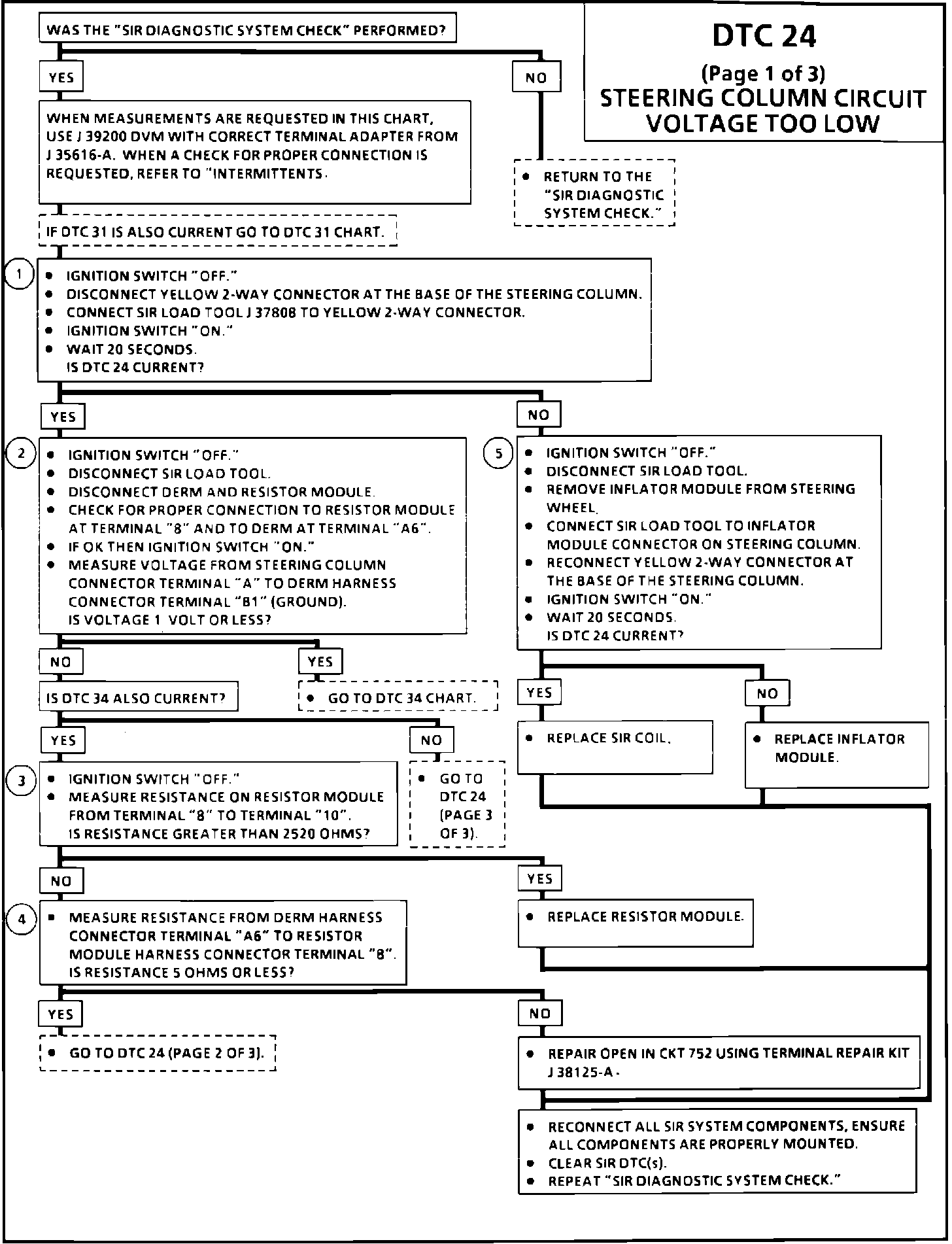

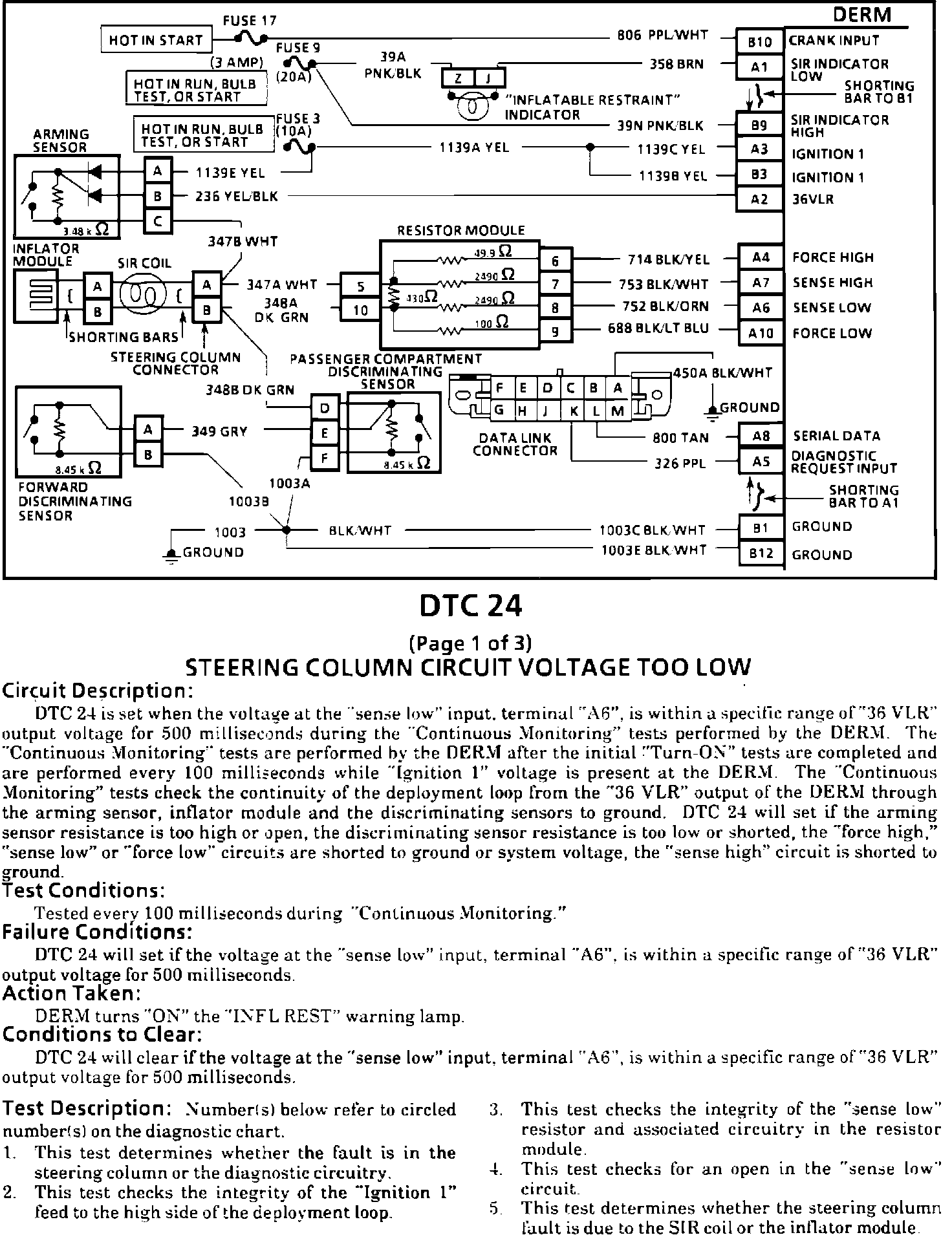

Fig. 89 Code 24, Steering Column Circuit Voltage Too Low (Part 1 Of 6):

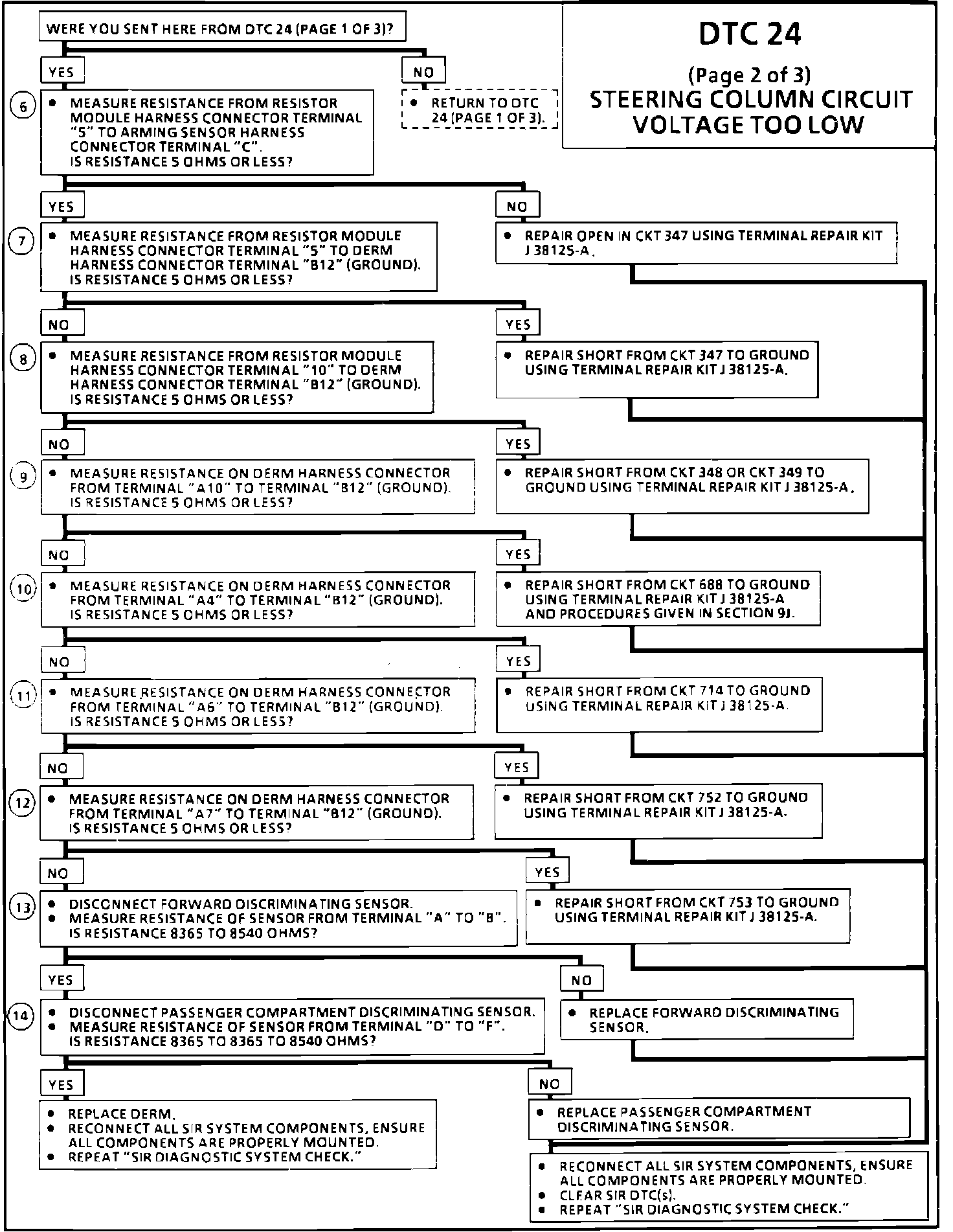

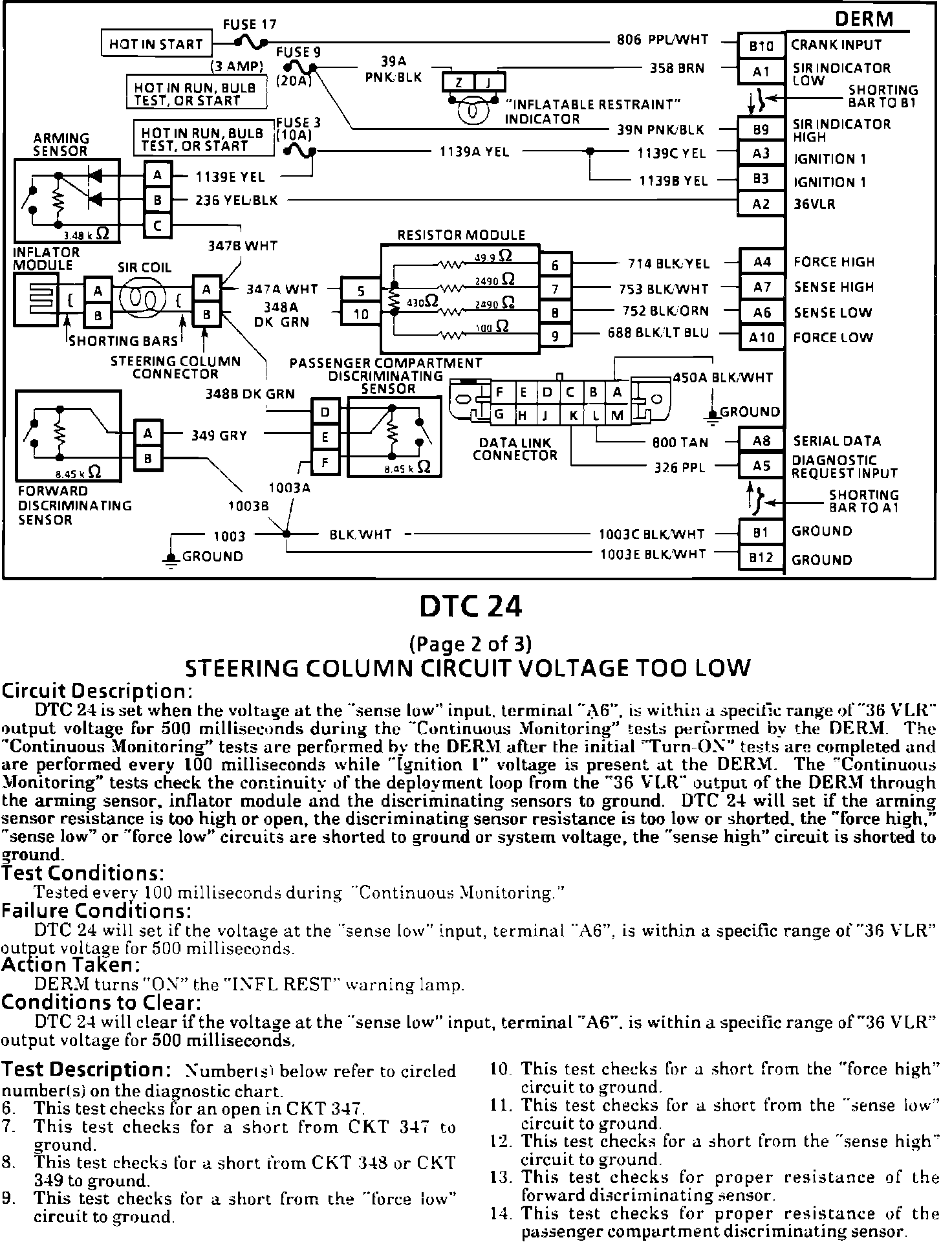

Fig. 89 Code 24, Steering Column Circuit Voltage Too Low (Part 2 Of 6):

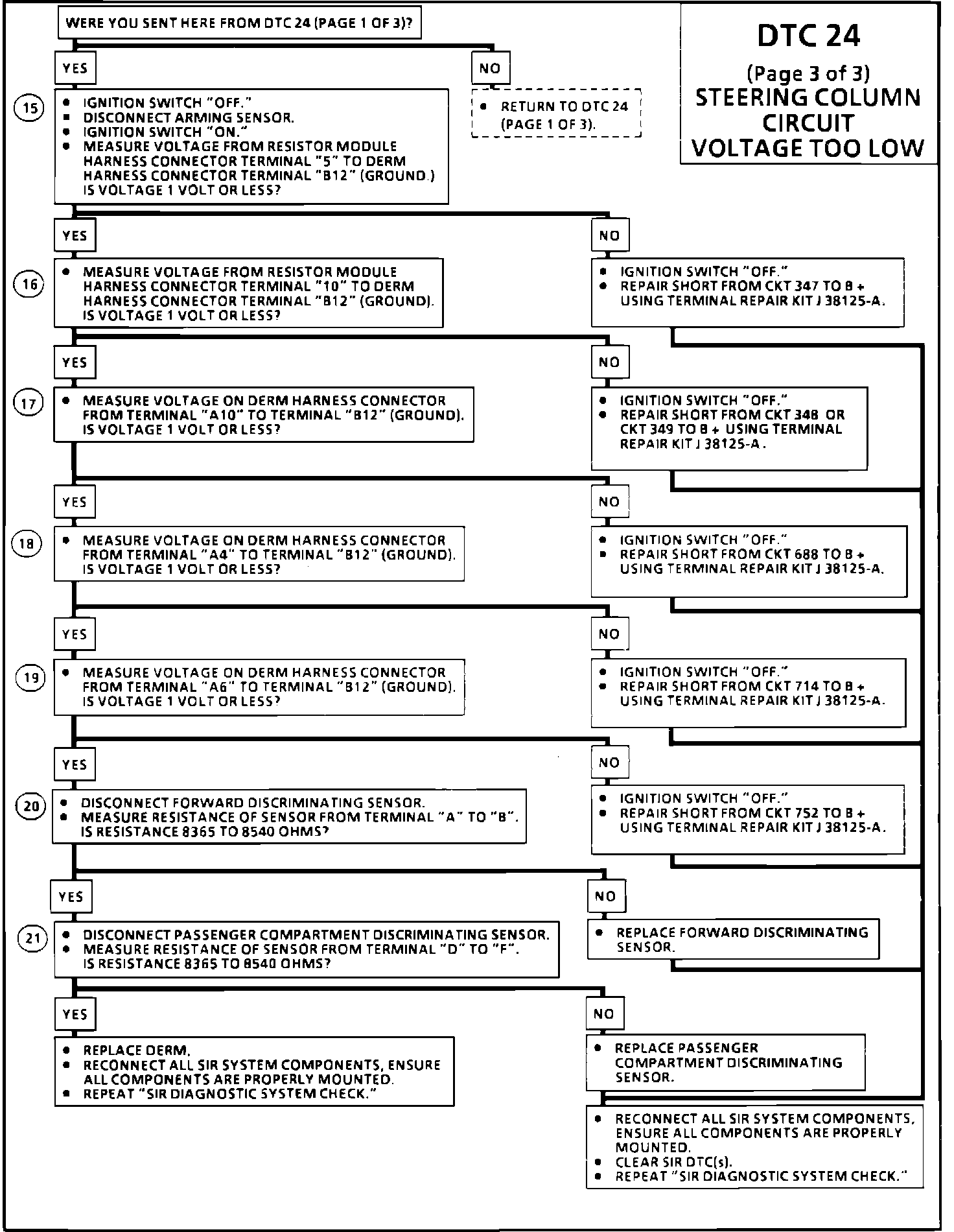

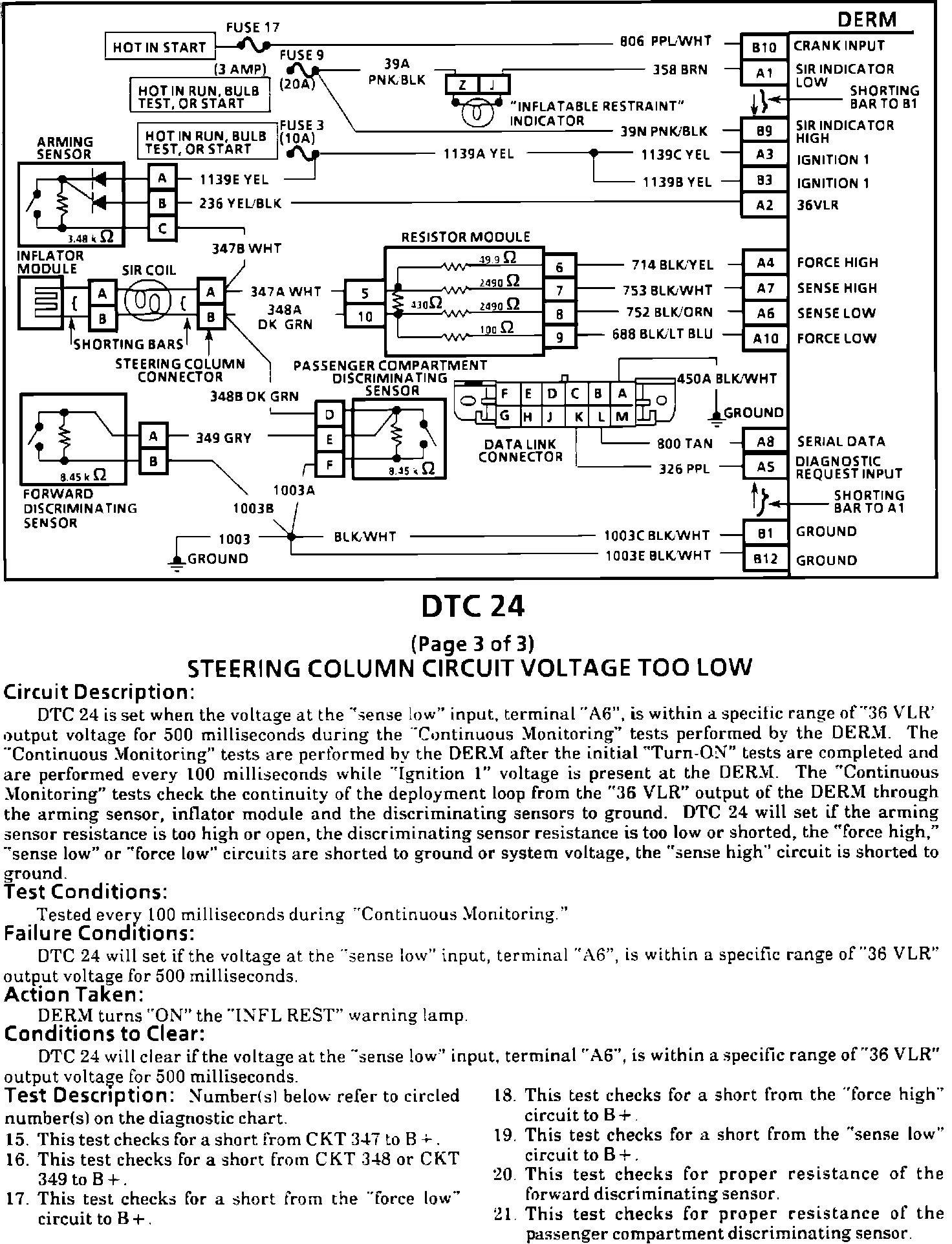

Fig. 89 Code 24, Steering Column Circuit Voltage Too Low (Part 3 Of 6):

Fig. 89 Code 24, Steering Column Circuit Voltage Too Low (Part 4 Of 6):

Fig. 89 Code 24, Steering Column Circuit Voltage Too Low (Part 5 Of 6):

Fig. 89 Code 24, Steering Column Circuit Voltage Too Low (Part 6 Of 6):
