A087

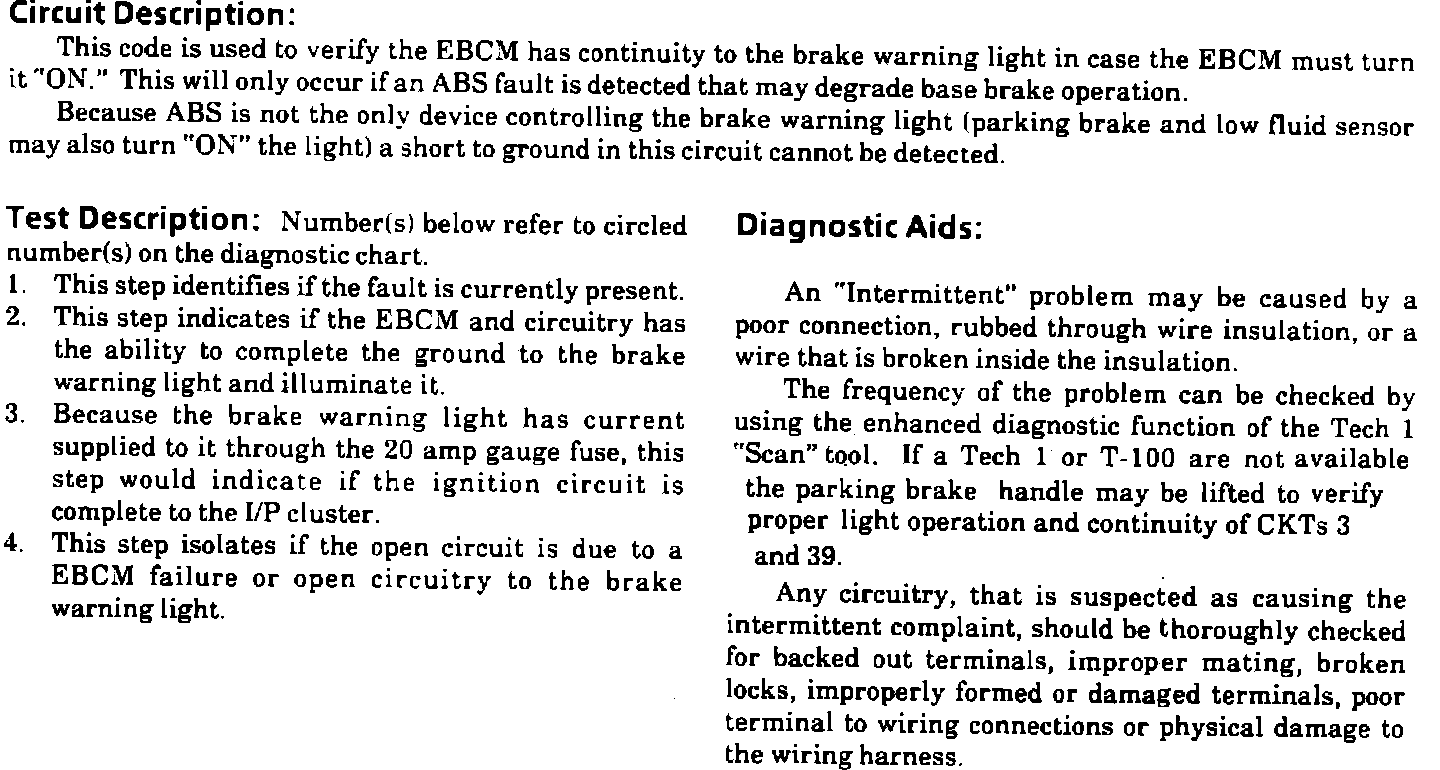

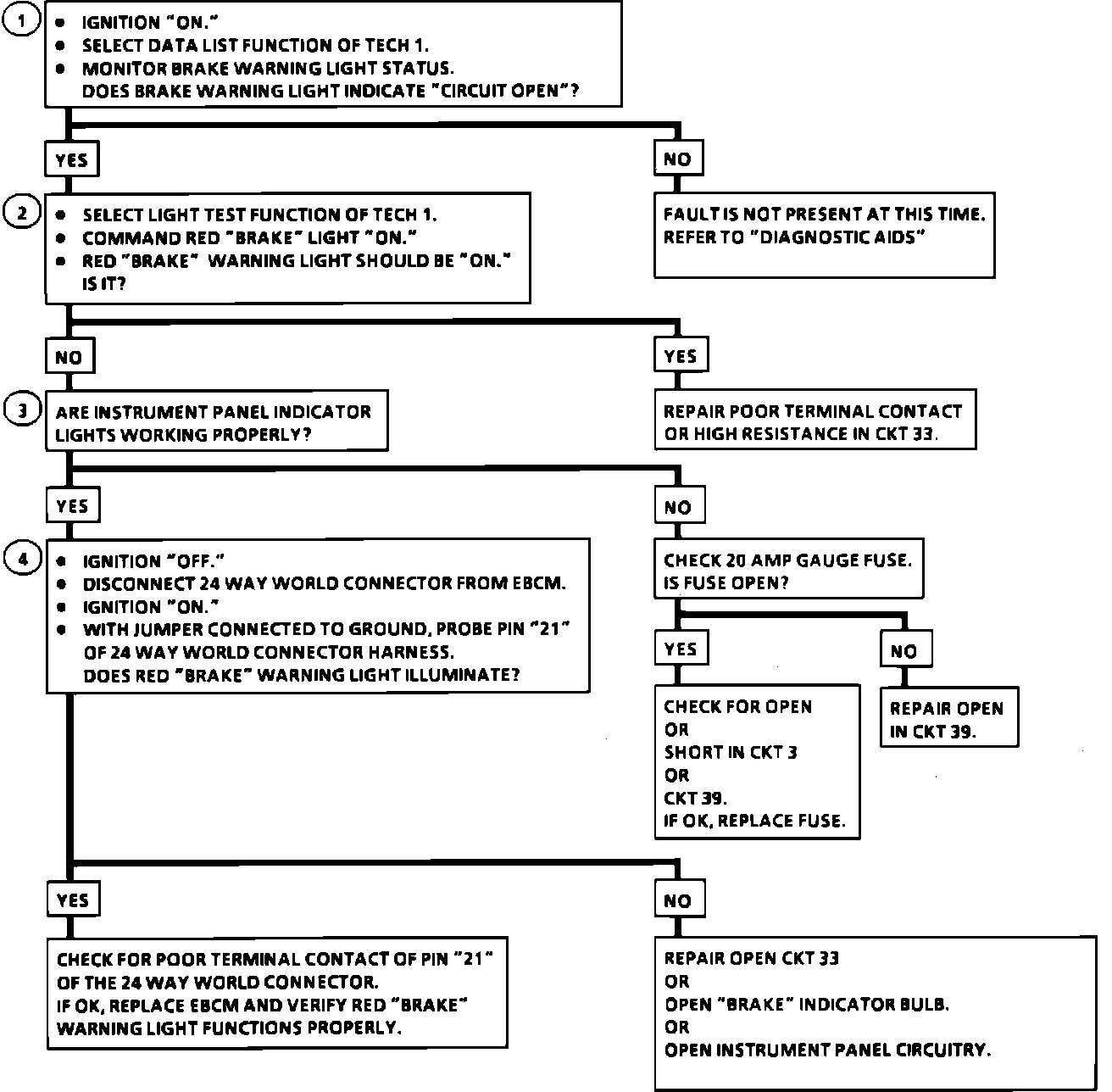

Fig. 73 Code A087, Red Brake Telltale Circuit Open:



Fig. 73 Code A087, Red Brake Telltale Circuit Open:
