A086

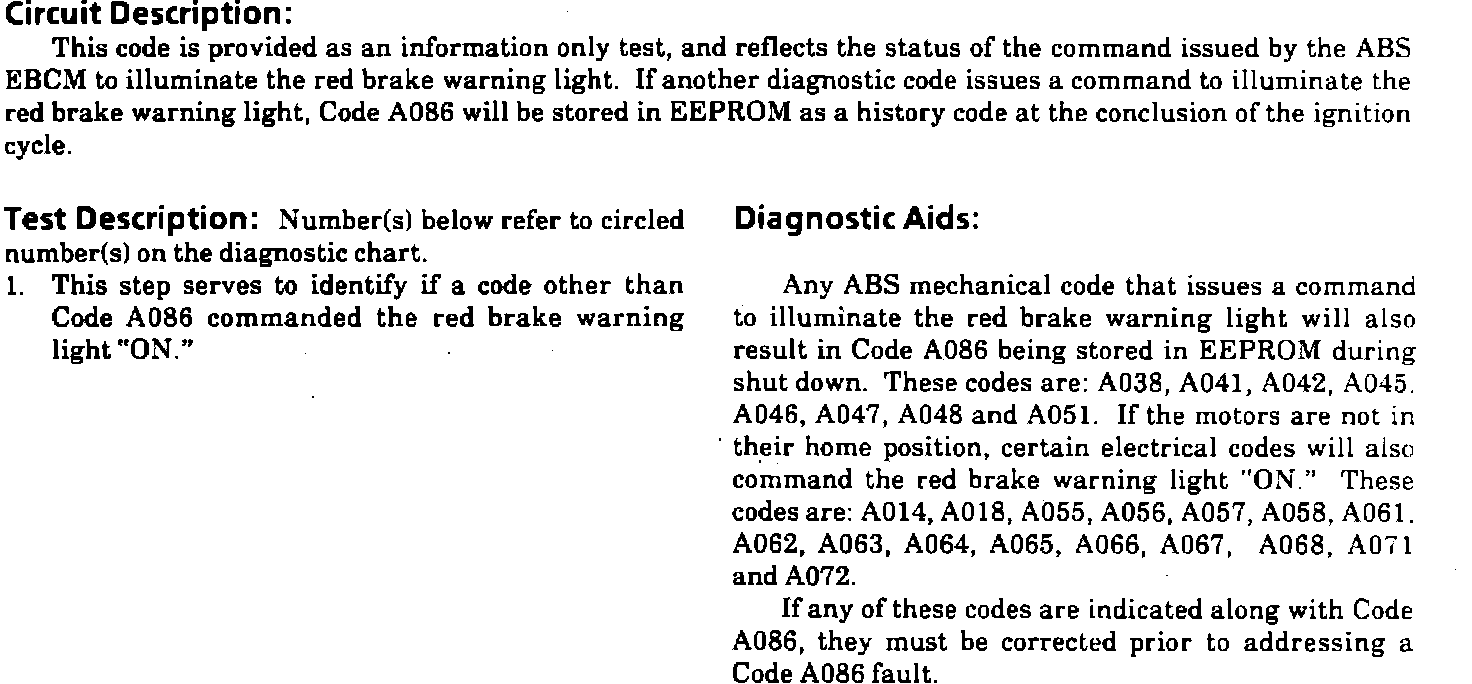

Fig. 72 Code A086, ABS Enable Red Brake Telltale:



Fig. 72 Code A086, ABS Enable Red Brake Telltale:
