Home >> Chevrolet >> 1992 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> - A Code Charts >> A081

A081

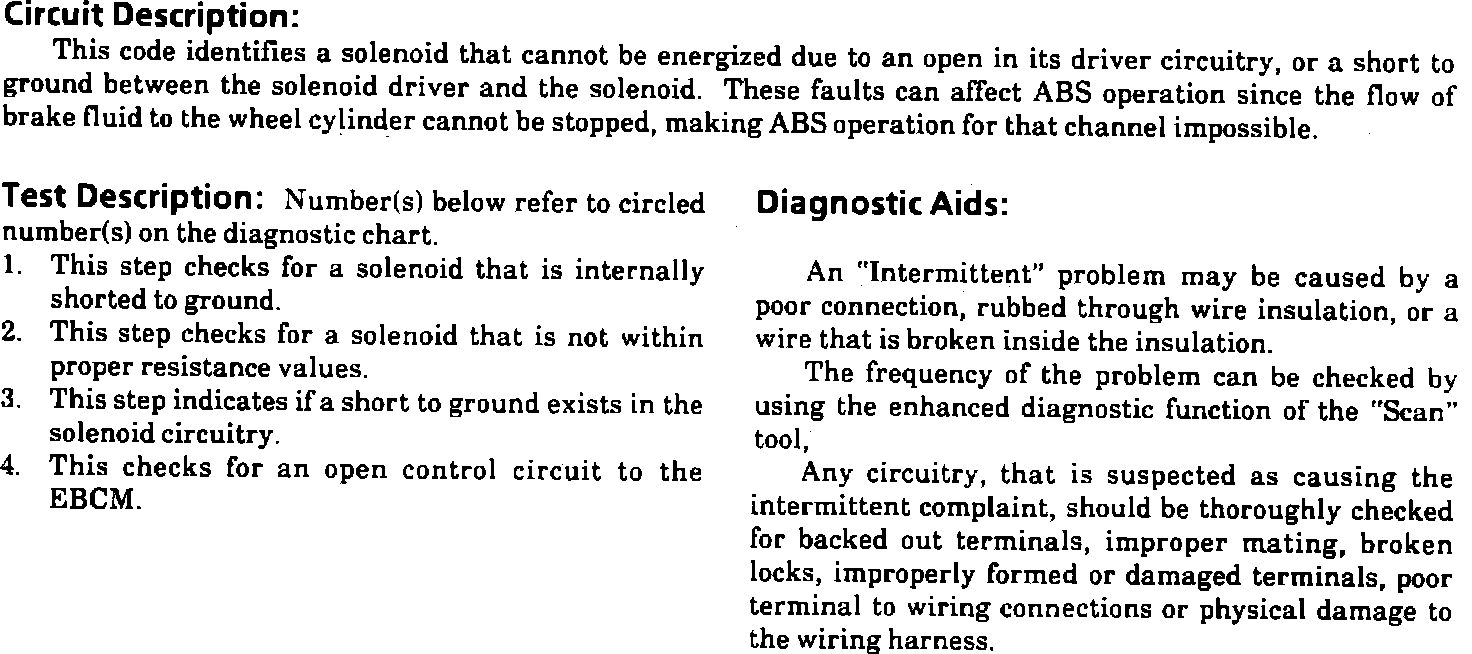

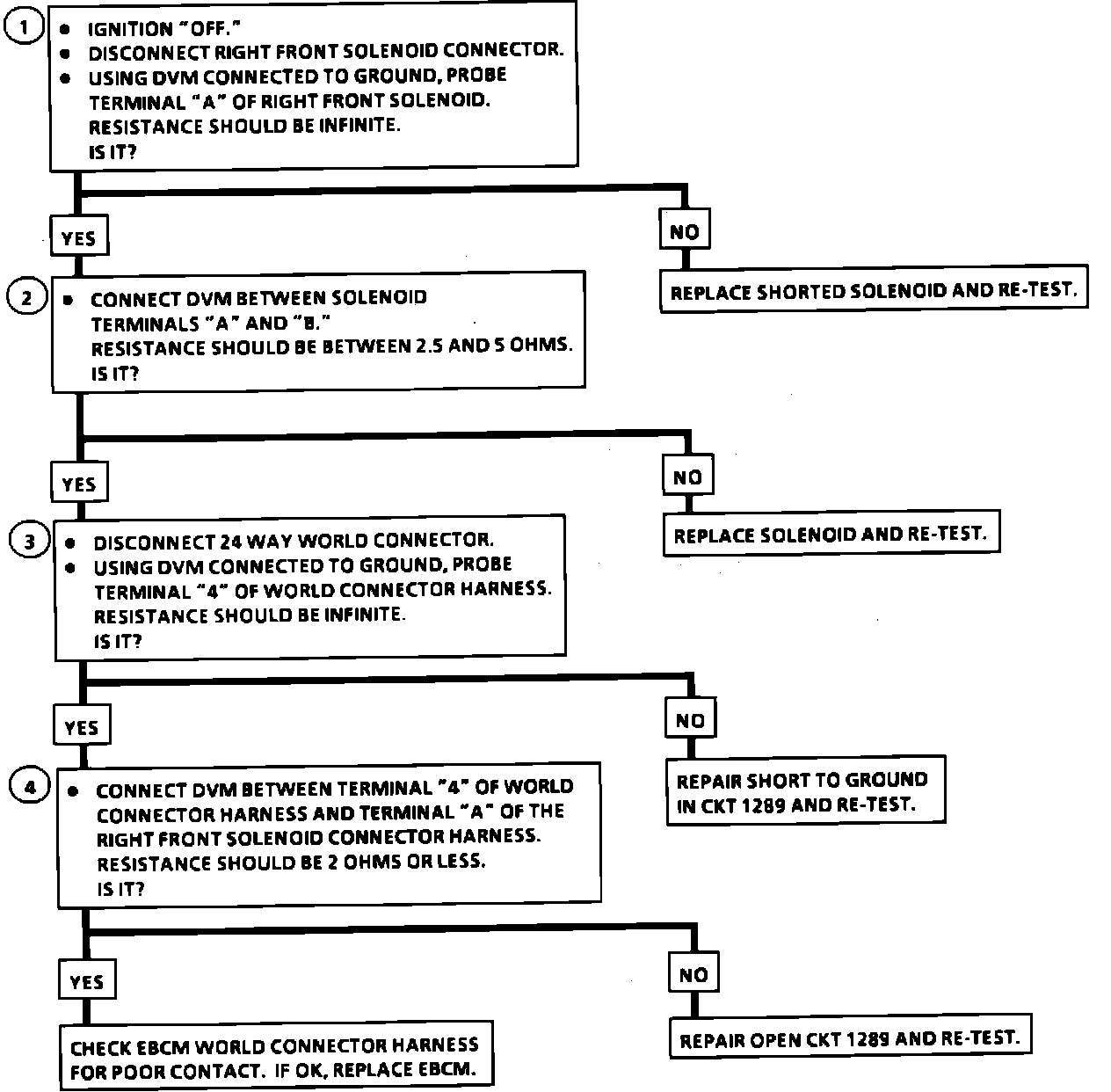

Fig. 70 Code A081, Right Front Solenoid Shorted To Ground Or Driver Open:



Fig. 70 Code A081, Right Front Solenoid Shorted To Ground Or Driver Open:
