A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
- A Code Charts
>>
A077
A077

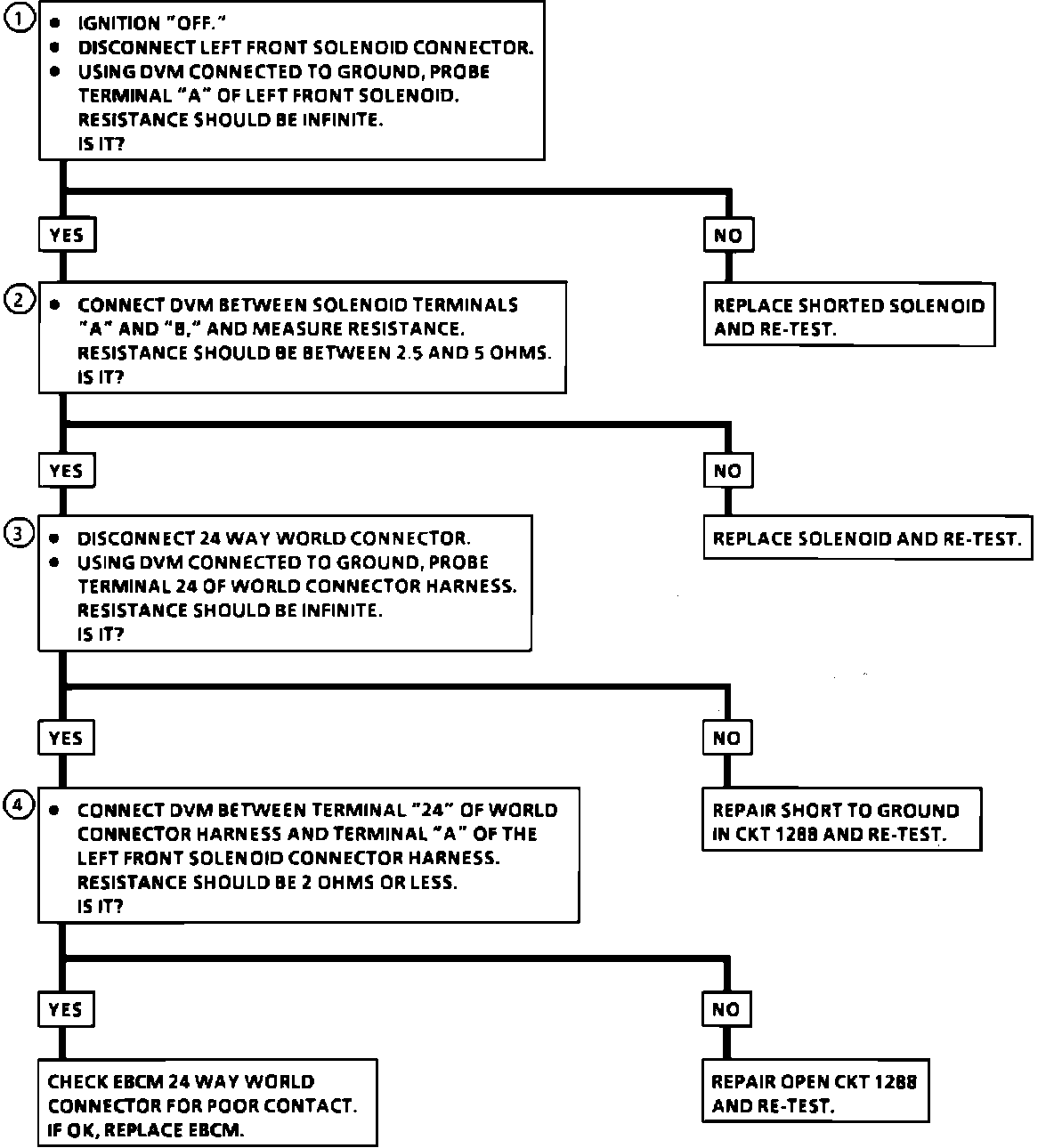

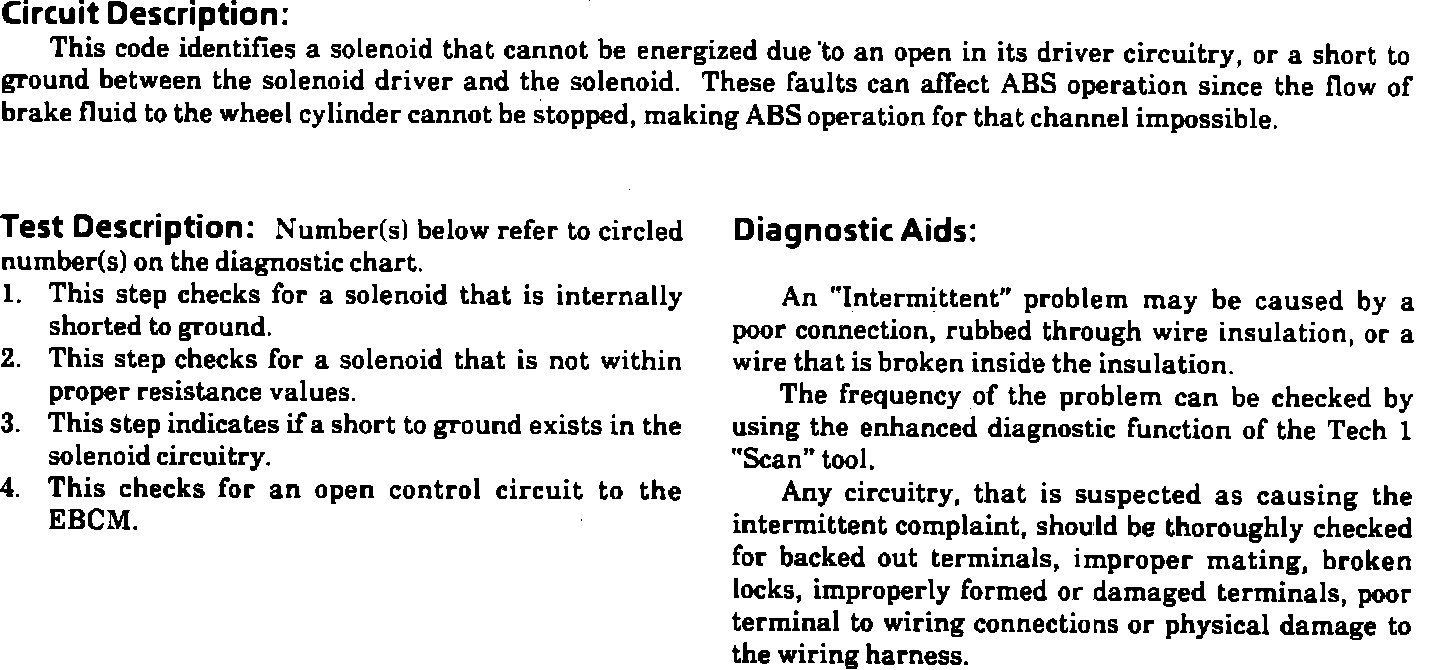

Fig. 68 Code A077, Left Front Solenoid Shorted To Ground Or Driver Open:
Fig. 68 Code A077, Left Front Solenoid Shorted To Ground Or Driver Open:
