A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
- A Code Charts
>>
A076
A076

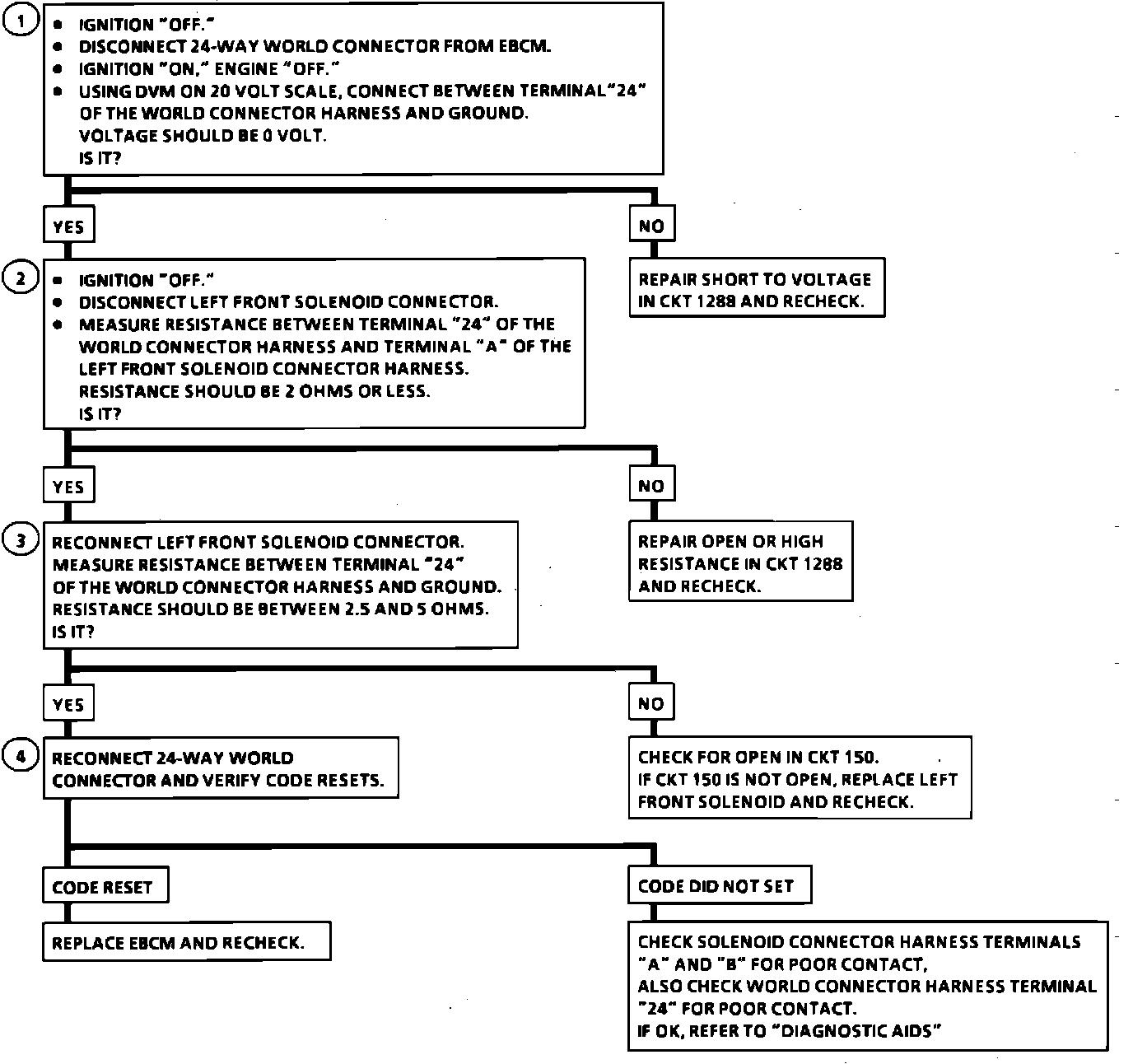

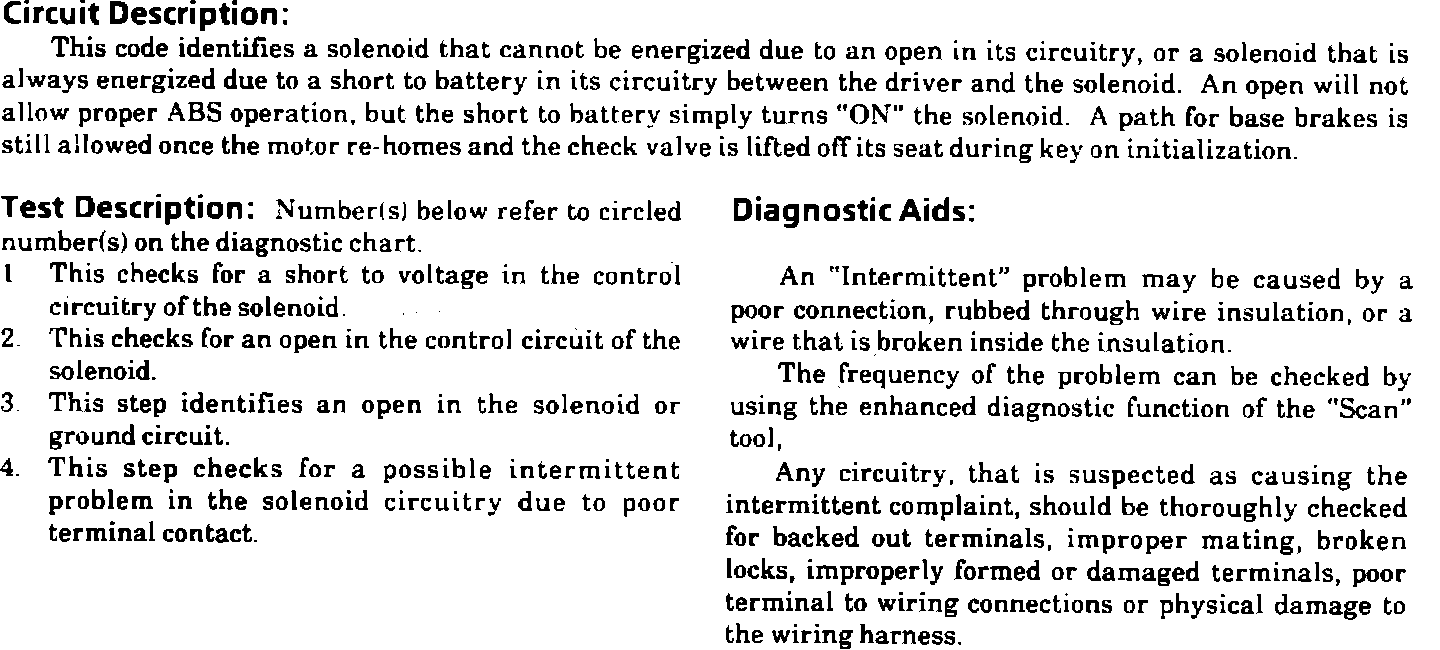

Fig. 67 Code A076, Left Front Solenoid Circuit Open Or Shorted To Battery:
Fig. 67 Code A076, Left Front Solenoid Circuit Open Or Shorted To Battery:
