A056

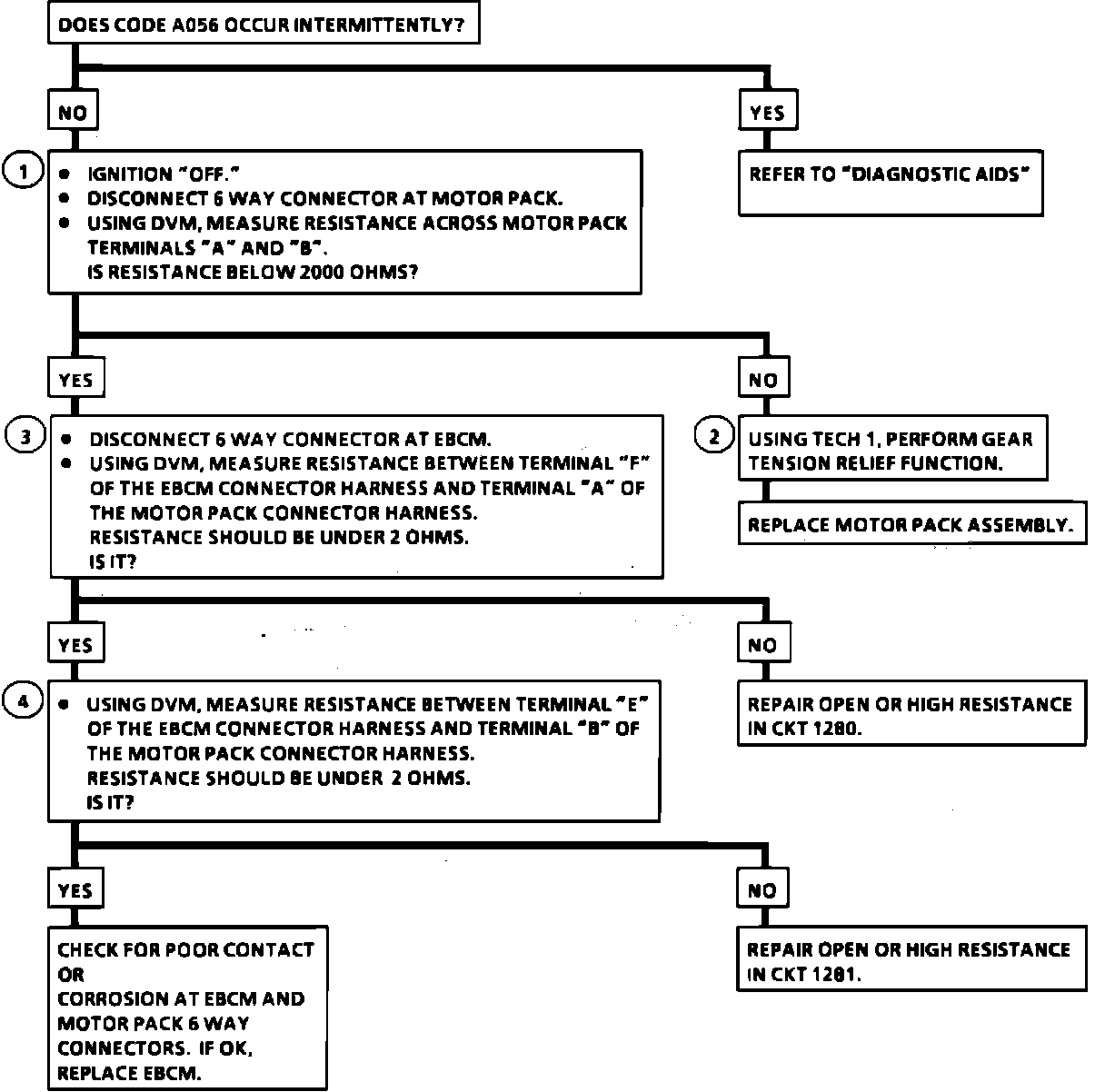

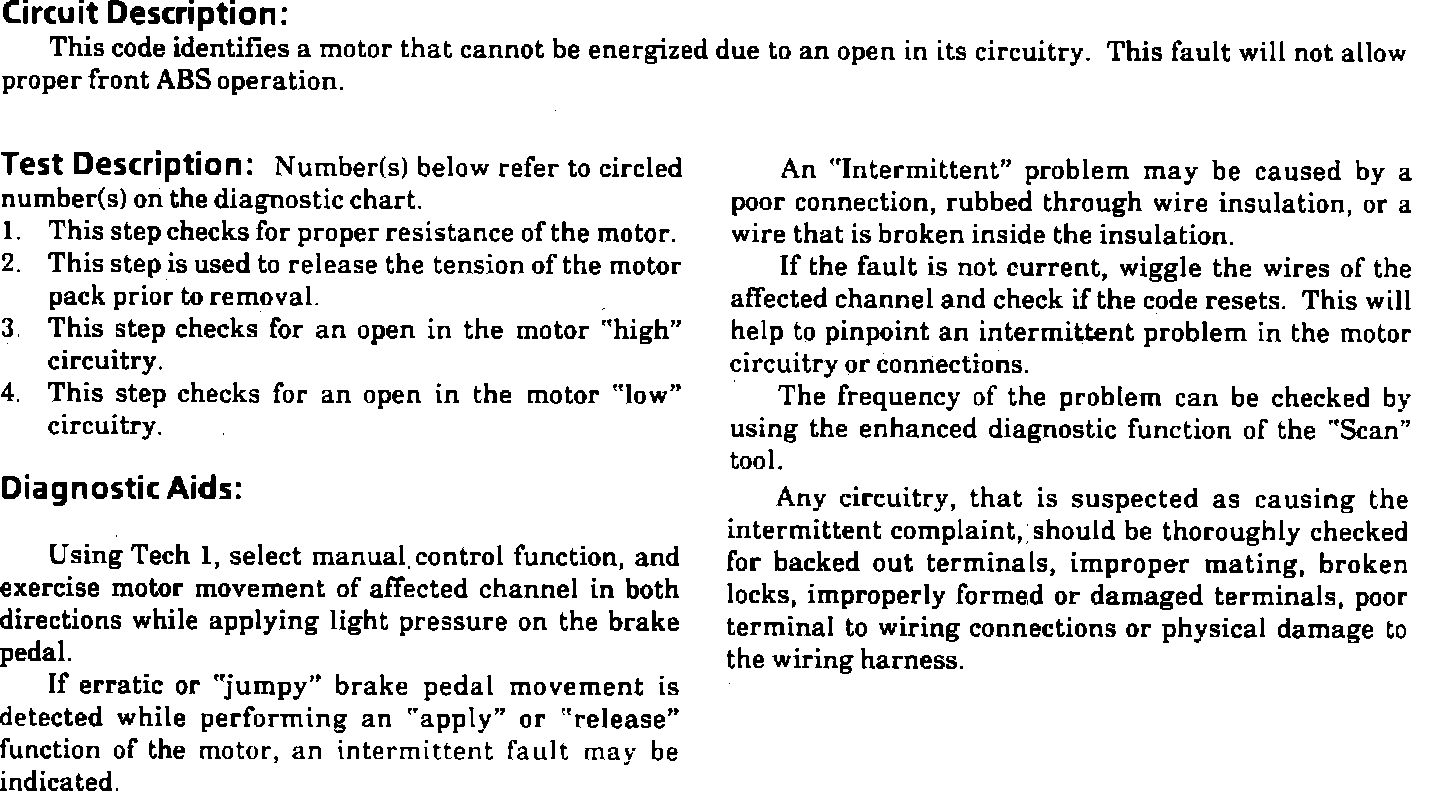

Fig. 54 Code A056, Left Front Motor Circuit Open:



Fig. 54 Code A056, Left Front Motor Circuit Open:
