A017

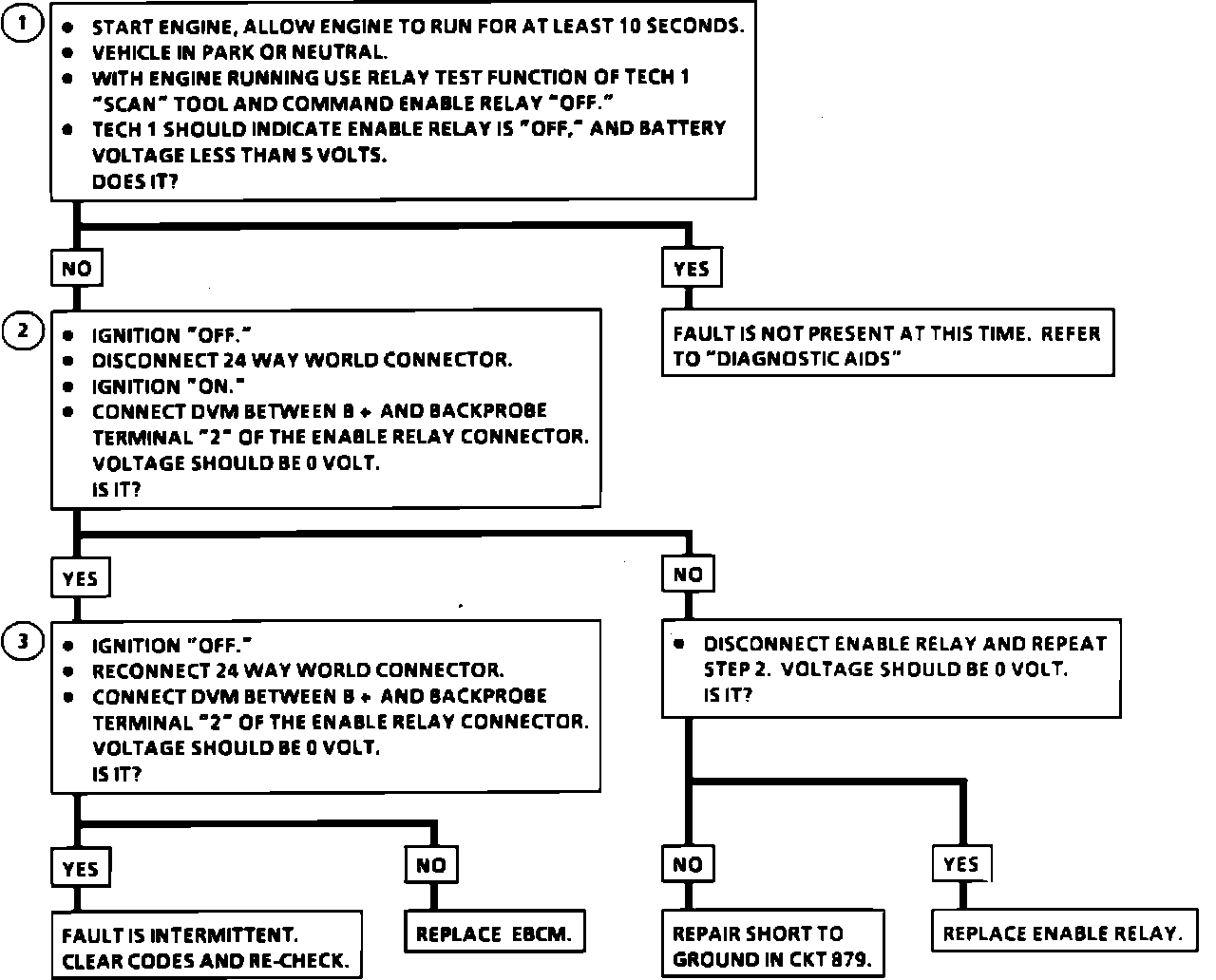

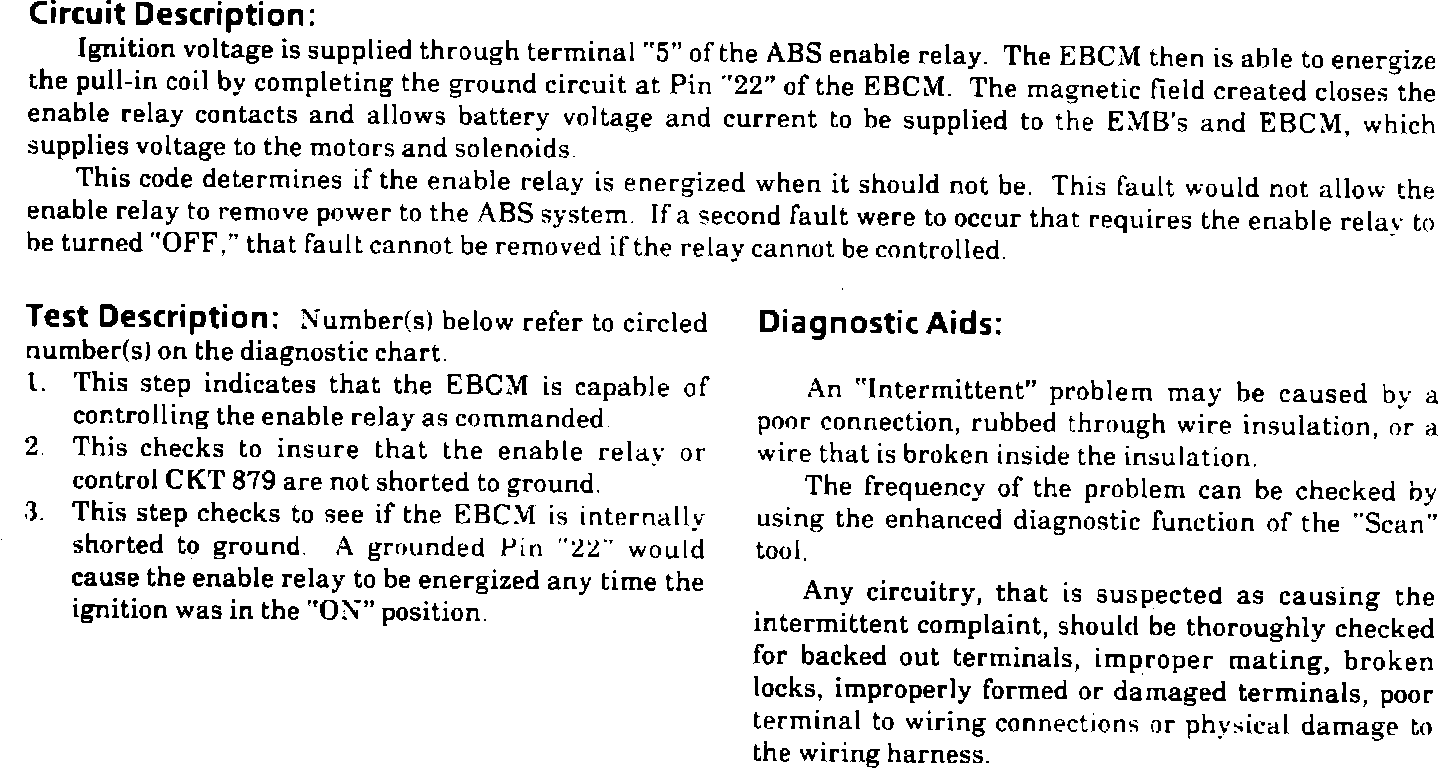

Fig. 21 Code A017, Enable Relay Coil Circuit Shorted To Ground:



Fig. 21 Code A017, Enable Relay Coil Circuit Shorted To Ground:
