LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1992
>>
Corsica V6-191 3.1L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
- A Code Charts
>>
A016
A016

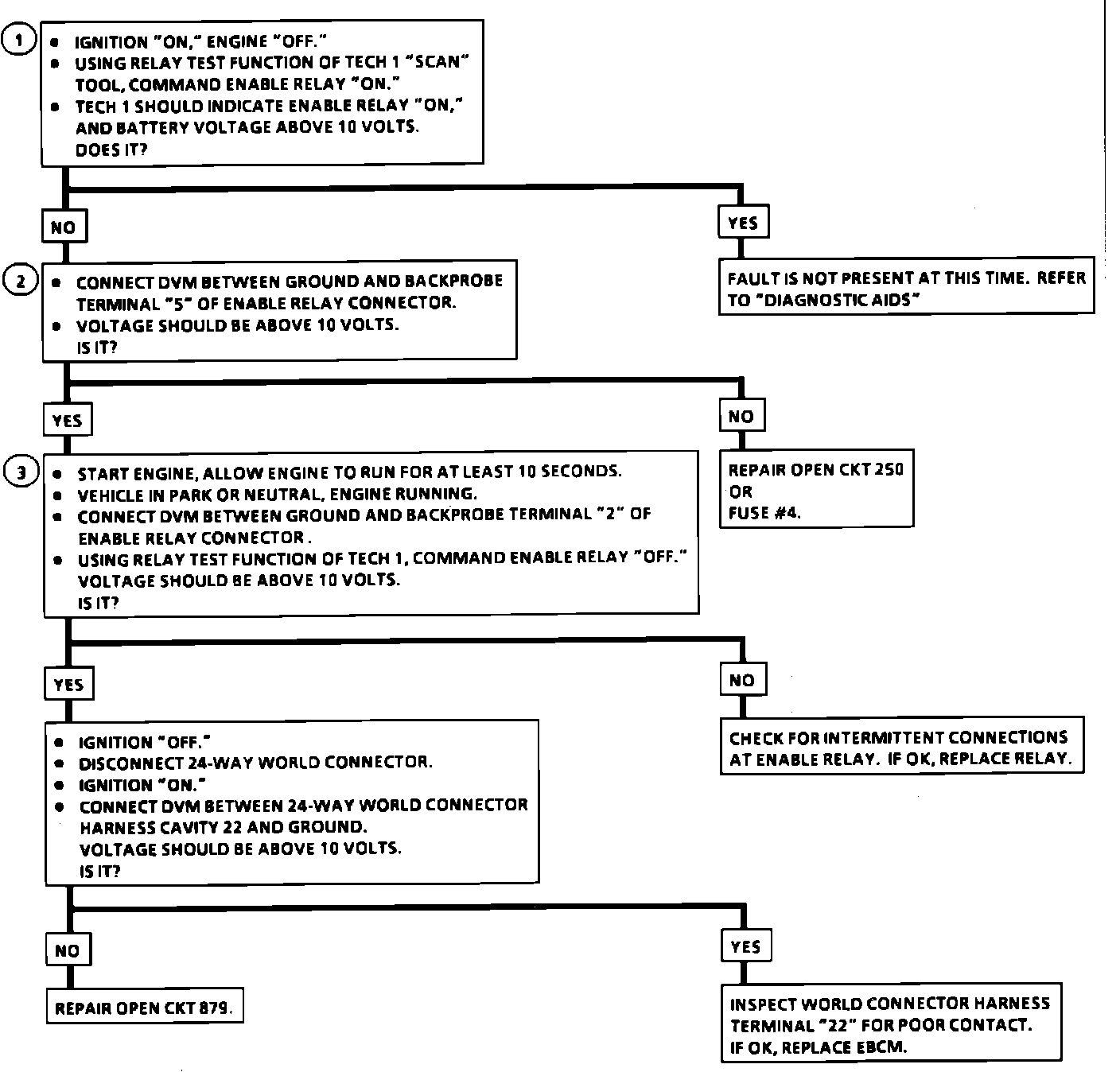

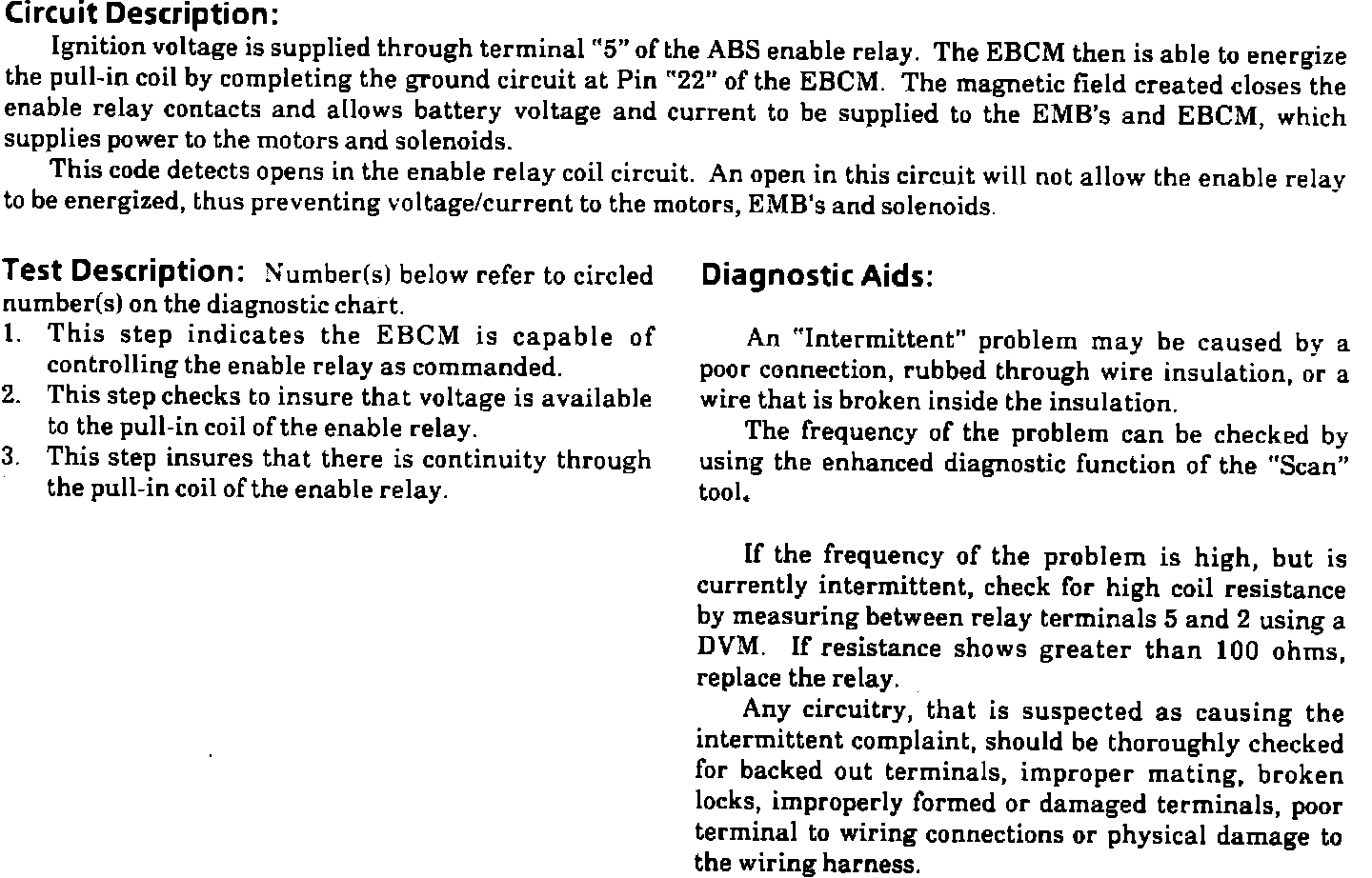

Fig. 20 Code A016, Enable Relay Coil Circuit Open:
Fig. 20 Code A016, Enable Relay Coil Circuit Open:
