Indicators & Gauges PINOUT Test

Check voltage or resistance at IPC connector to determine if proper readings are supplied to IPC. See Fig 1 -9.

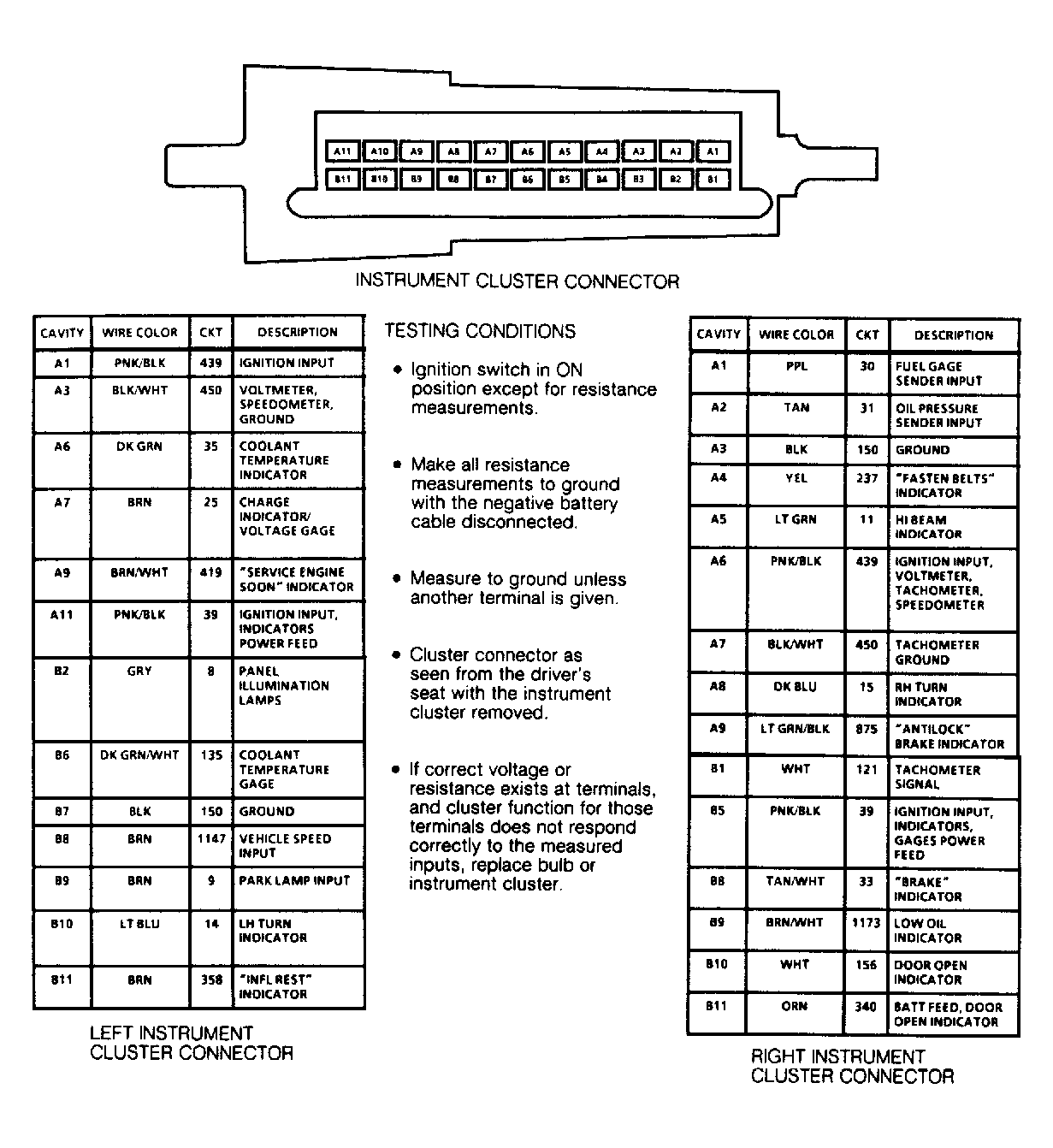

Fig 1: IPC Pinout Testing (Beretta & Corsica)

Courtesy of GENERAL MOTORS CORP.

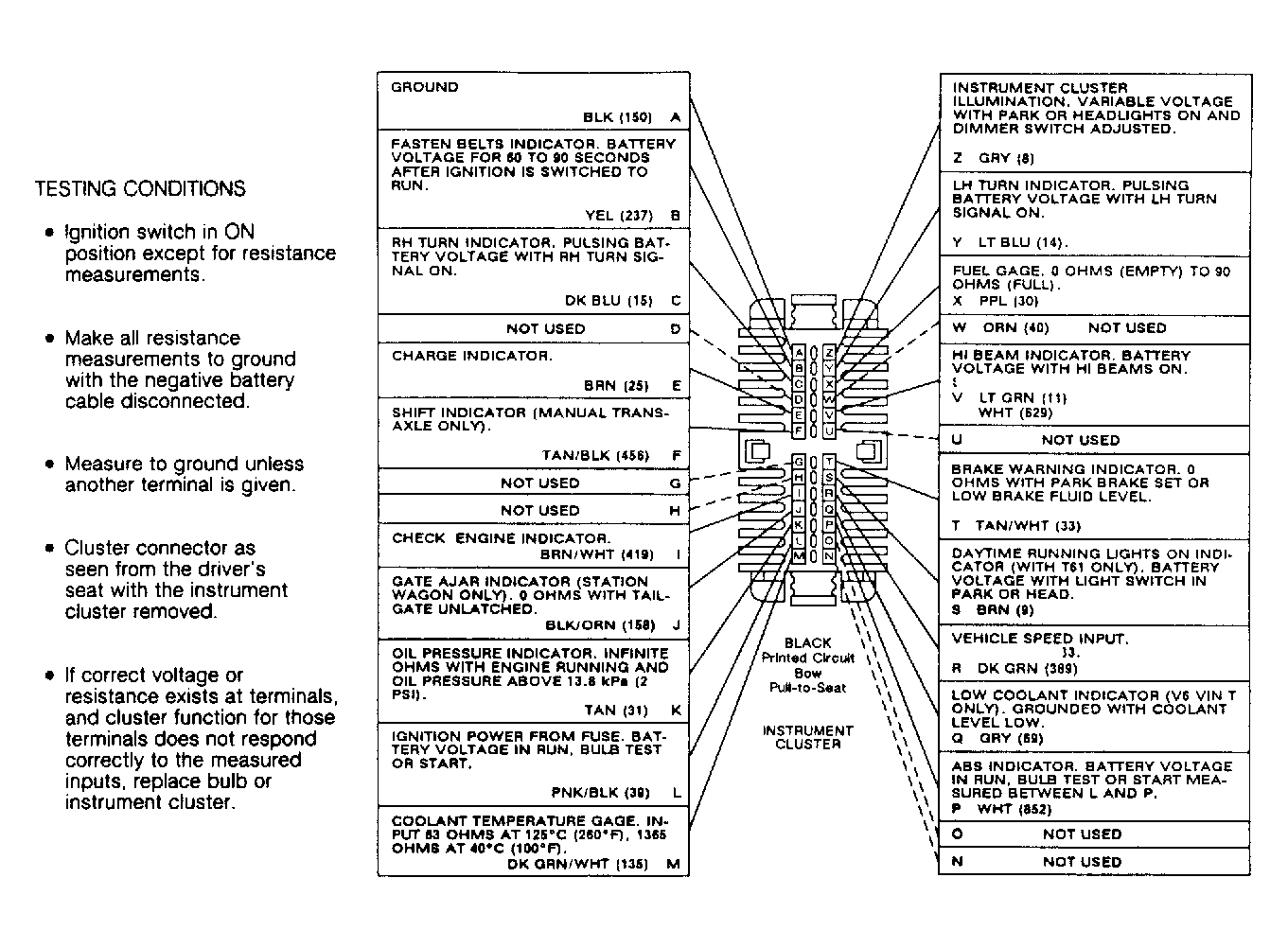

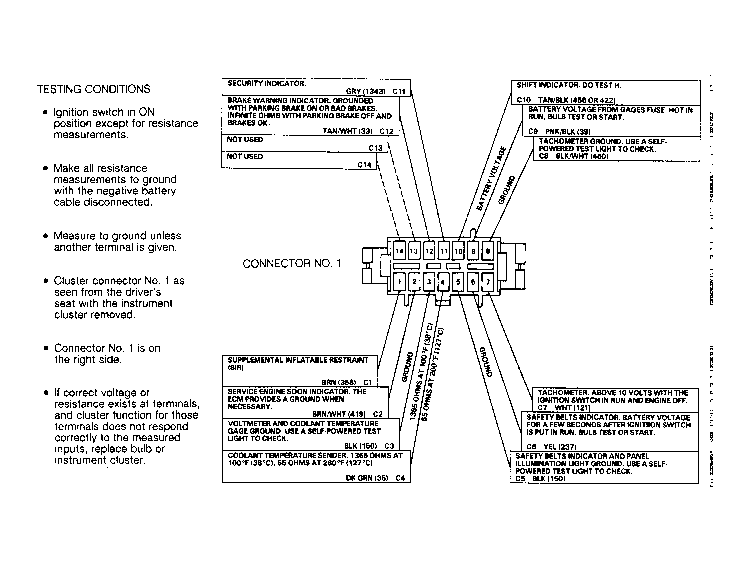

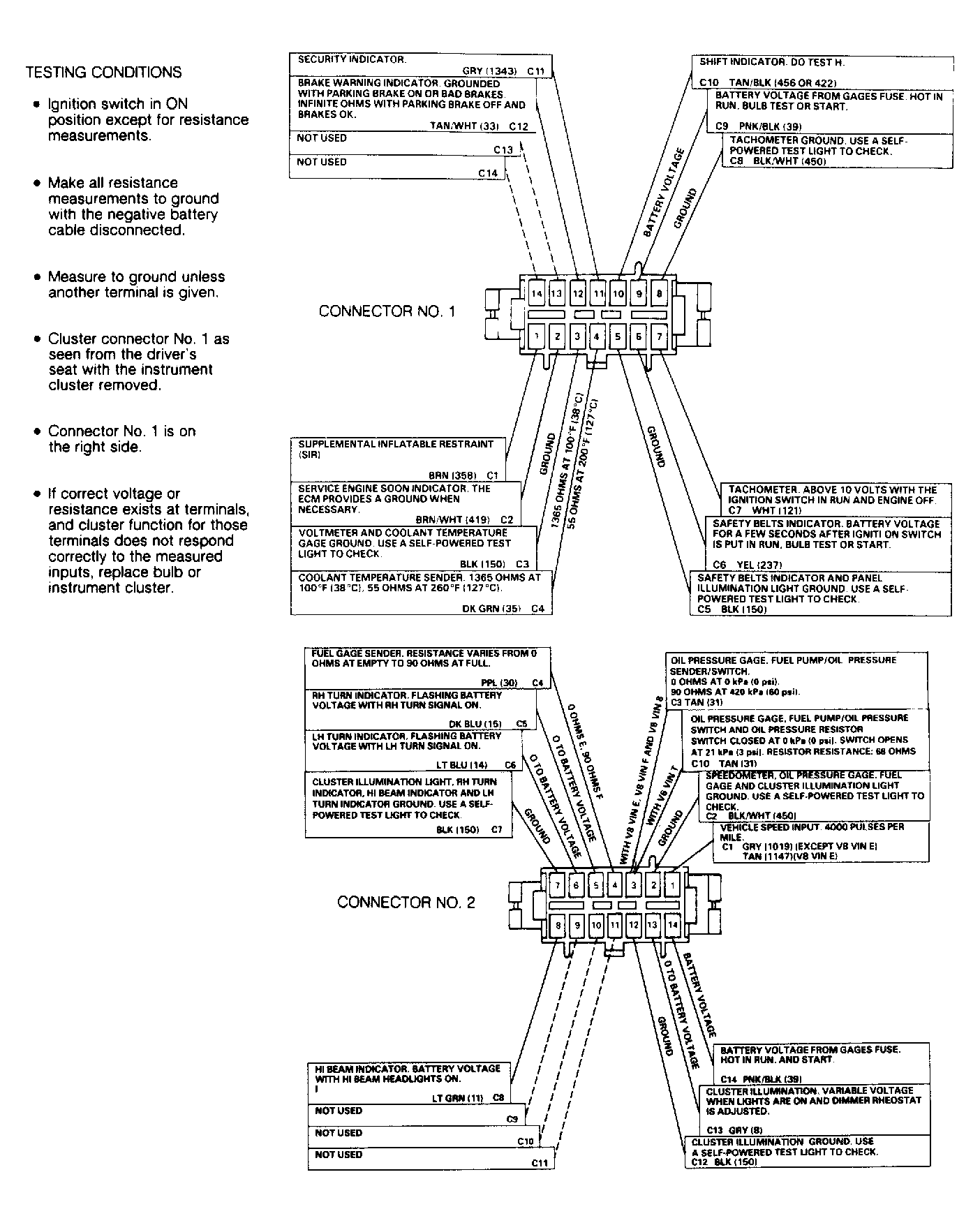

Fig 2: IPC Pinout Testing (Camaro) Connector No. 1

Courtesy of GENERAL MOTORS CORP.

Fig 3: IPC Pinout Testing (Camaro) Connector No. 2

Courtesy of GENERAL MOTORS CORP.

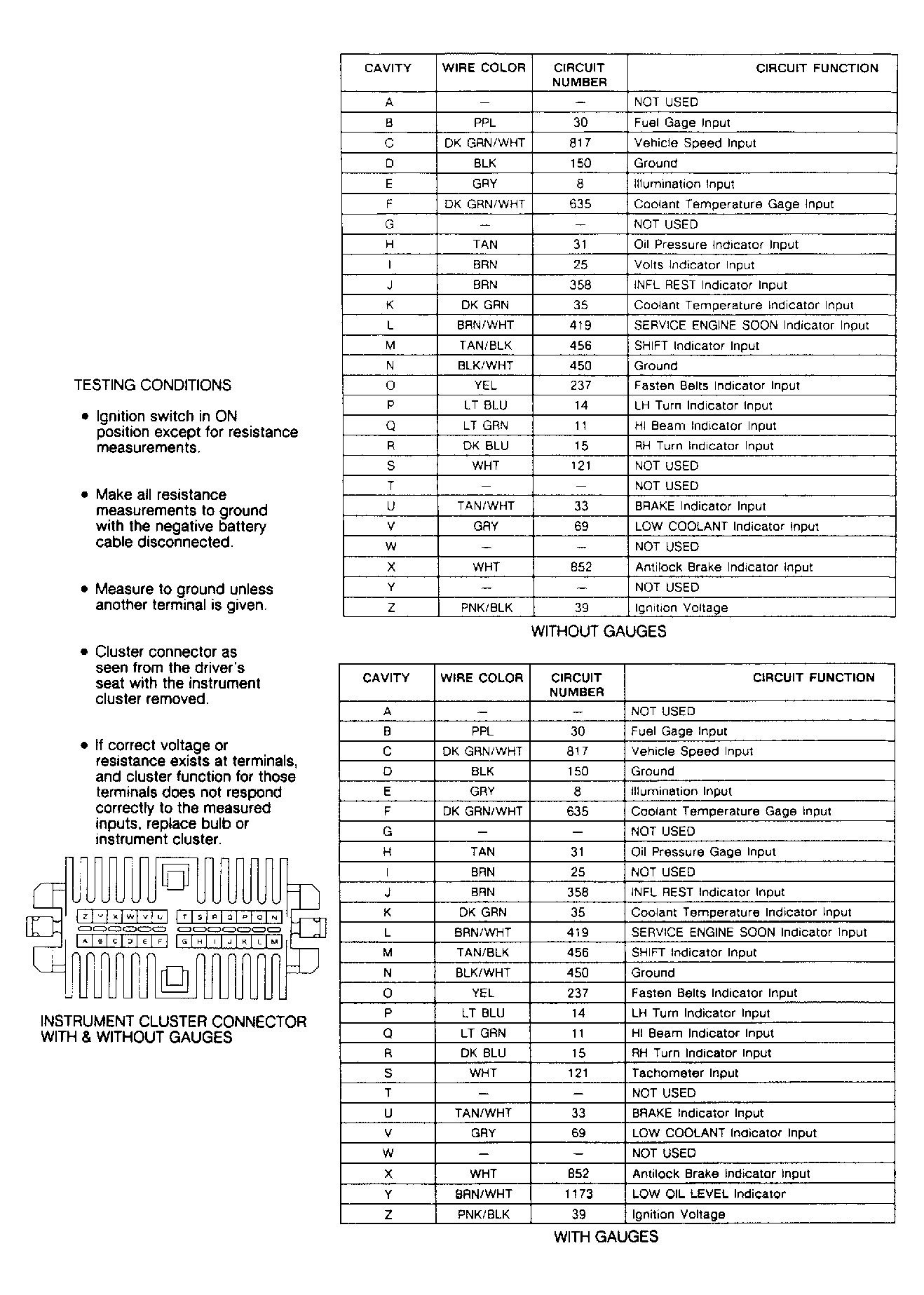

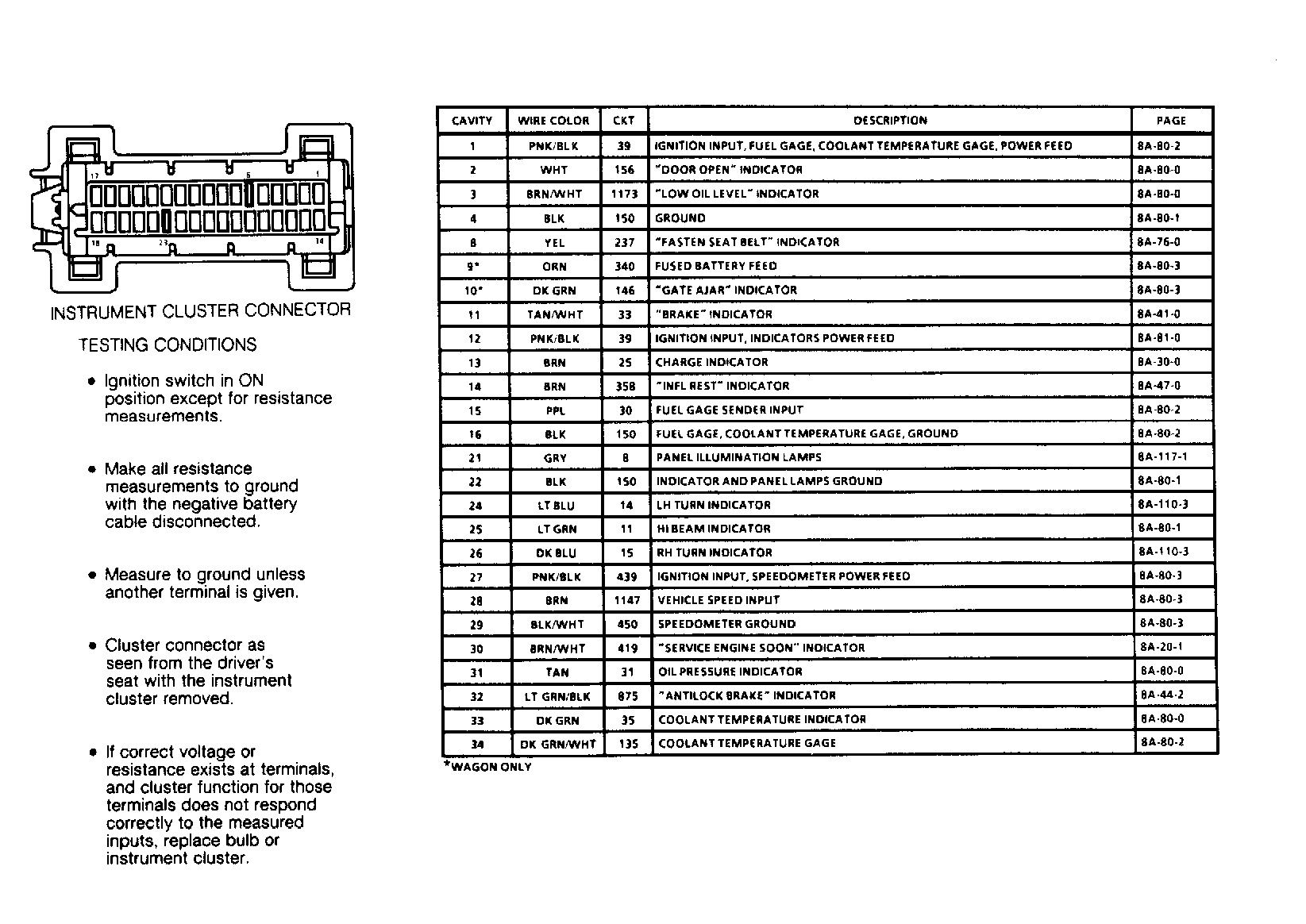

Fig 4: IPC Pinout Testing (Caprice - with Gauges)

Courtesy of GENERAL MOTORS CORP.

Fig 5: IPC Pinout Testing (Caprice - without Gauges)

Courtesy of GENERAL MOTORS CORP.

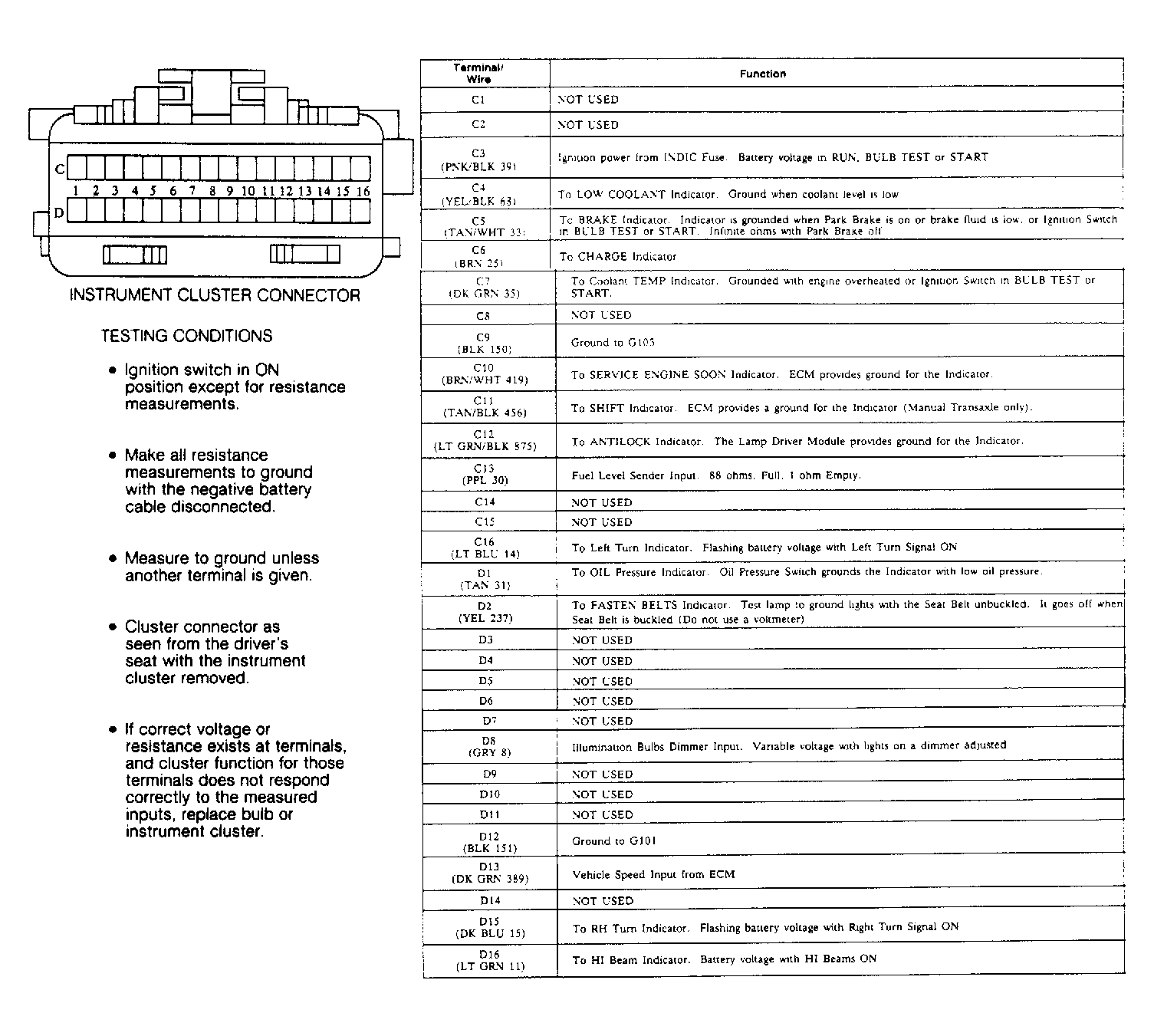

Fig 6: IPC Pinout Testing (Cavalier)

Courtesy of GENERAL MOTORS CORP.

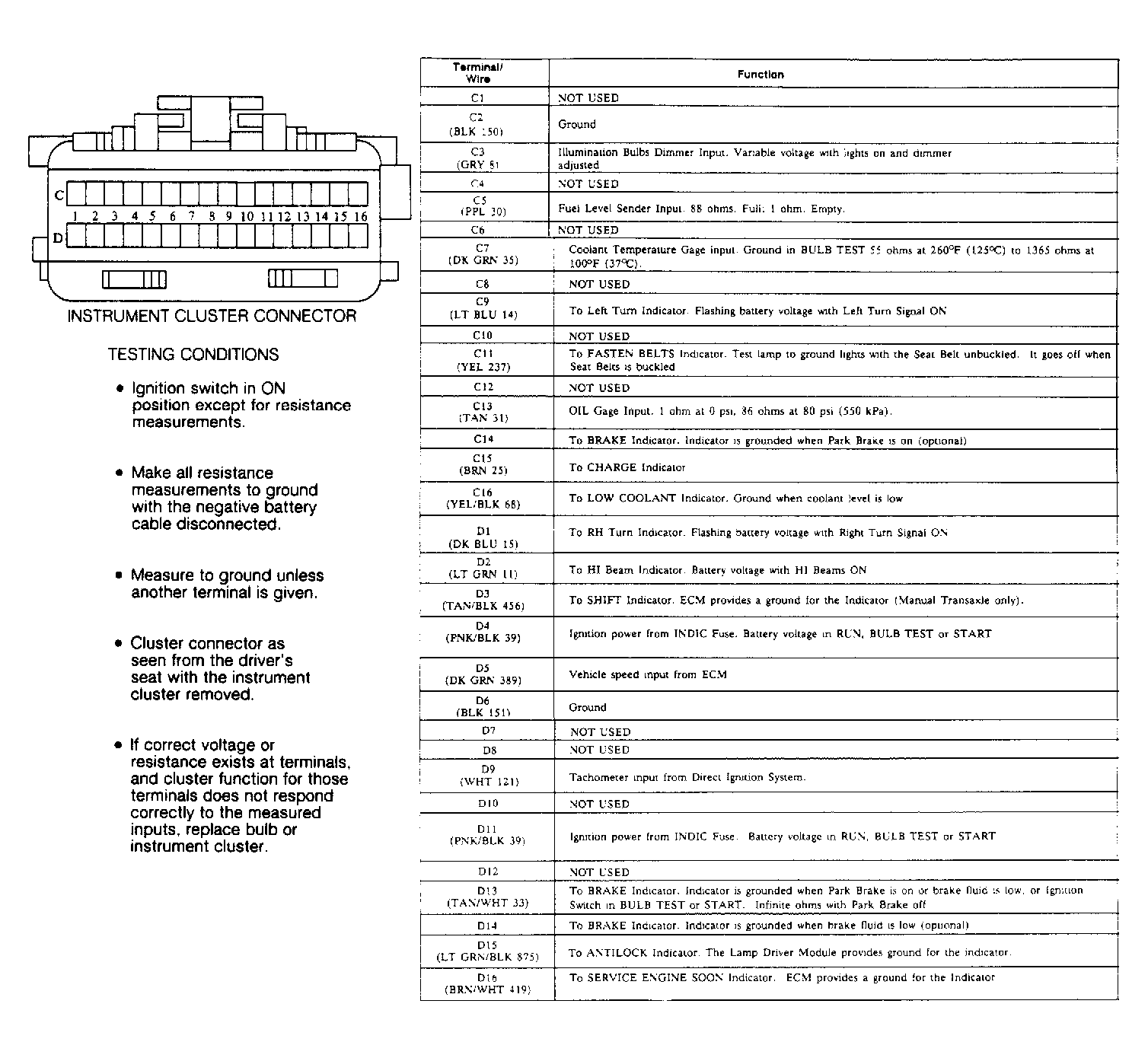

Fig 7: IPC Pinout Testing (Lumina - with Gauges)

Courtesy of GENERAL MOTORS CORP.

Fig 8: IPC Pinout Testing (Lumina - without Gauges)

Courtesy of GENERAL MOTORS CORP.
