Removal & Installation (Lumina)

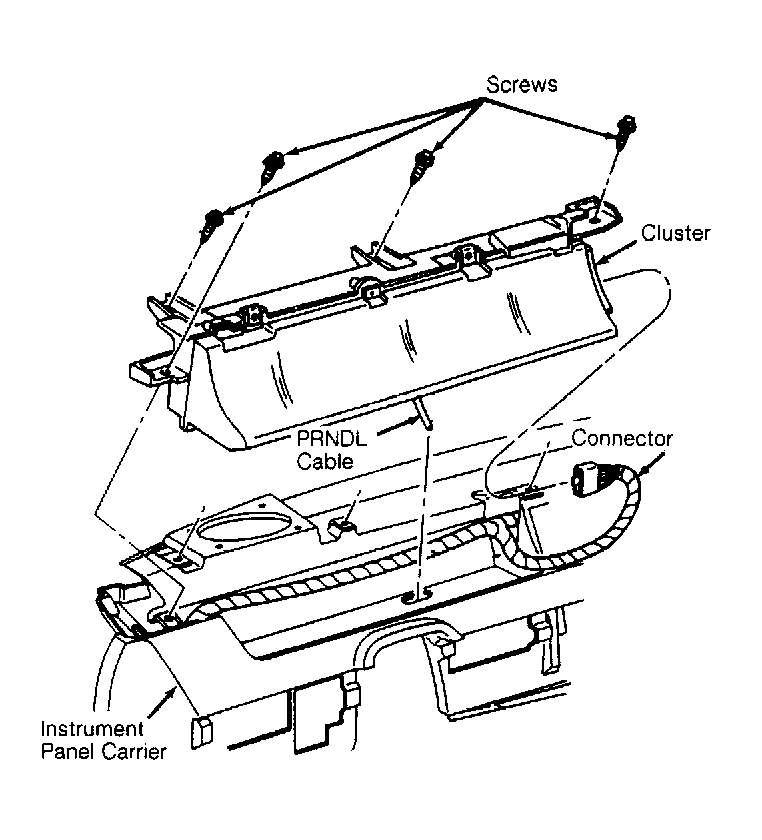

Disconnect negative battery cable. Remove instrument panel pad. Remove 4 cluster-to-dashboard screws. Unplug electrical connectors and remove PRNDL shift indicator cable (if equipped). Remove cluster. To install, reverse removal procedure. See Fig 1 .
