Removal & Installation (Cavalier)

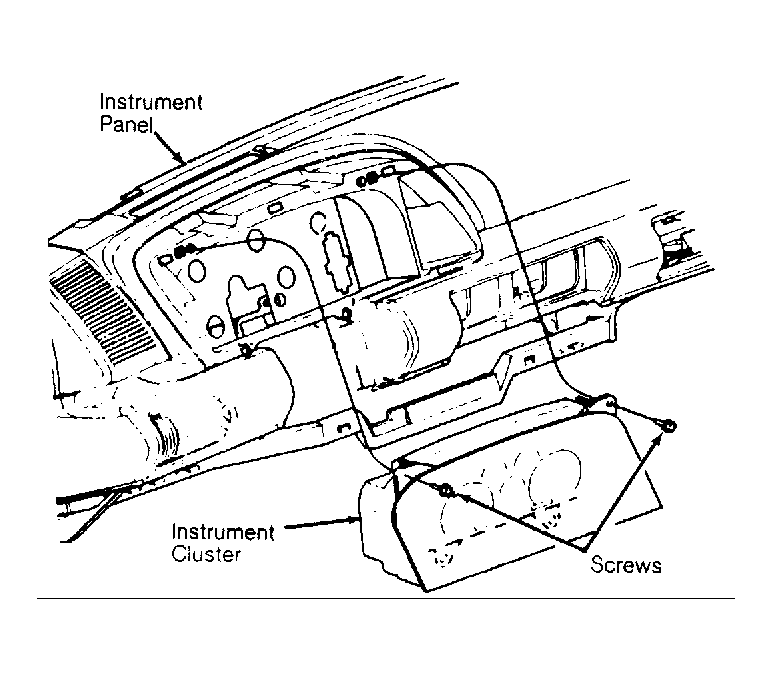

Disconnect negative battery cable. Remove 4 steering column opening filler screws. Remove steering column opening filler. Pull down on steering column and remove 2 screws from bottom of cluster extension. Remove connector from instrument panel dimmer and interior light control switches. Remove 2 screws from top of cluster. Pull cluster rearward to remove. To install, reverse removal procedure. See Fig 1 .
