Removal & Installation (Camaro)

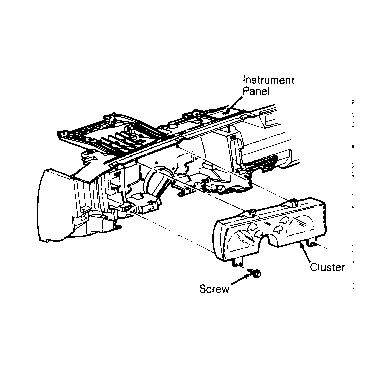

Disconnect negative battery cable. Place ignition switch in LOCK position. Remove IPC trim plate. Remove cluster screws and remove cluster. Remove cluster lens attaching screws and remove cluster lens. See Fig 1 . To install, reverse removal procedure.
