Front & Rear Output Shaft Oil Seals: Reassembly

Ensure seal lips are lubricated with ATF. Install seals with appropriate seal installer. Reverse disassembly procedures for reassembly. Tighten yoke/flange nuts to specification. Refill fluid as necessary. See Fig 1 .

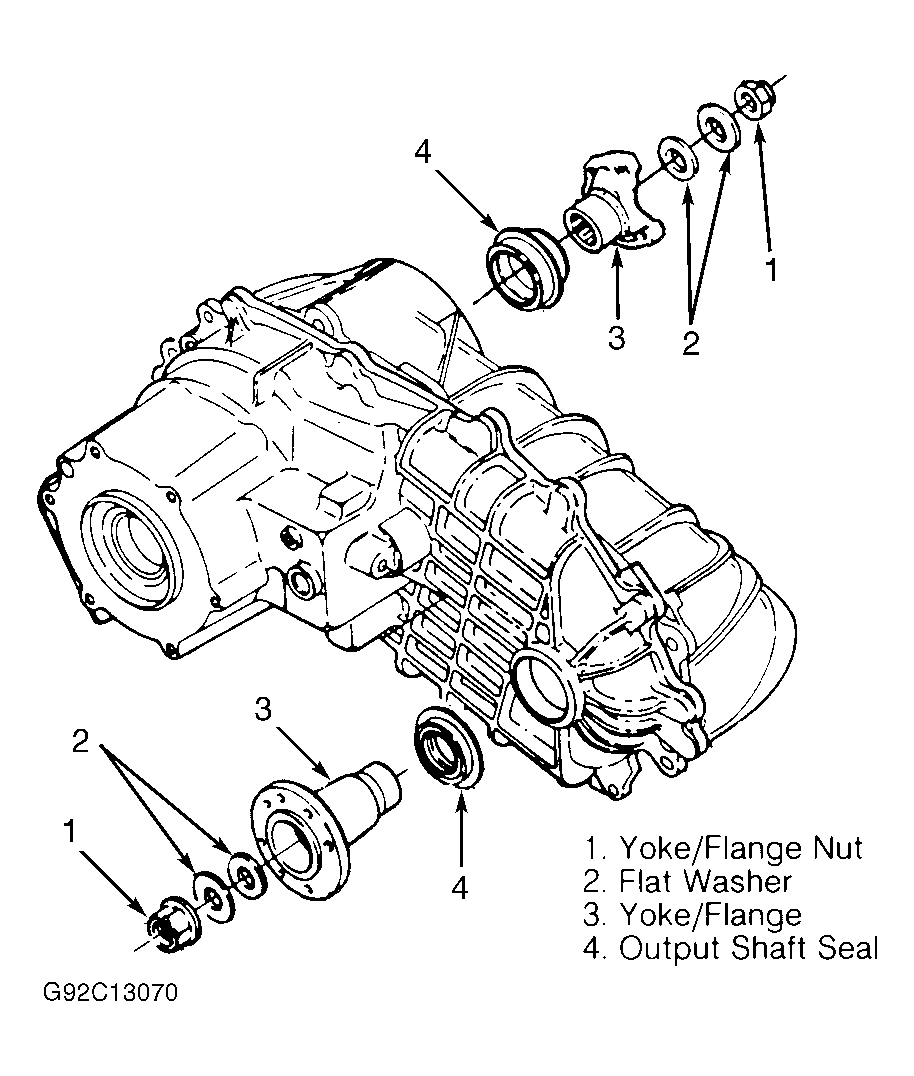

Fig 1: Identifying Output Shaft Seal Components
G92C13070Courtesy of GENERAL MOTORS CORP.
