Oil Pump (4470): Reassembly

  1. Assemble needle bearings to mainshaft. Install pick-up tube and clamp on oil pump body. Install oil pump drive and driven gear into oil pump body.
  2. Install oil pump cover and cover screws to oil pump body. Rotate mainshaft while tightening screws to ensure oil pump turns freely. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .

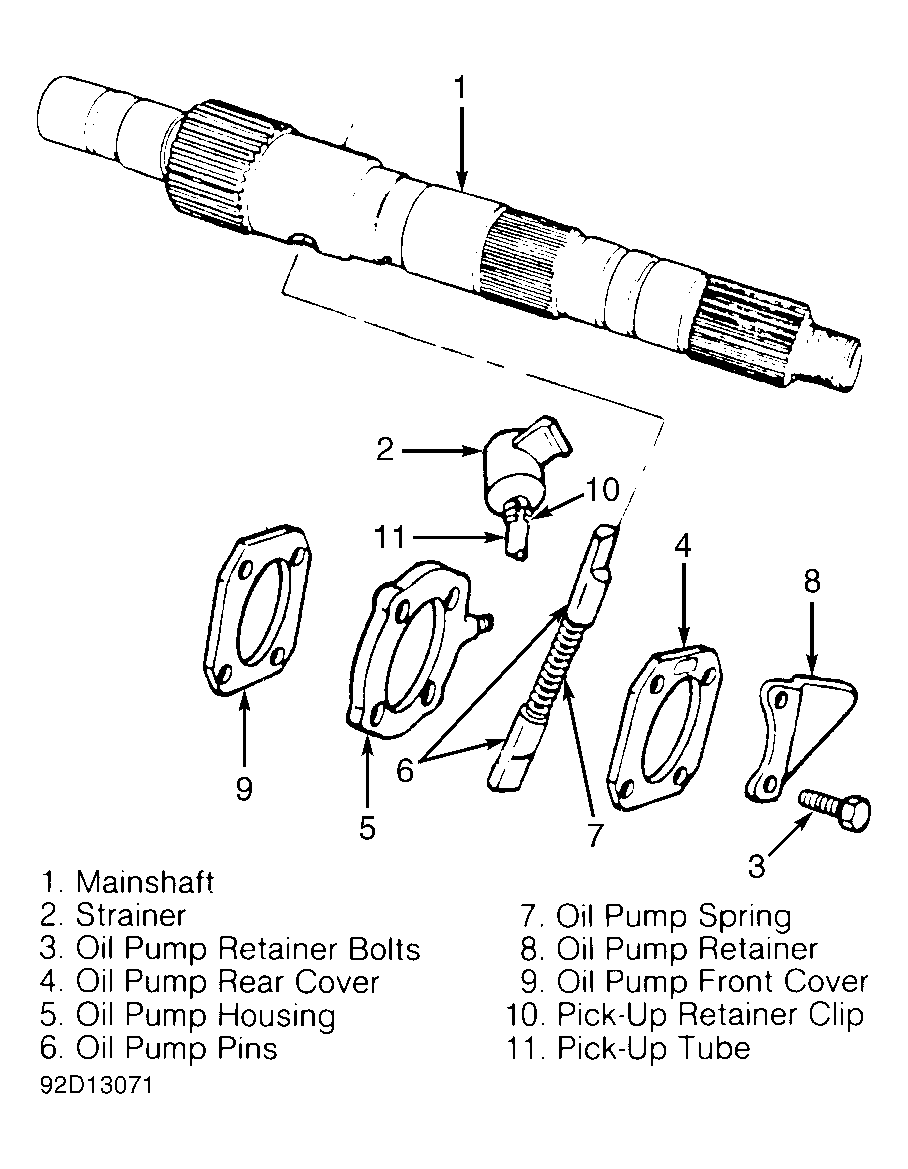

Fig 1: Exploded View Of Borg-Warner 4401 Transfer Case Mainshaft & Oil Pump Assembly
G92D13071Courtesy of GENERAL MOTORS CORP.
