Wheel Bearing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1990 GMC S15 Pickup, 1990 GMC S15 Jimmy, 1990 GMC Pickup, 1990 GMC Cab & Chassis, and 1990 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Front wheel bearings are sealed, pre-adjusted and require no maintenance unless wheel hub and bearing carrier is removed. See REMOVAL & INSTALLATION  .

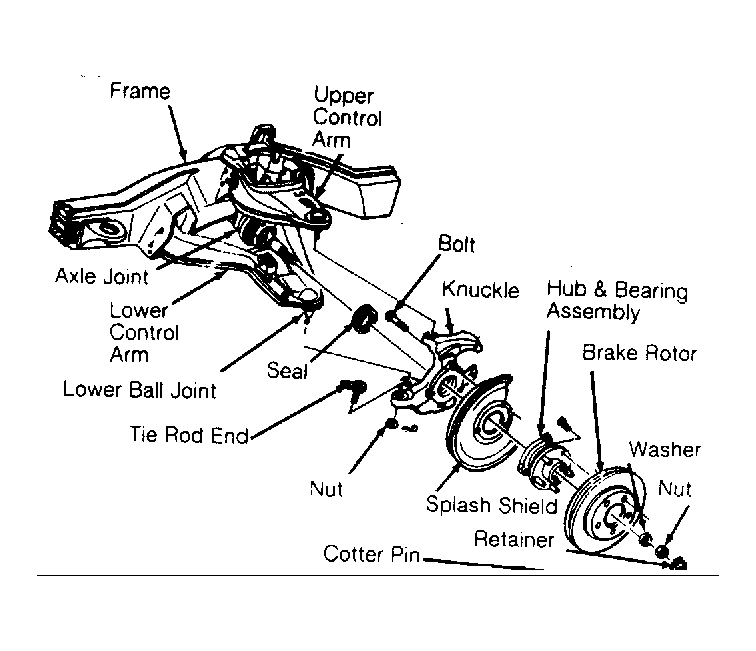

Fig 1: Exploded View of "T" Series Hub & Knuckle Assembly ("K" Series is Similar)
G71328Courtesy of GENERAL MOTORS CORP.
