Code 54: Fuel Pump Circuit (Except 3.1L)

Code 54 will set if the ECM does not see 12 volts on the fuel pump signal voltage monitor during the first 2 seconds after ignition is turned on.

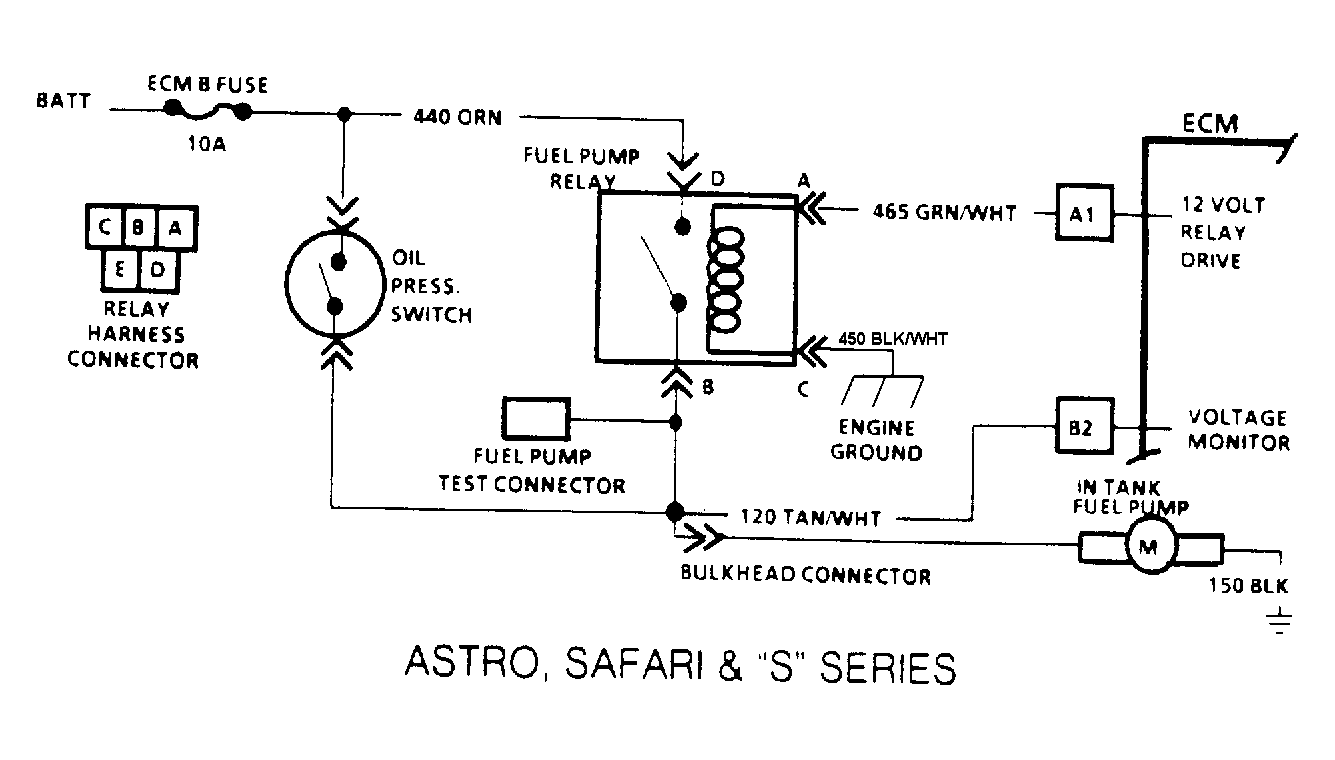

Fig 1: Code 54: Fuel Pump Circuit/Circuit Diagram ("S", "T" & "M" Series)

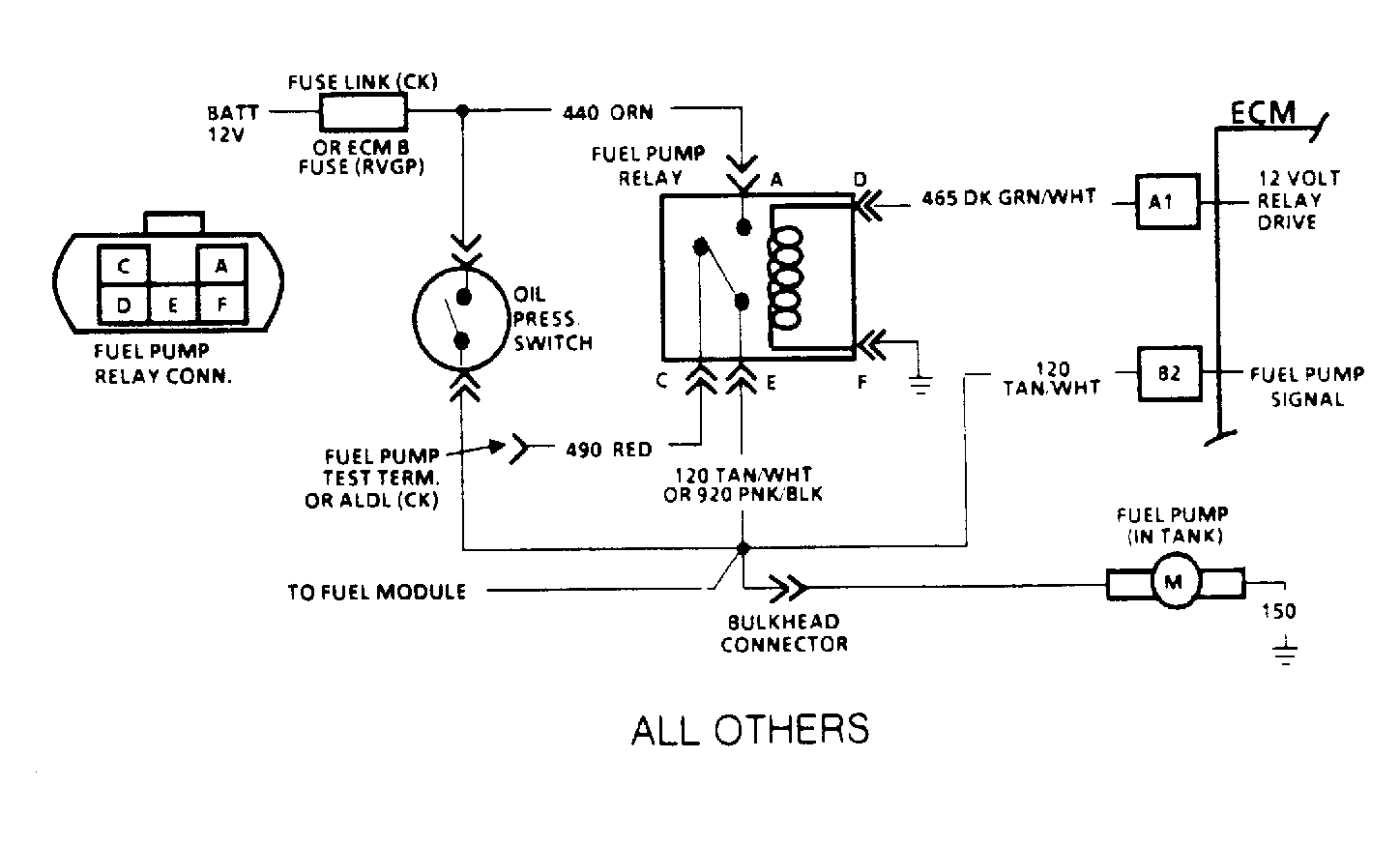

Fig 2: Code 54: Fuel Pump Circuit/Circuit Diagram (All Other Models)

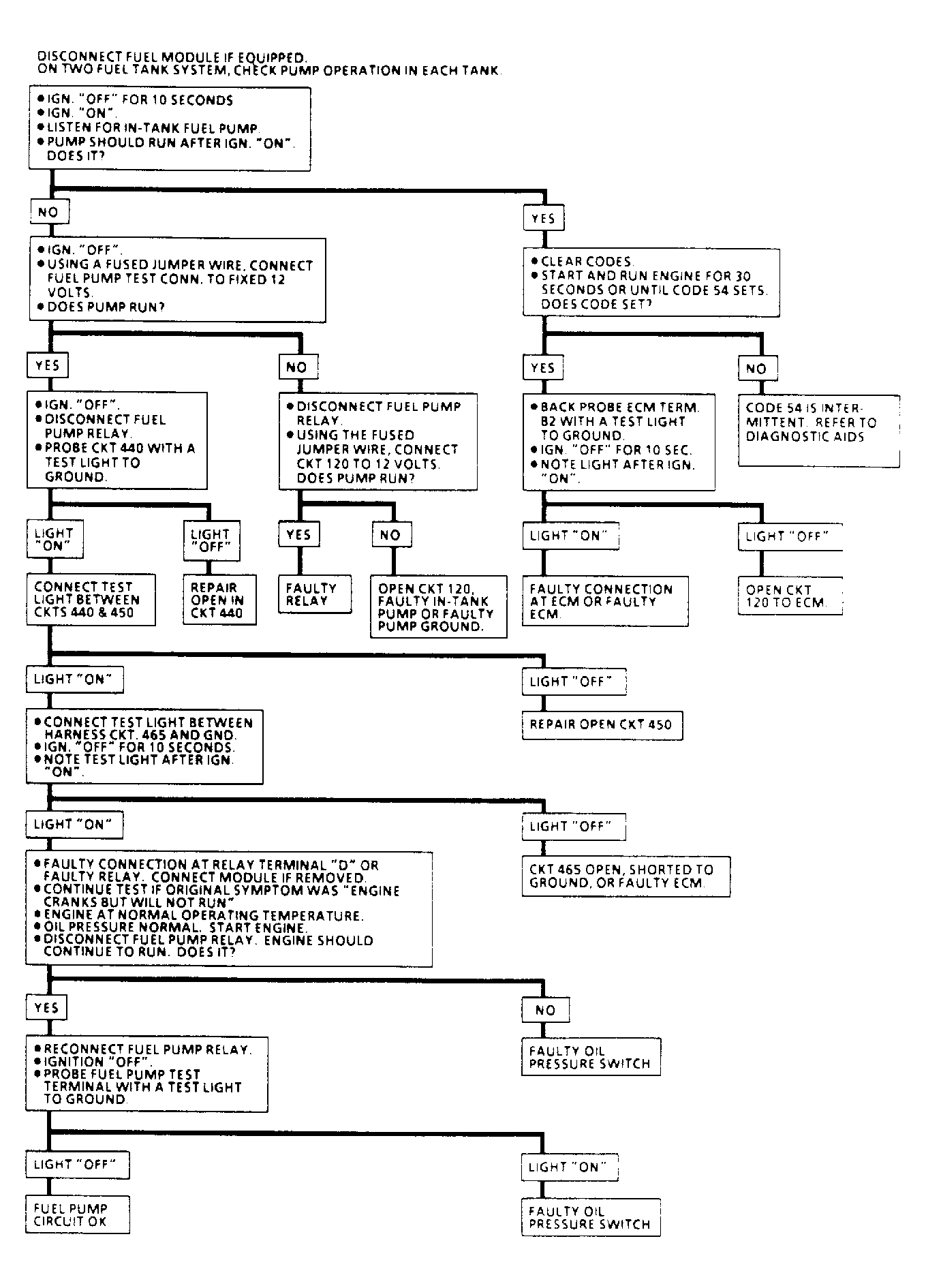

Fig 3: Code 54: Fuel Pump Circuit Flow Chart
