Diagnostic Aids

A faulty or misadjusted Park/Neutral switch may set a false Code 24. Use Scan tester and check for proper signal in Drive, while wiggling shifter. Scan tester MPH reading should closely match dash while vehicle is in motion.

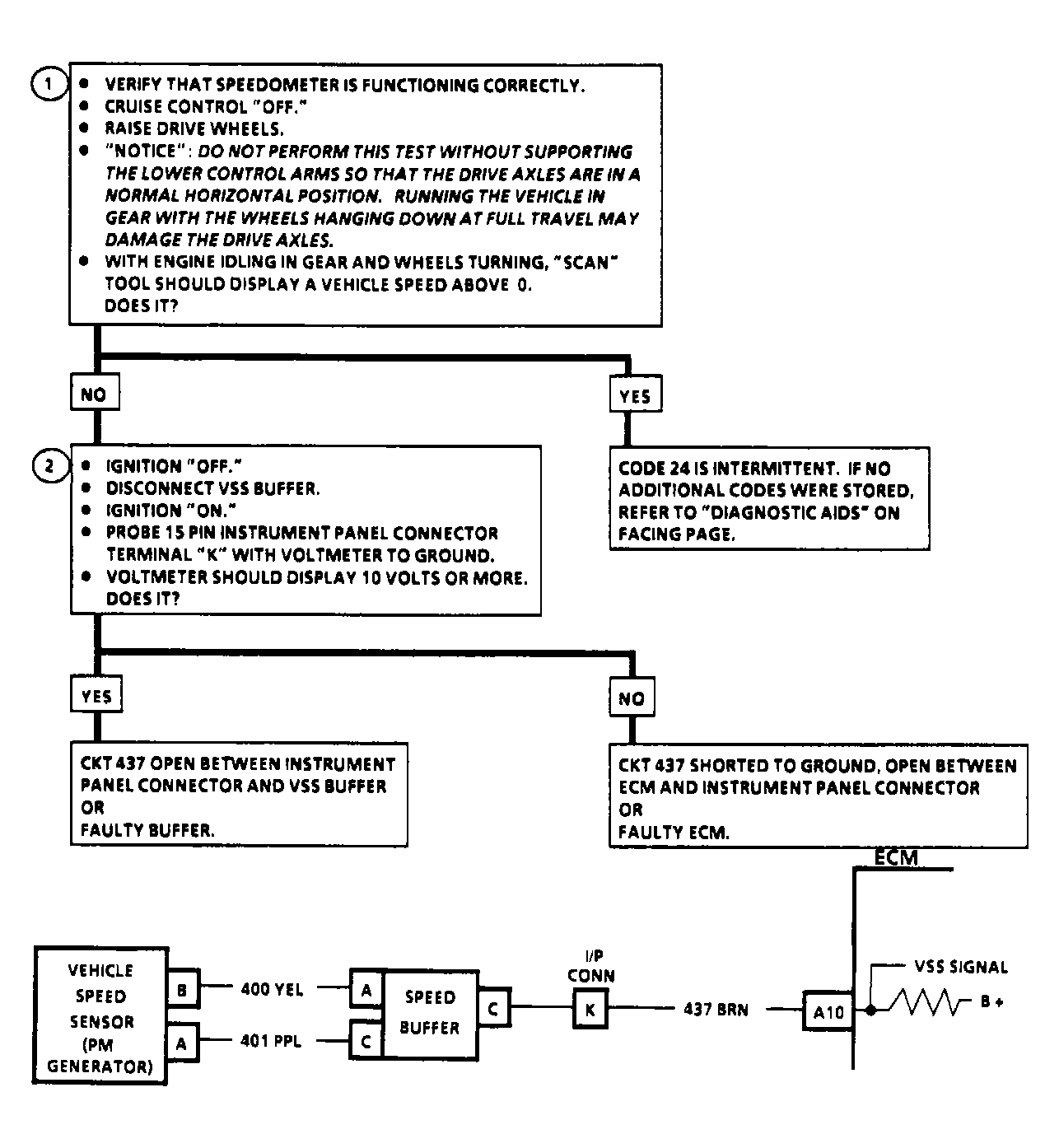

Fig 1: Code 24: Circuit Diagram & Flow Chart VSS Sensor (3.1L)
G90H13968
