Chevrolet
>>
1990
>>
Step Van 7.4 N, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Controls - Tests W/Codes - TBI
>>
Diagnostic Tests
>>
Chart A-5A: Fuel Pump Relay Circuit "R & V" Series
Chart A-5A: Fuel Pump Relay Circuit "R & V" Series

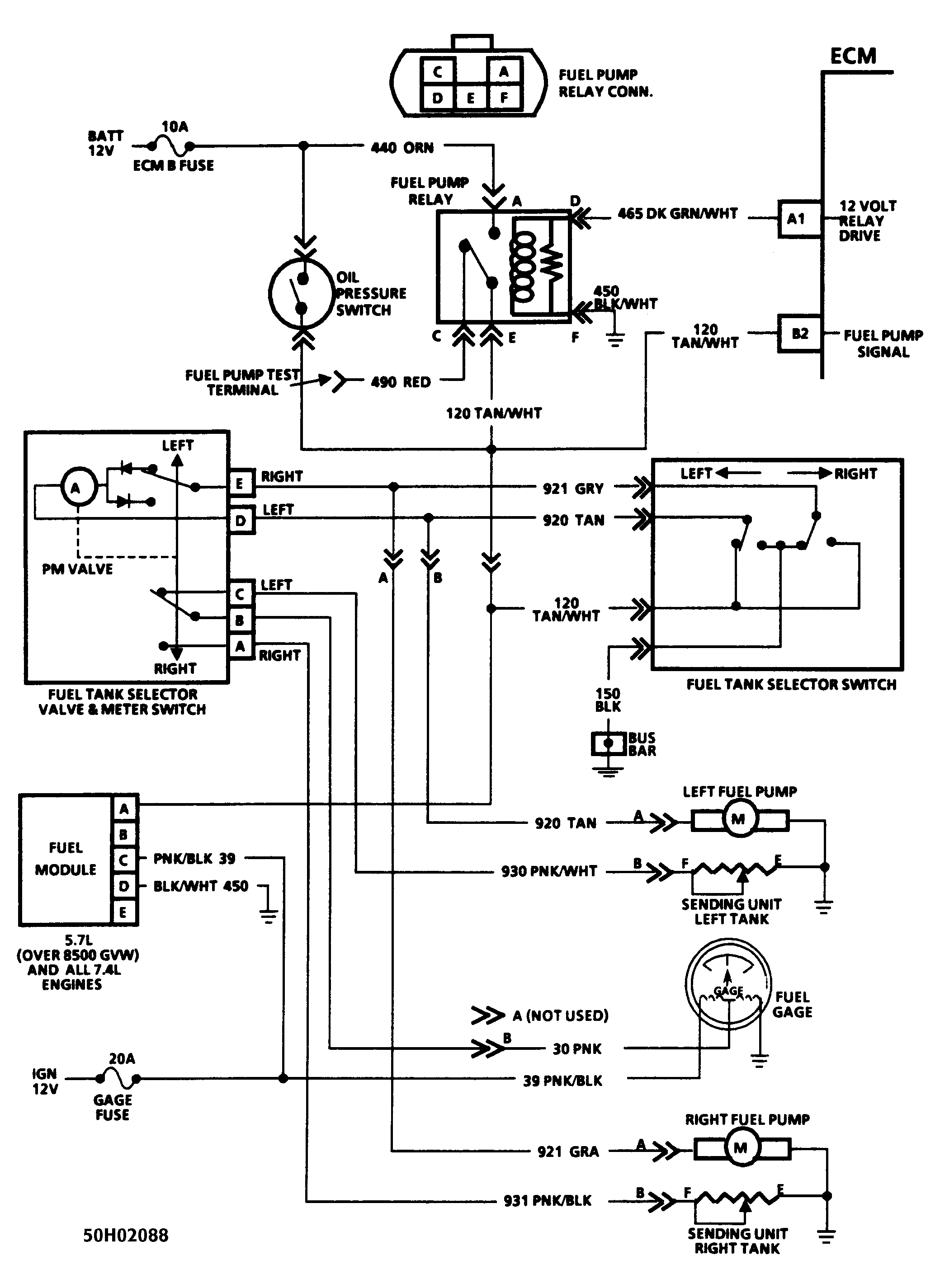

Fig 1: Chart A-5A, Schematic, Fuel Pump Relay Ckt "R & V" Series

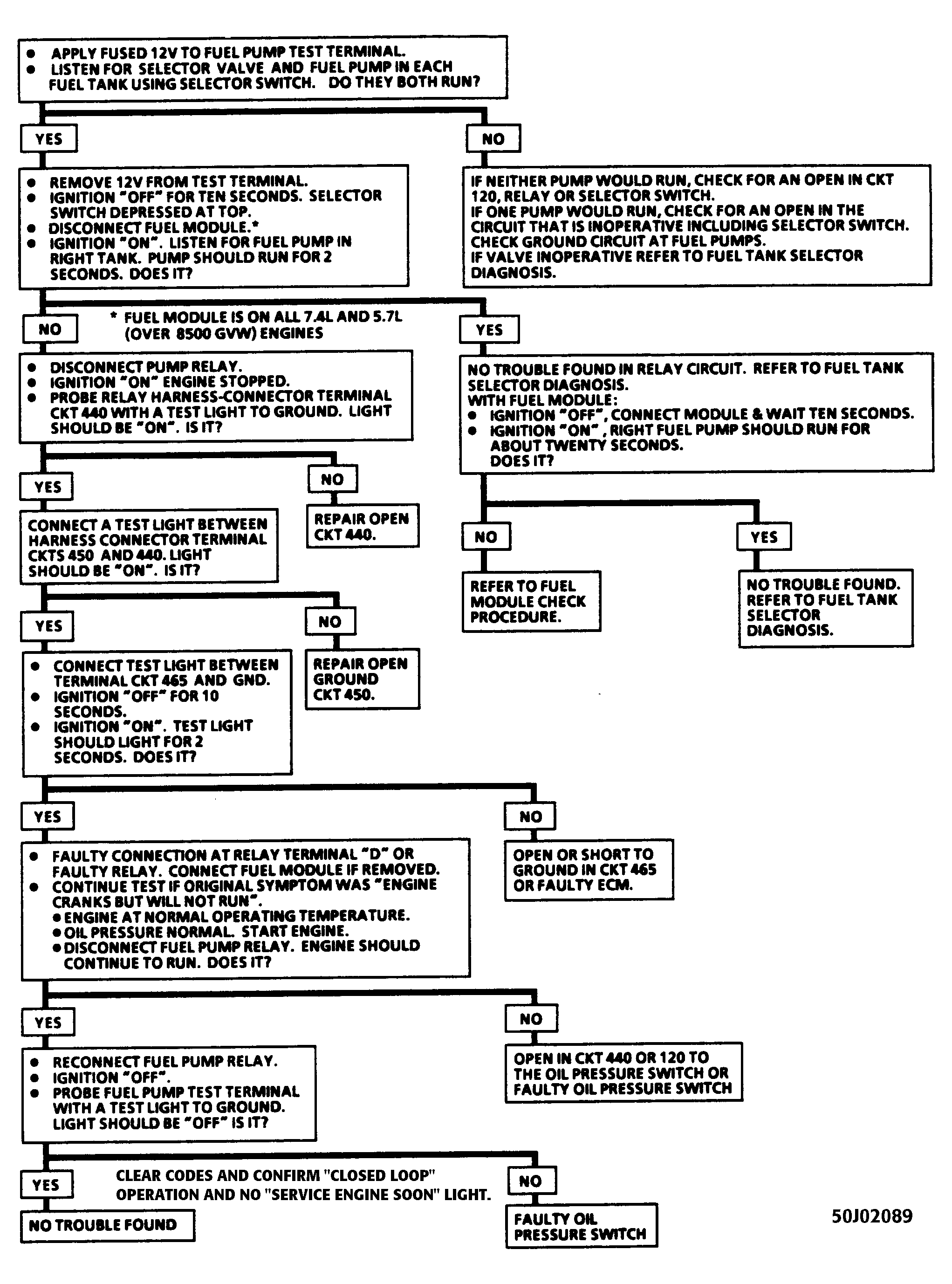

Fig 2: Flow Chart A-5A, Fuel Pump Relay Circuit "R & V" Series
