Wiring Diagrams

NOTE: "P" Series cooling fan wiring diagram not available at time of publication.

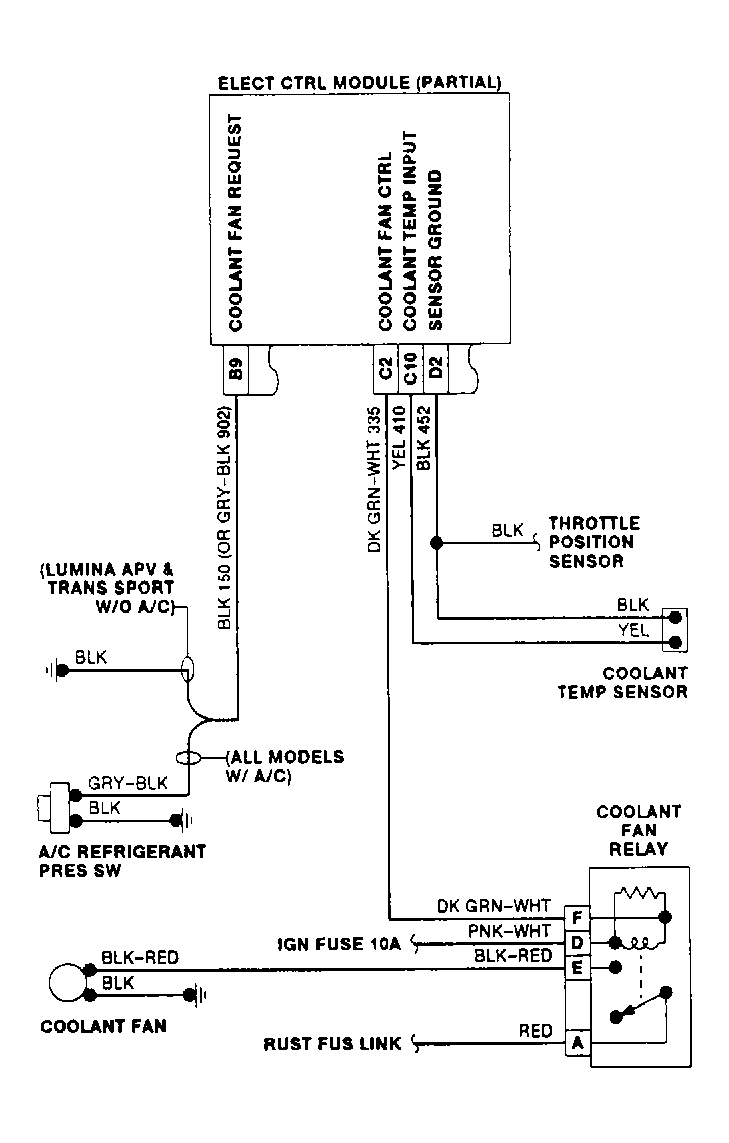

Fig 1: Cooling Fan Wiring Diagram ("U" Series - 3.1L)

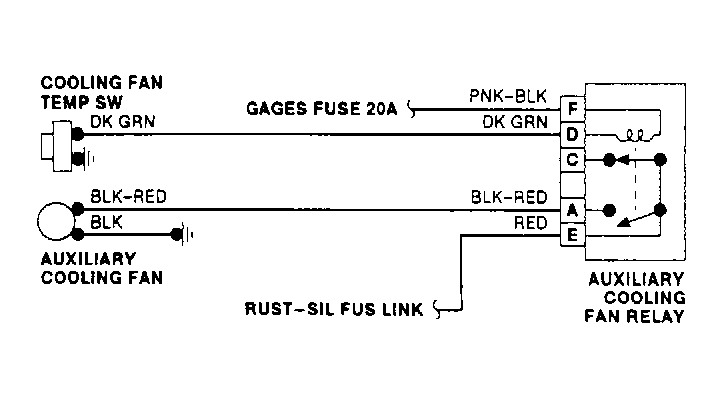

Fig 2: Cooling Fan Wiring Diagram ("G" Series - 7.4L A/C)

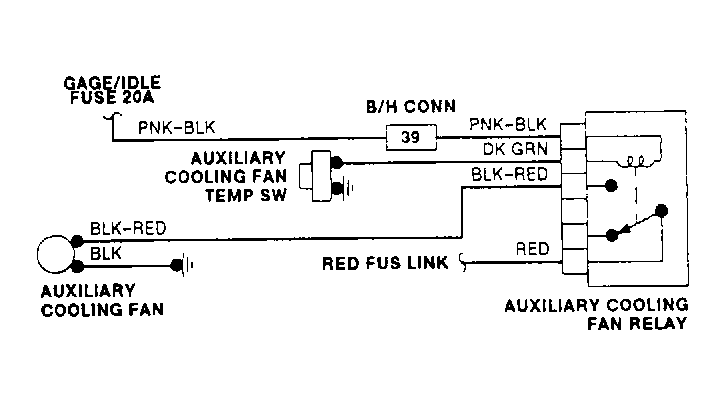

Fig 3: Cooling Fan Wiring Diagram ("R" & "V" Series - 7.4L A/C)
