Speedometer Calibration Specifications
Speedometer Calibration Specifications

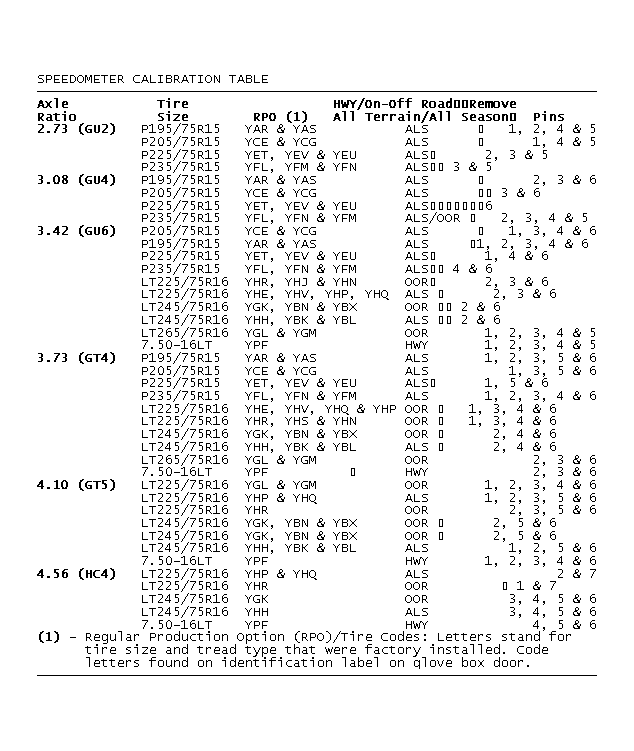

Fig 1: Speedometer Calibration Table
