R & V Series

  1. Remove instrument cluster. See INSTRUMENT CLUSTER .

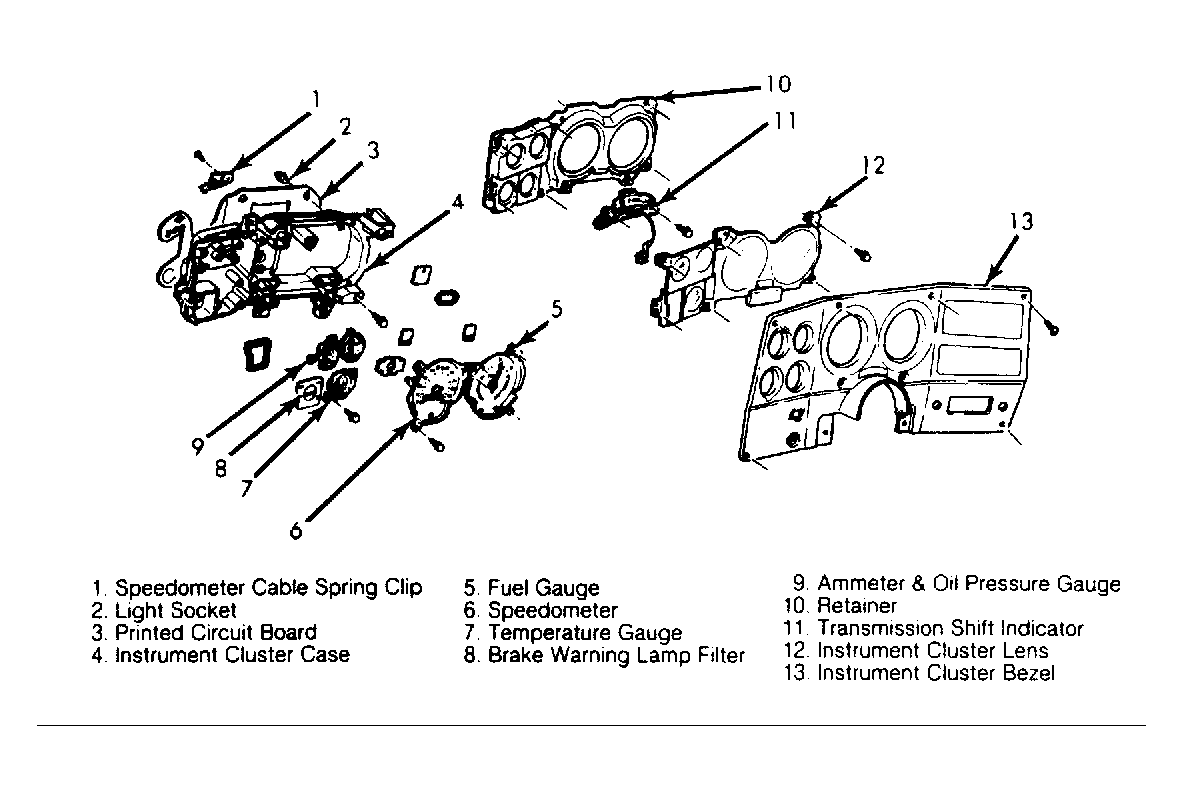

  2. Remove instrument cluster bezel/lens. Remove instrument gauge retainer. Remove speedometer head retaining screws. To install, reverse removal procedure. See Figure.
