G Series

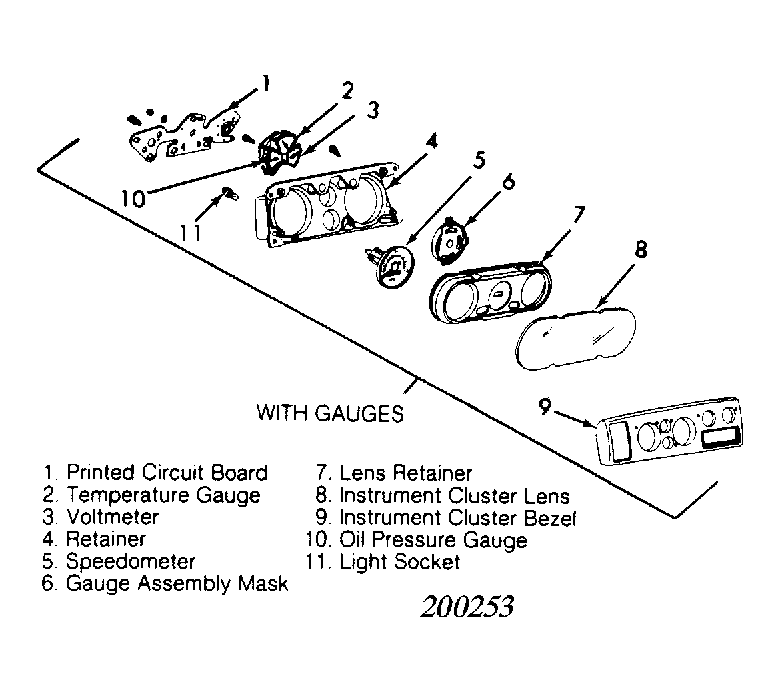

Remove instrument cluster. See INSTRUMENT CLUSTER . Remove speedometer retaining screws. Remove 2 Torx head screws and rubber grommets securing speedometer assembly to cluster cover. Disconnect speedometer cable and remove speedometer. To install, reverse removal procedure. See Figure.
