Astro & Safari

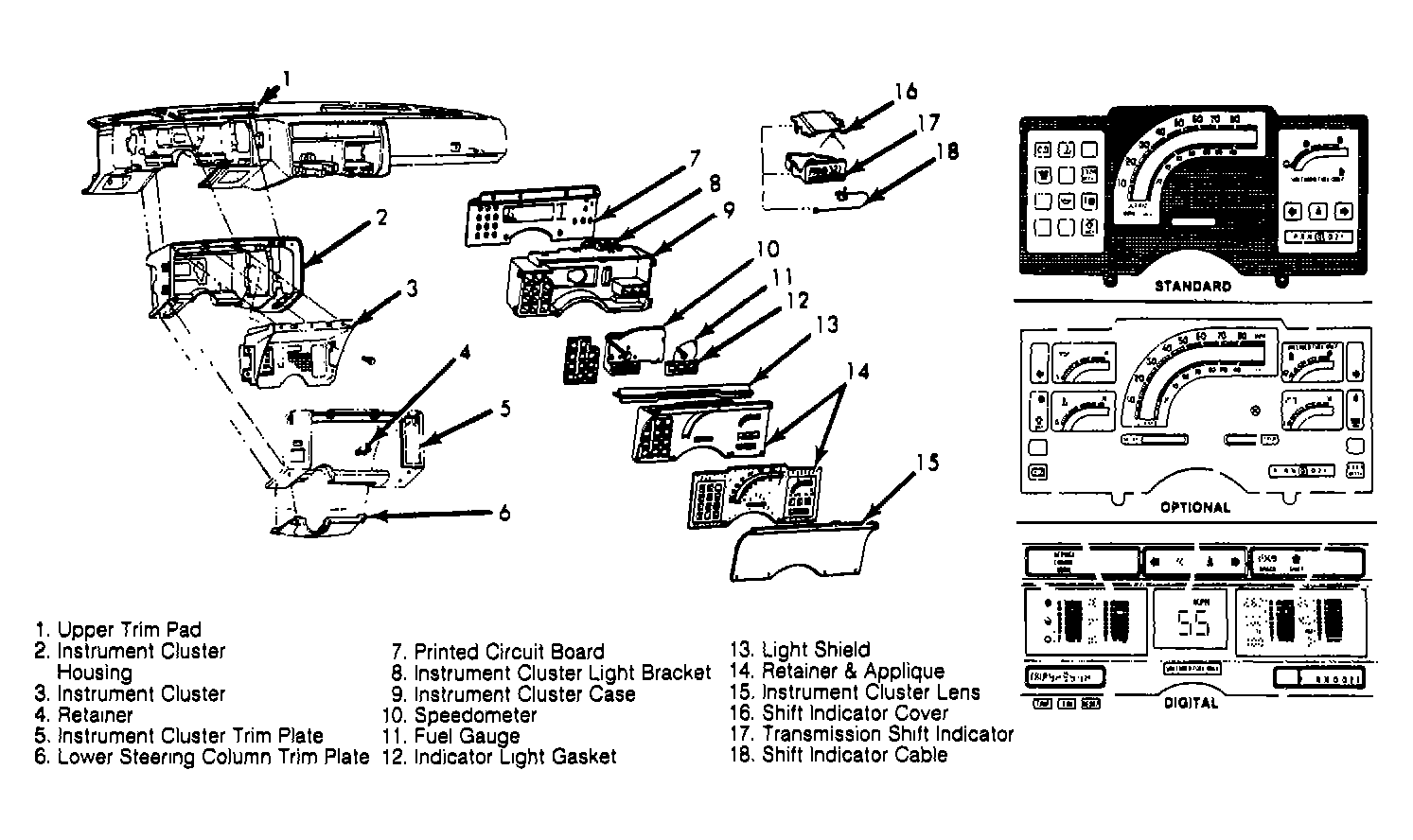

Remove instrument cluster. See INSTRUMENT CLUSTER procedure. Remove lens screws, lens, faceplate/applique and retainer. Remove speedometer retaining screws and speedometer. See Figure. To install, reverse removal procedure.
Remove instrument cluster. See INSTRUMENT CLUSTER procedure. Remove lens screws, lens, faceplate/applique and retainer. Remove speedometer retaining screws and speedometer. See Figure. To install, reverse removal procedure.
