Left Side Gear Clearance

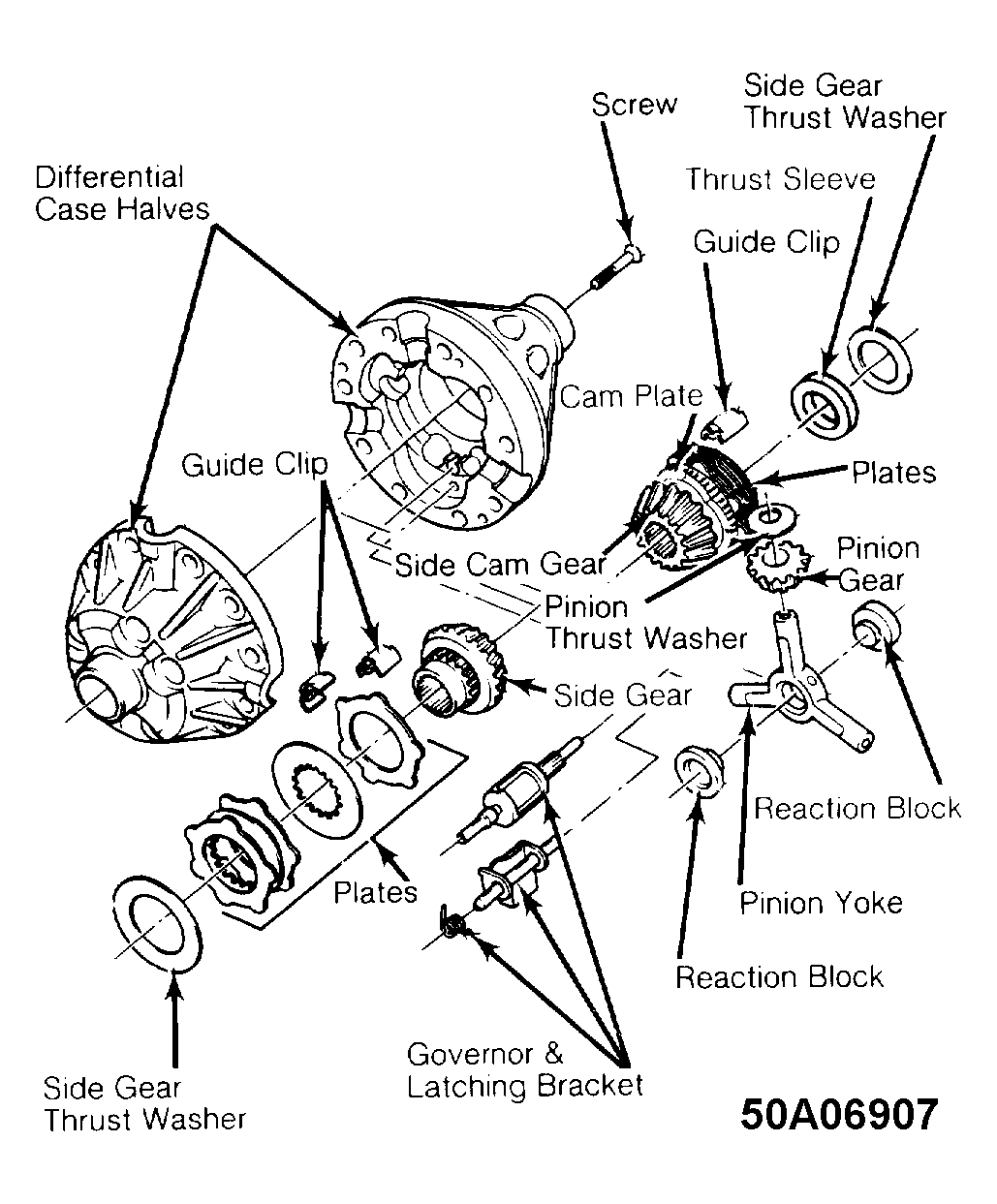

  1. Assemble clutch plates in alternating sequence. See Figure . Use grease to hold guide clips in place, and install guide clips on clutch plates.
  2. Install thrust washer, clutch plates and left side gear in differential case half. Using washers, long bolt and nut, clamp left side gear in differential case.
  3. Install pinion gears and thrust washers on pinion yoke. Install pinion yoke in differential case half. Loosen nut on bolt. Position one pinion gear tooth facing downward (perpendicular to ring gear flange) and tighten nut.
  4. Install dial indicator on ring gear flange, with indicator stem positioned on one tooth of pinion gear. Pull pinion gear against differential case. Rotate pinion gear back and forth and note backlash reading.
  5. Ensure pinion yoke remains seated while checking backlash. Repeat procedure on the remaining pinion gears. Backlash should be .002-.010" (.05-.25 mm).
  6. Change thrust washer thickness to obtain correct backlash. If backlash is greater than specification, use thicker thrust washer. If it is less than specification, use thinner thrust washer.
