Coil Springs & Insulators: Installation

To install coil spring, reverse removal procedure. Ensure coil spring is mounted correctly. See Fig 1 . Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS  .

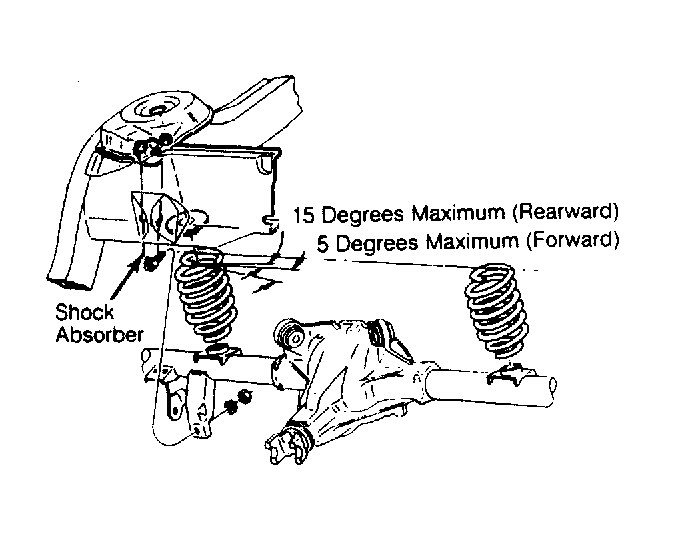

Fig 1: Positioning Rear Coil Spring ("B" Body)

Courtesy of GENERAL MOTORS CORP.

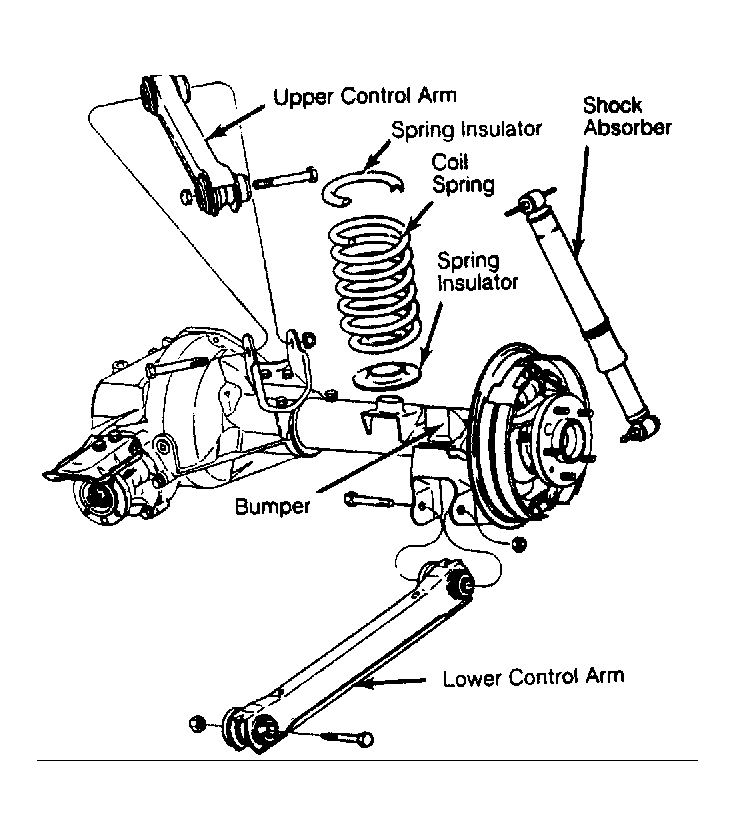

Fig 2: Typical Rear Suspension

Courtesy of GENERAL MOTORS CORP.
