Propshaft Runout Specifications

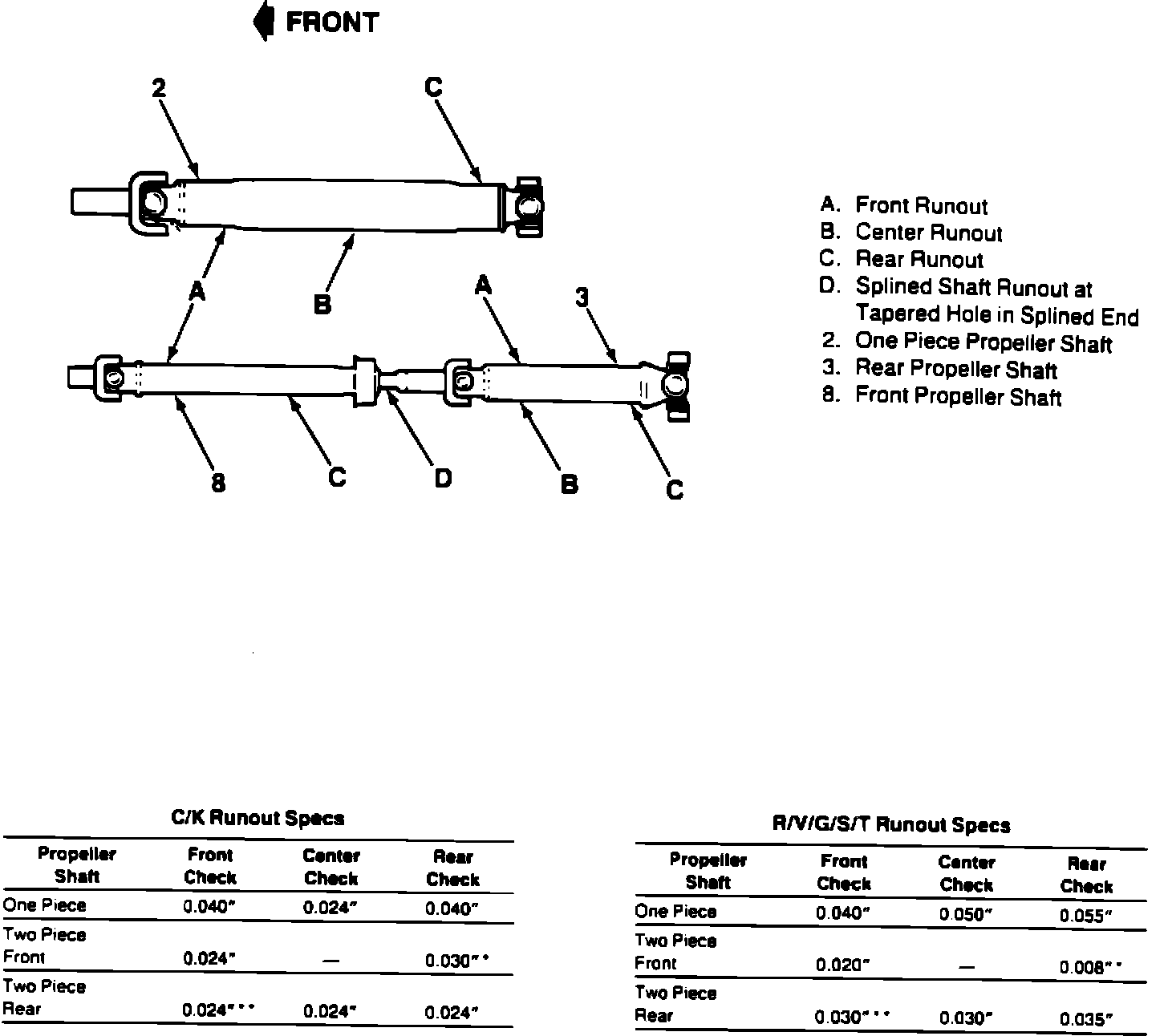

Figure 1:

Figure 1:

*IMPORTANT: This measurement must be taken at the tapered hole on the splined shaft after the rear propeller shaft is removed.

**IMPORTANT: This measurement must be taken with the rear propeller shaft mounted on the front shaft which is within specifications.
