Home >> Chevrolet >> 1989 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Application and ID >> Axle Code and Gear Ratio Identification

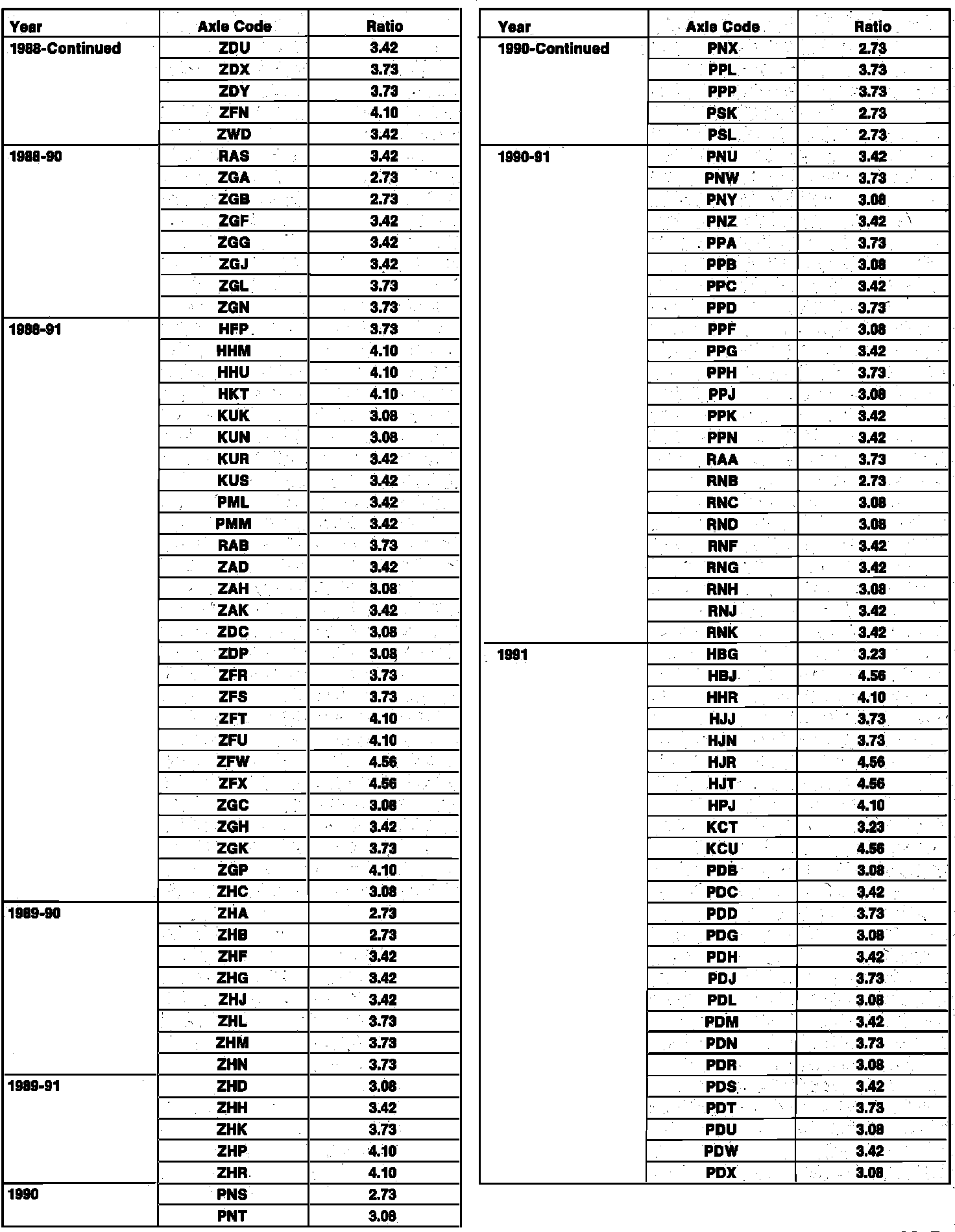

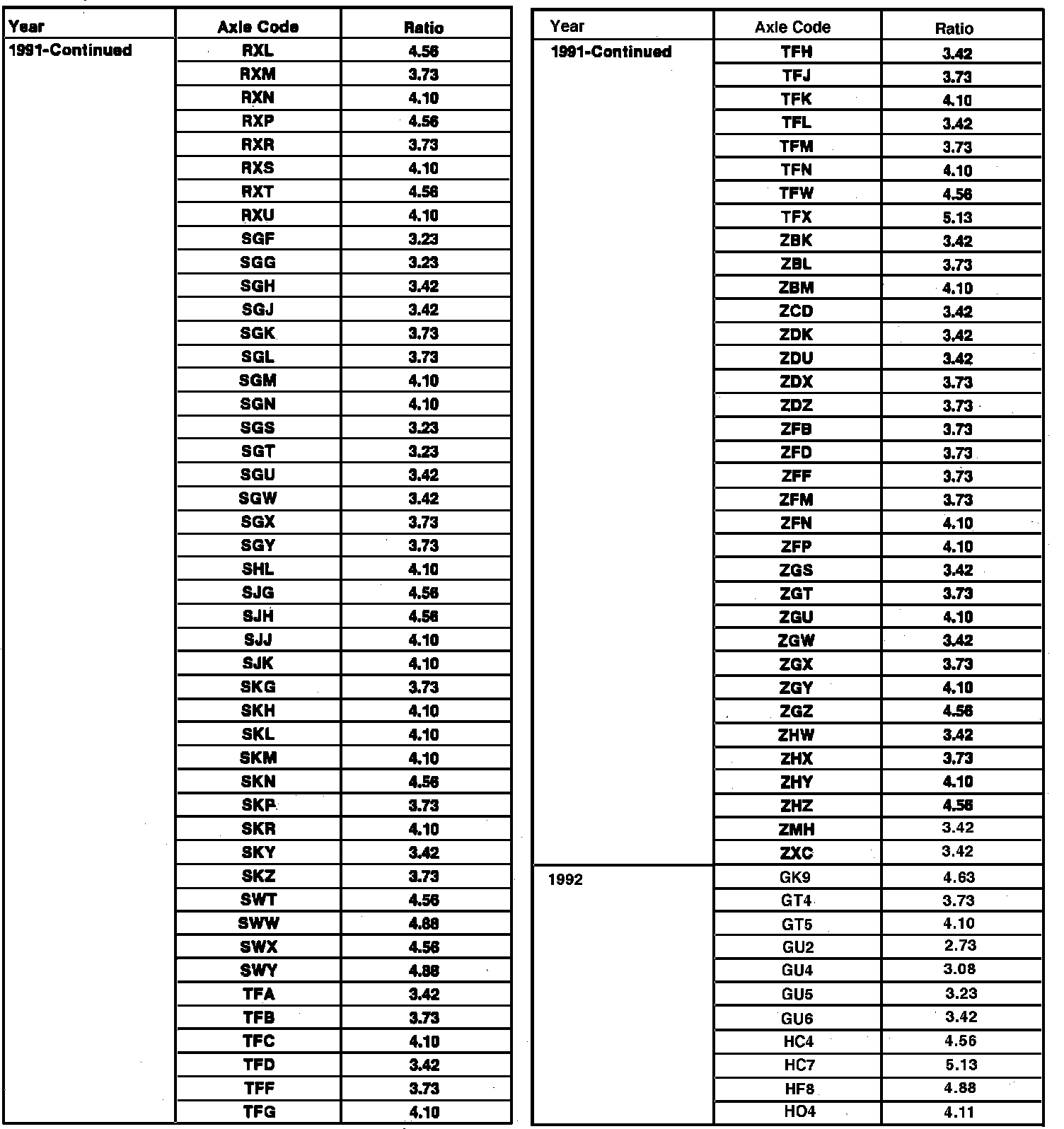

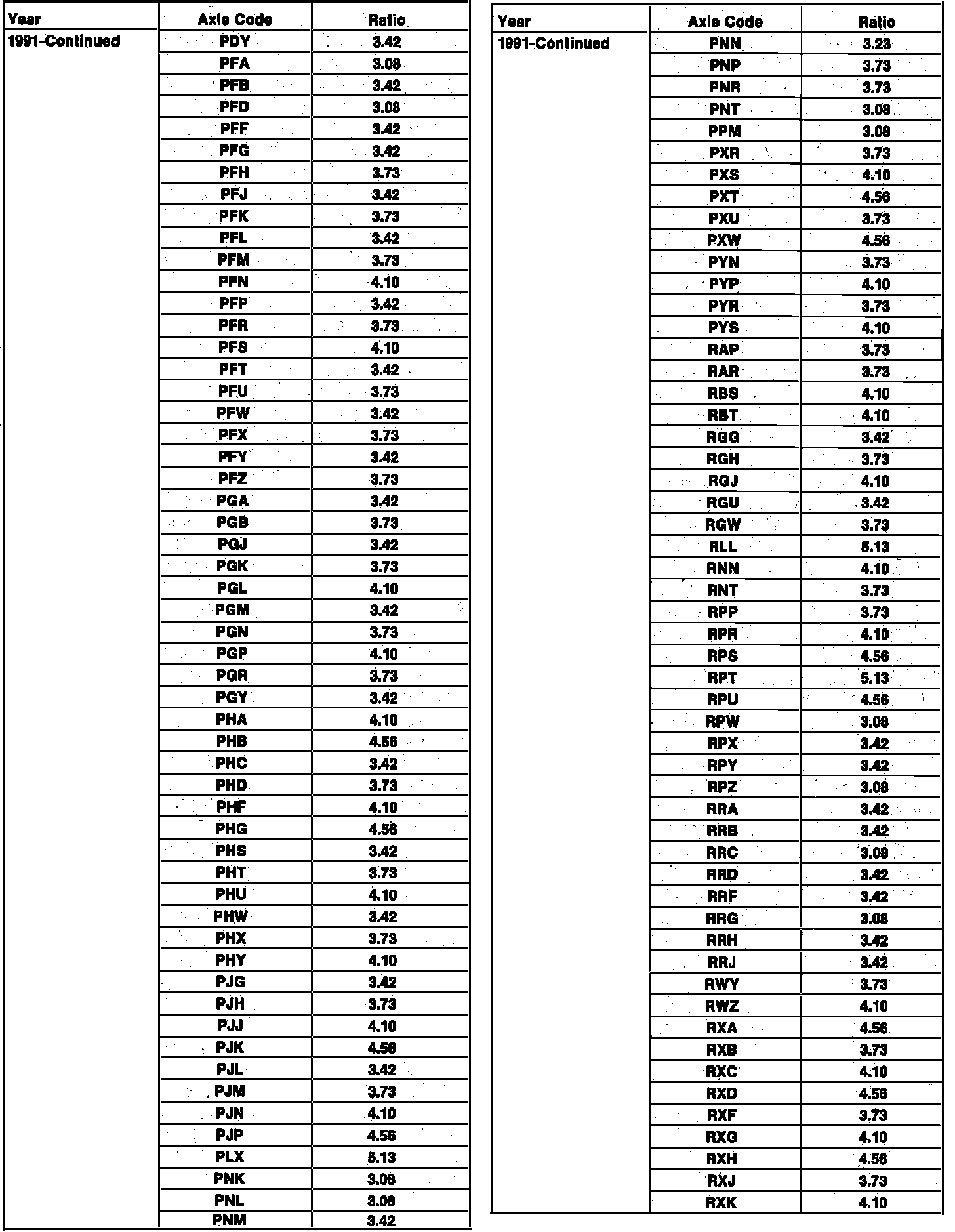

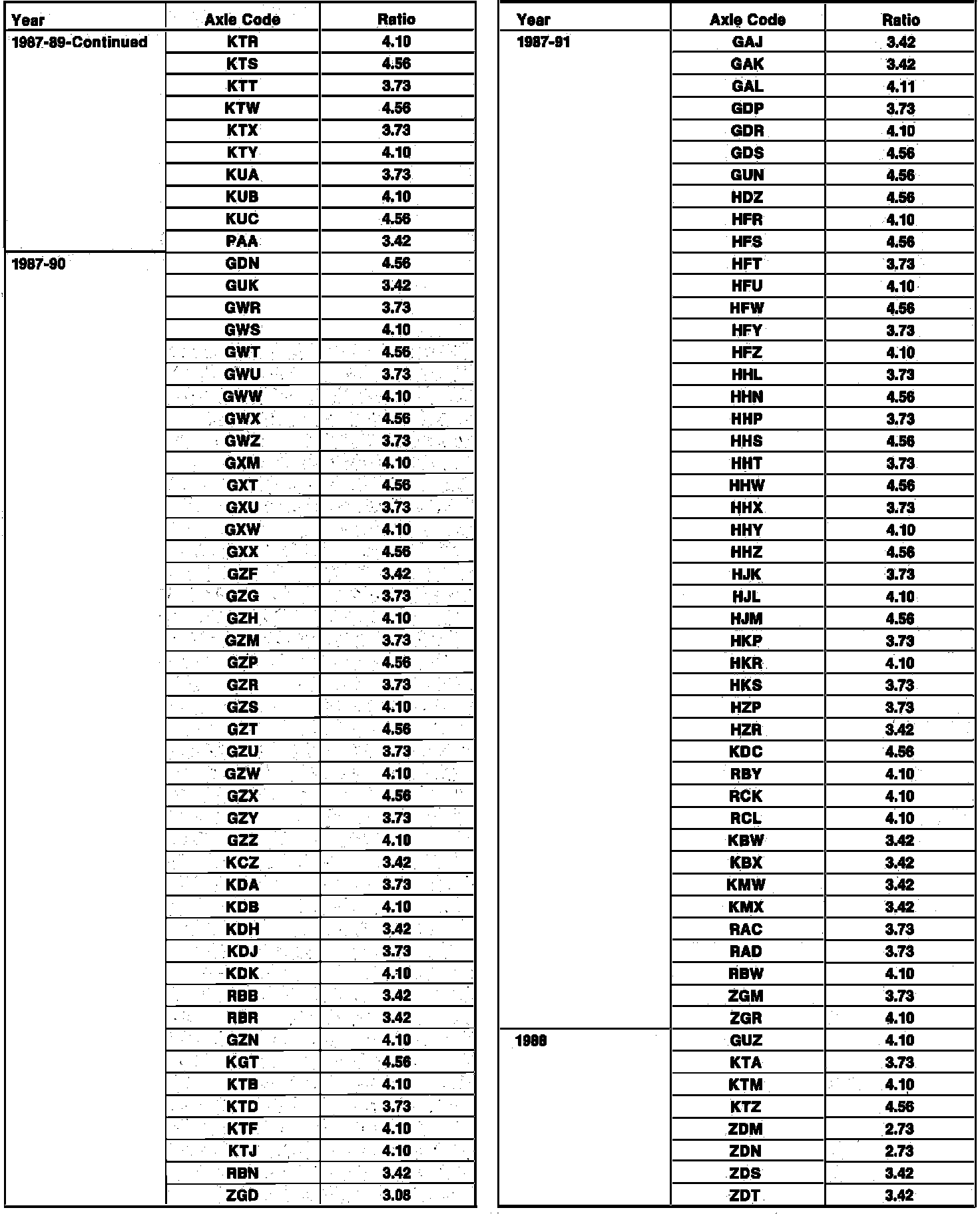

Axle Code and Gear Ratio Identification

Drive Axle Identification:



Drive Axle Identification:



Drive Axle Identification:



Drive Axle Identification:



Drive Axle Identification:



Drive Axle Identification:
