Clutch Slave Cylinder: Service and Repair

Slave cylinder removal:

1. Disconnect battery ground cable.

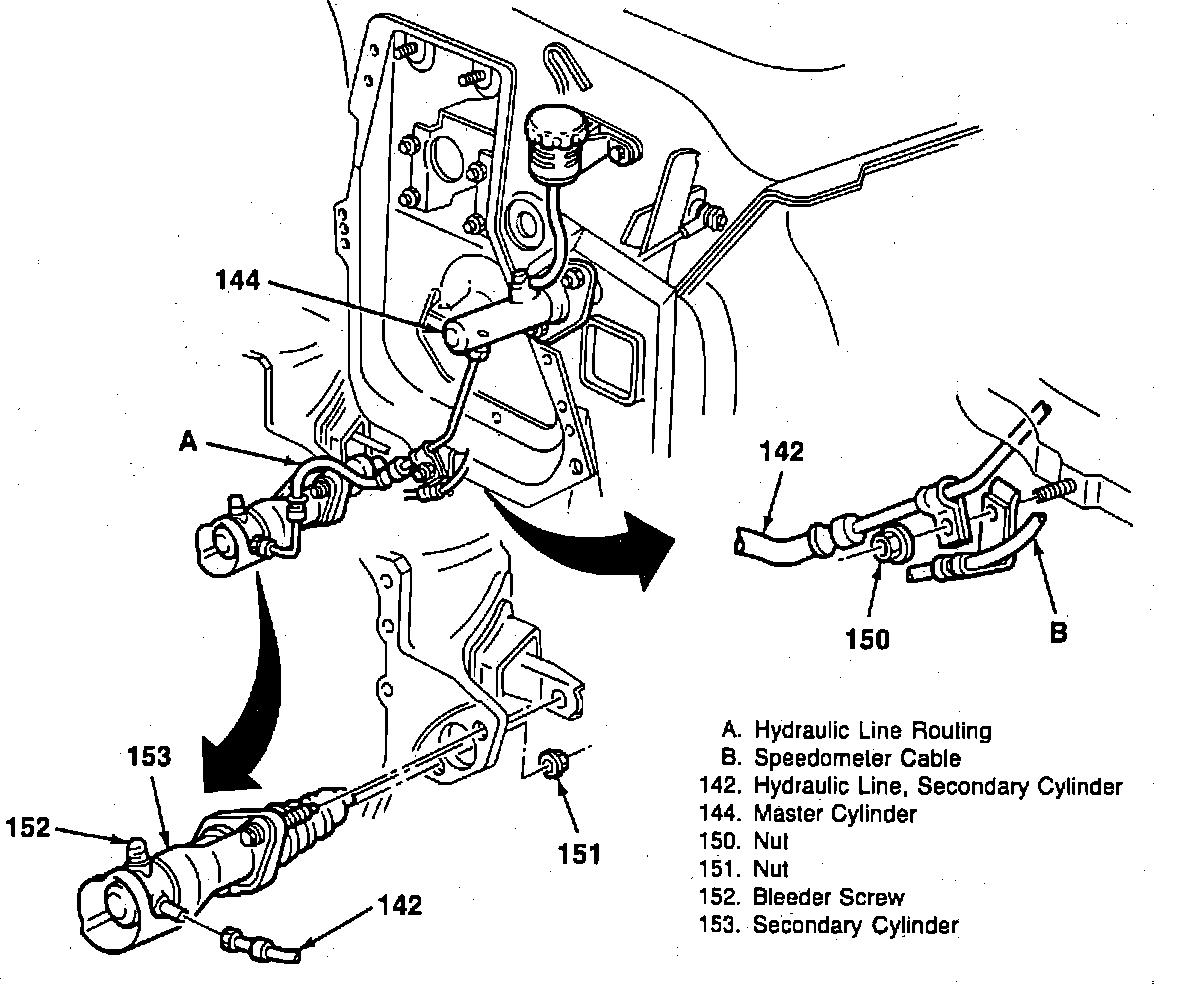

2. Raise vehicle and disconnect hydraulic line from cylinder. Fig. 2
3. Remove retaining nuts and slave cylinder.
4. Reverse procedure to install, then BLEED CLUTCH SYSTEM as described under MAINTENANCE PROCEDURES.
