3L80/3L80-HD Transmission Identification Information:

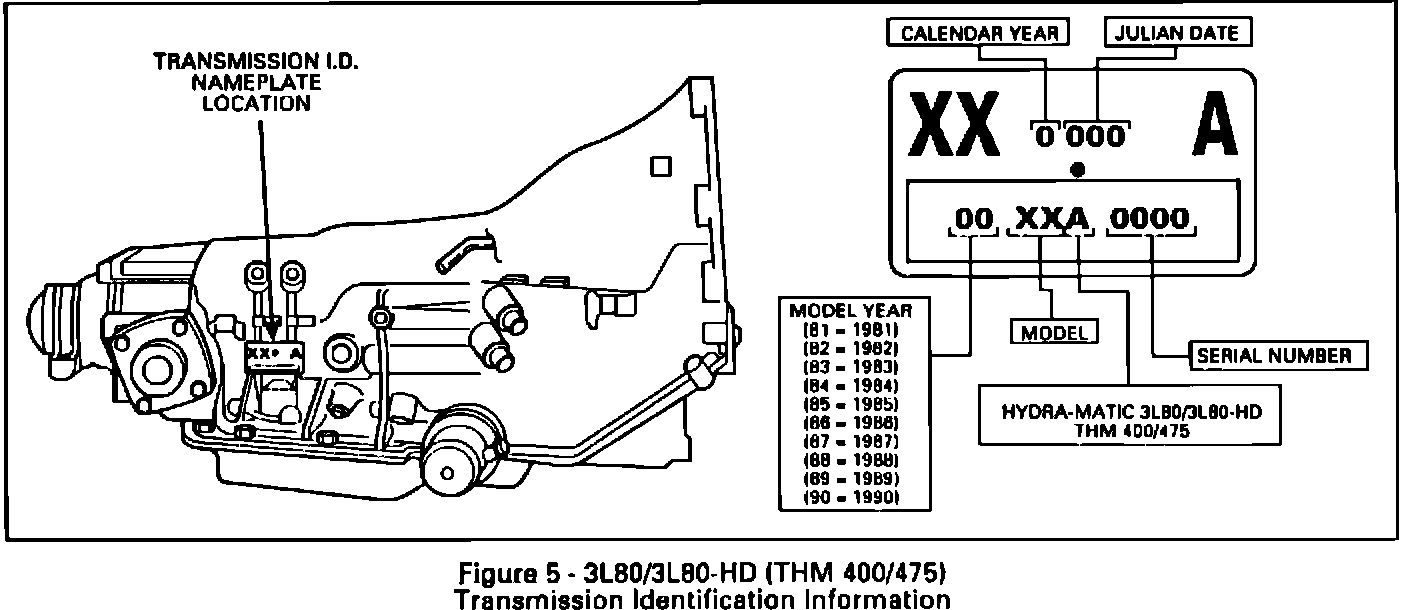

Figure 5:





The 3L80/3L80-HD transmission Identification information and the SRTA MODEL RATIONALIZATION CHART will assist in selecting the correct SRTA unit to order from your local Parts Distribution Center.
