Home >> Chevrolet >> 1989 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> 4L60 (700-R4) Automatic Transmission - Check Ball Locations >> Valve Body Checkballs

Valve Body Checkballs

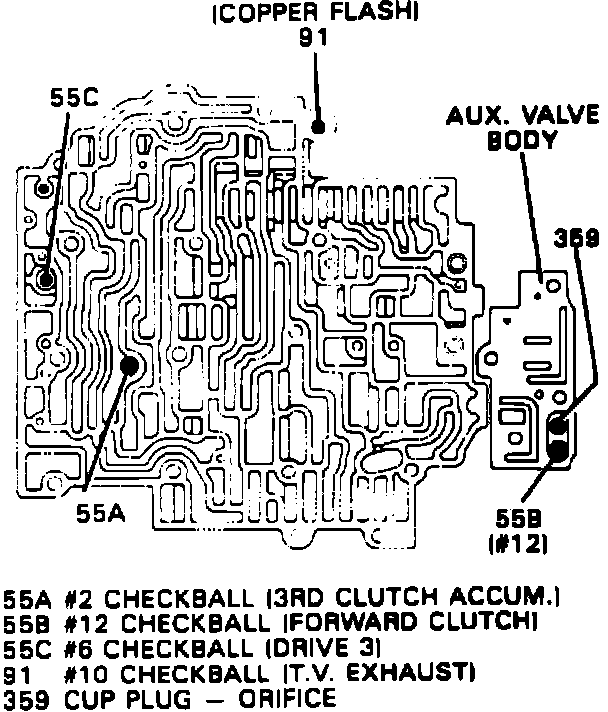

Valve Body Checkball Locations:
