A/T - THM 400 Rear Band Adjustment Too Loose

TSB 85-54 (Dec.)

SUBJECT: THM 400

PROBLEM:
Rear Band adjustment too loose when using a 2-ring Servo Pin. 3-ring Pins not available.

AN ANSWER:

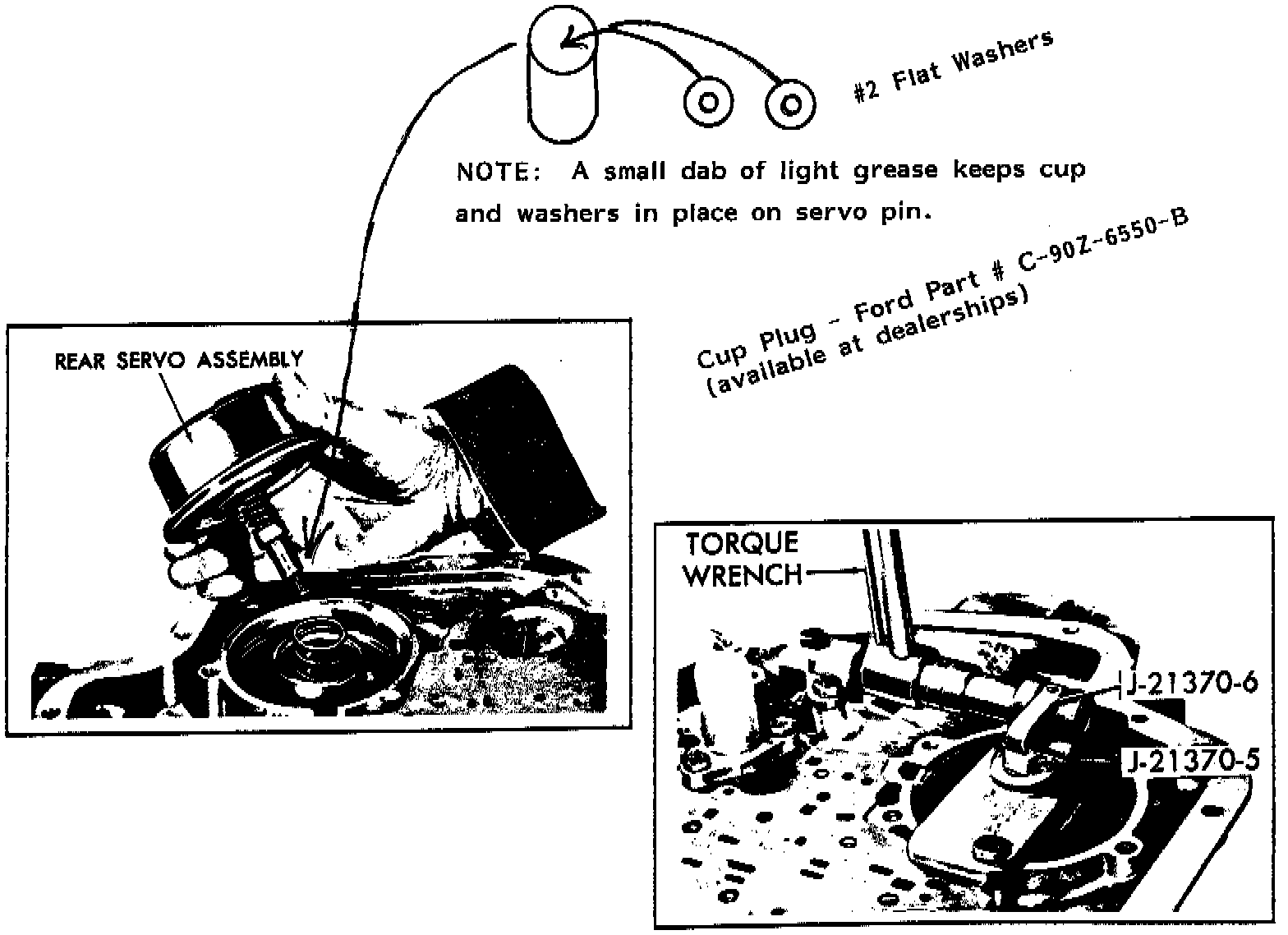

A case hardened cap, with selective washers, to bring clearance within specifications
