New 1-2 Servo Apply Pin Selection Chart

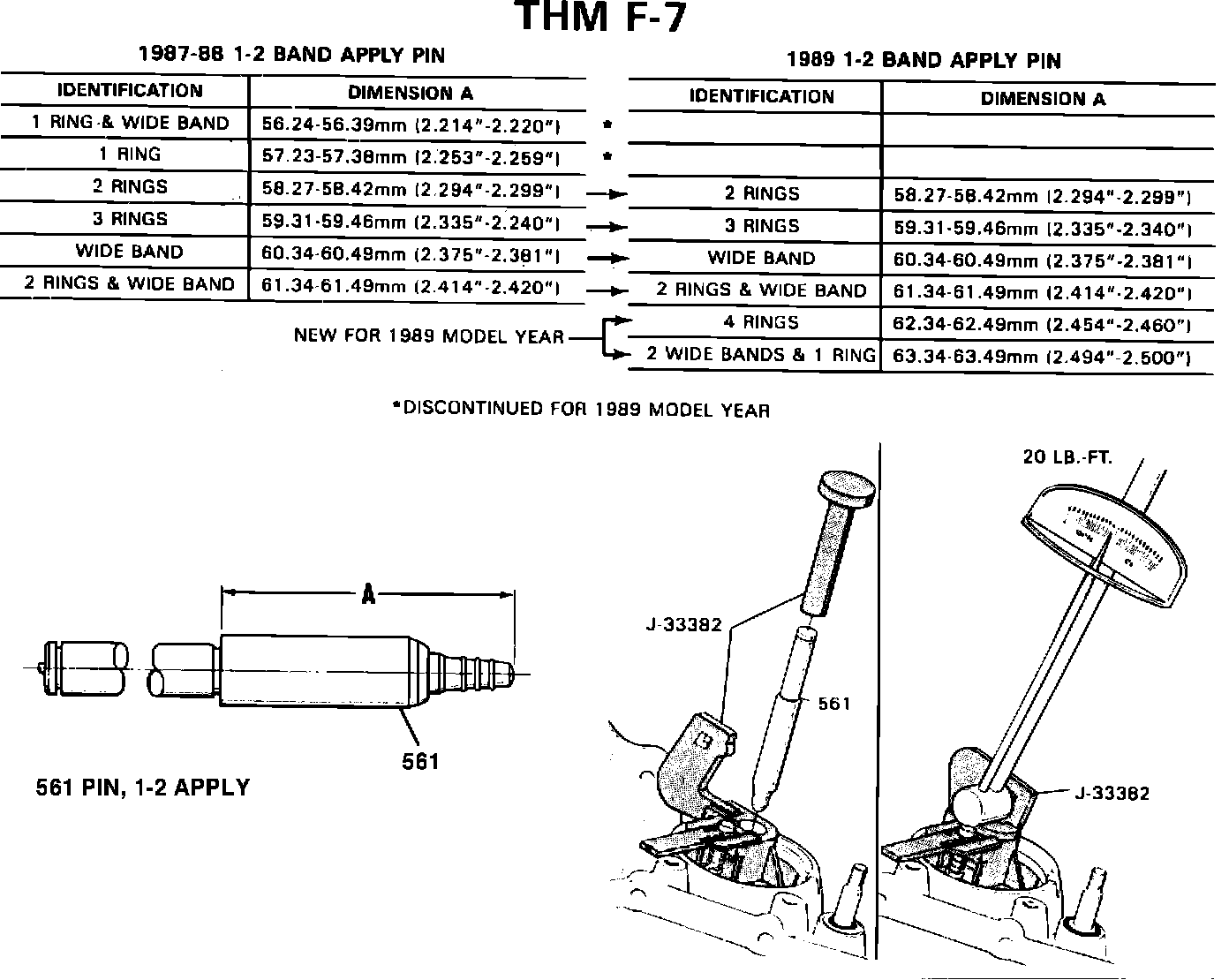

FIGURE 2 - 1-2 BAND APPLY PIN:

TRANSAXLE APPLICATIONS: SUBJECT:

1989 THM F-7 (ME9) New 1-2 Servo Apply Pin
Selection Chart

TRANSAXLE MODELS: AXH VEHICLE APPLICATIONS: V Car


CHANGE TO ASSEMBLY COMPONENT: (Figure 2)

The 1-2 servo apply pin (561) selection chart has been changed for the 1989 model year to eliminate the two shortest of the selection set while adding two longer selections. The 1989 THM F-7 Transaxle calibration requires a new selection set.

SERVICE ACTION:

When servicing a past model THM F-7 transaxle use the proper year 1-2 servo apply pin selection chart.

SERVICE PARTS INFORMATION:

Reference new 1-2 servo apply pin selection chart, Figure 2.
SERVICE MANUAL REFERENCE:

This product change information is shown in the THM F-7 Automatic Transaxle Unit Repair section of your 1989 Service Manual.
