Initial Inspection and Diagnostic Overview

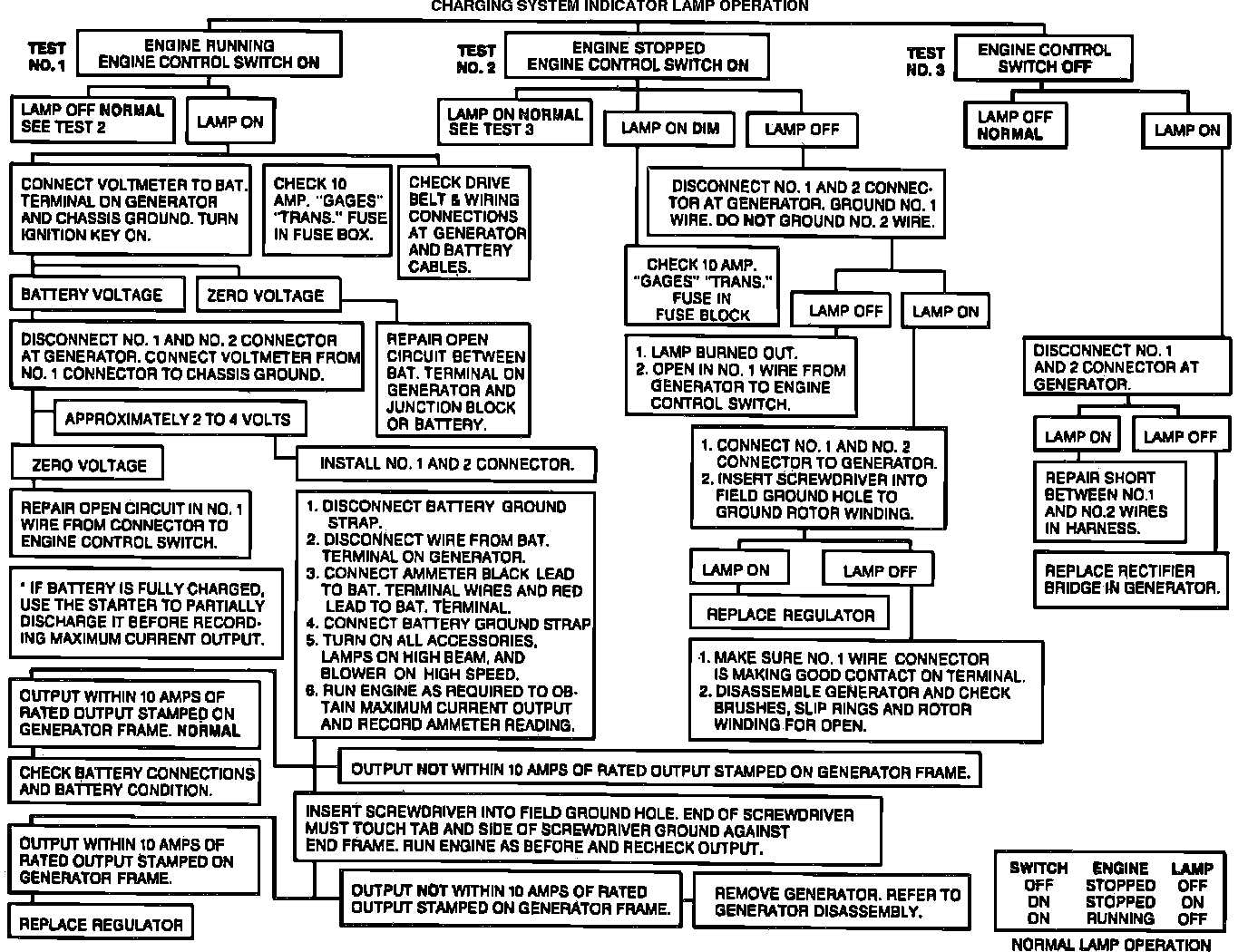

Fig. 8 Charging System Diagnosis Chart:






For charging system diagnosis, refer to Fig. 8.
