Rear Crankshaft Main Bearing Seal

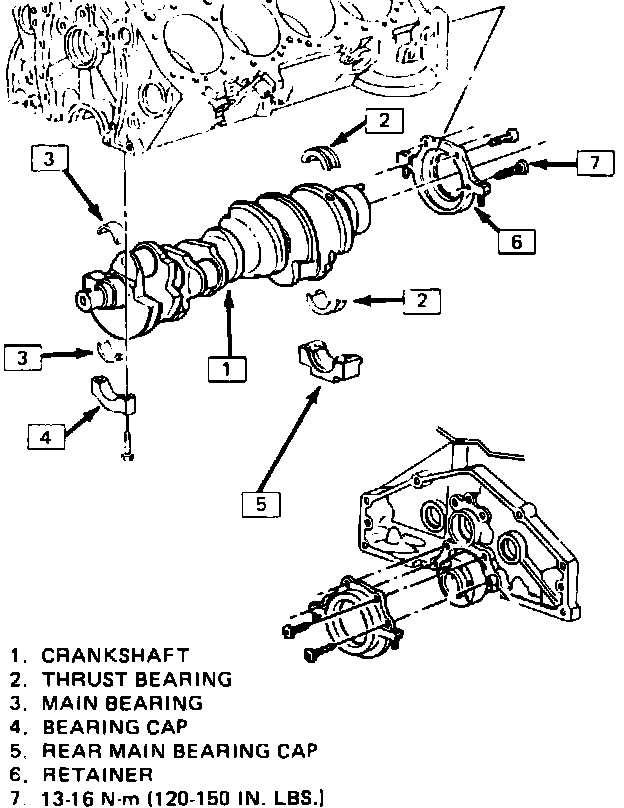

Fig. 35 Rear crankshaft oil seal:





Rear Crankshaft Oil Seal Retainer Screws and Nuts: 15n.m (135 in. lbs.)
