Instrument Cluster Replacement

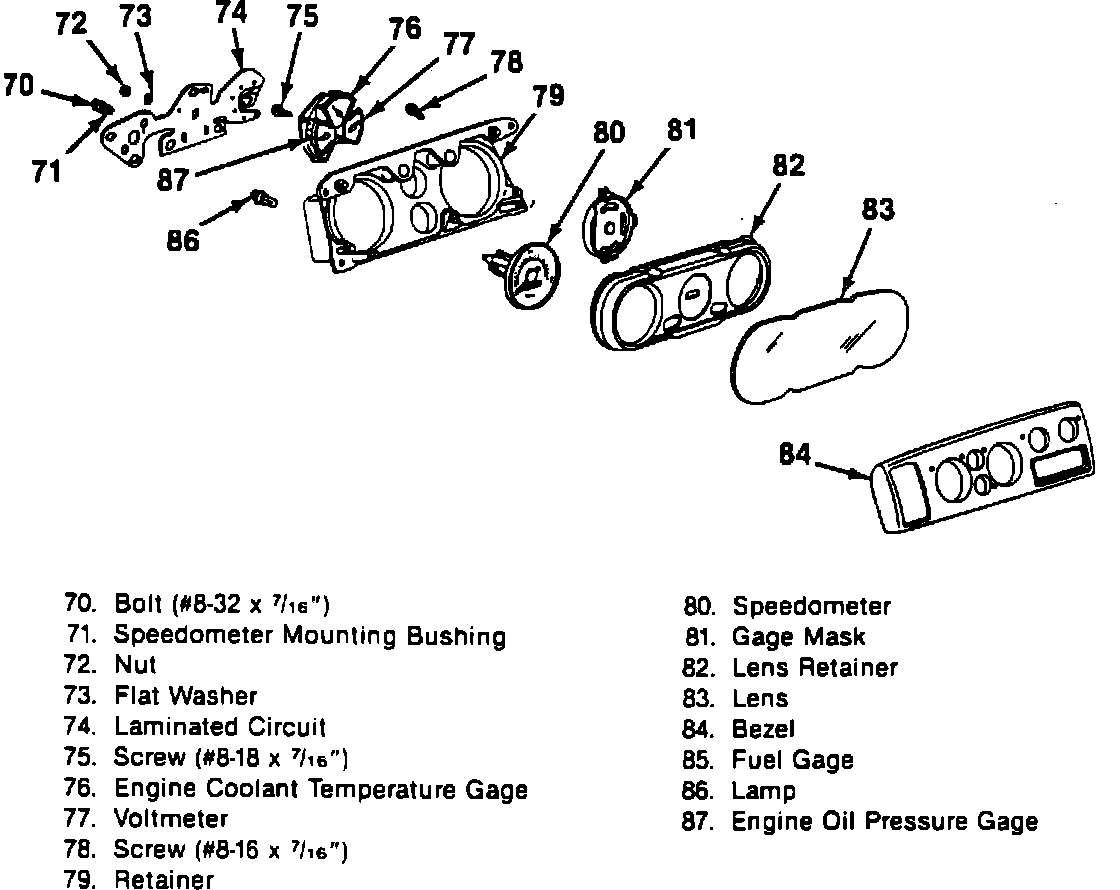

Fig. 15 Instrument cluster removal:

1. Disconnect battery ground cable.
2. Working from behind instrument cluster, disconnect speedometer cable.
3. Remove clock set stem knob, if equipped.
4. Remove instrument cluster bezel attaching screws, then the bezel, Fig. 15.
5. Remove two lower cluster attaching screws, then pull top of cluster outward.
6. Disconnect instrument panel harness connector from printed circuit, then remove cluster from vehicle.
7. Reverse procedure to install.
