Component Tests and General Diagnostics

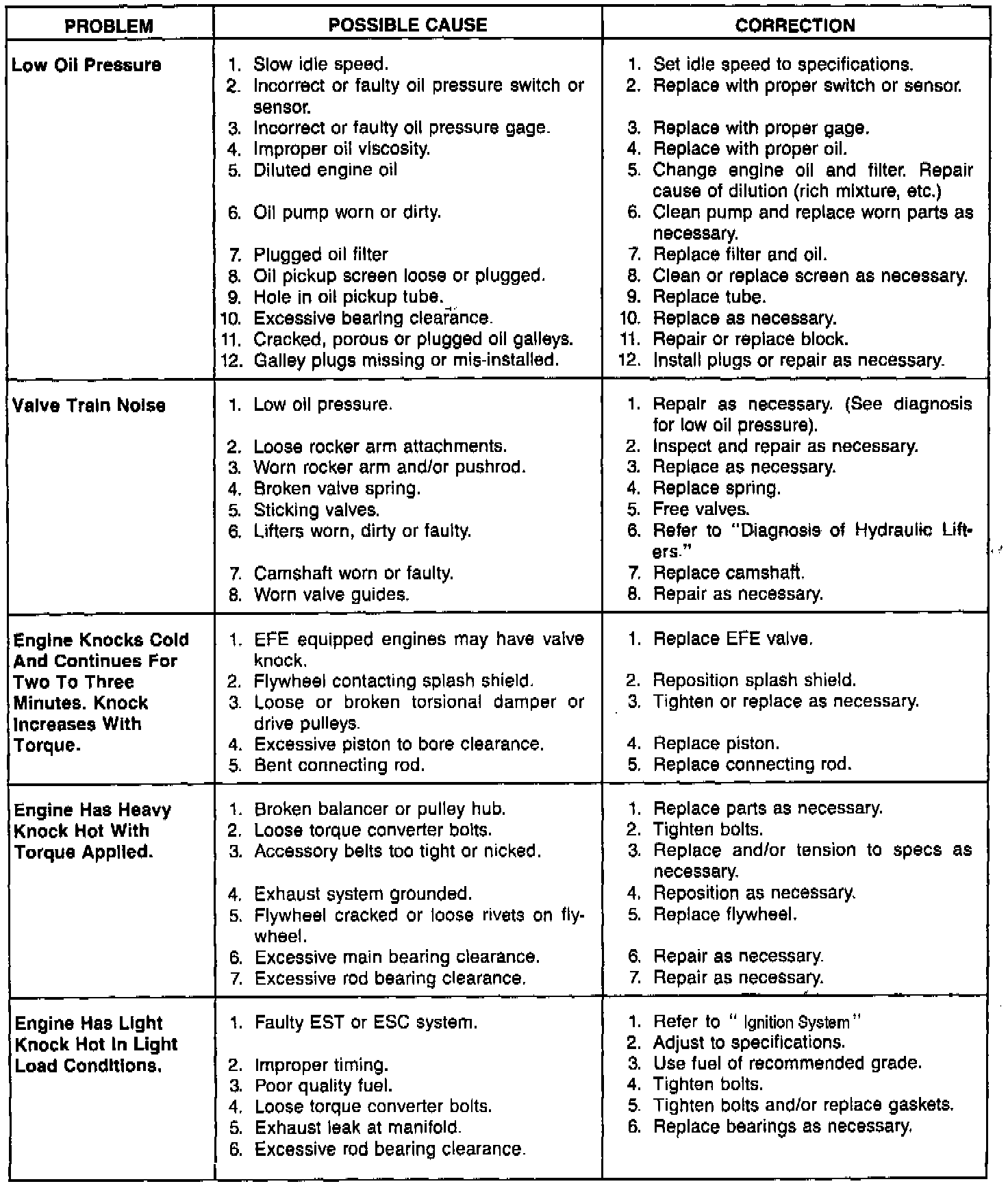

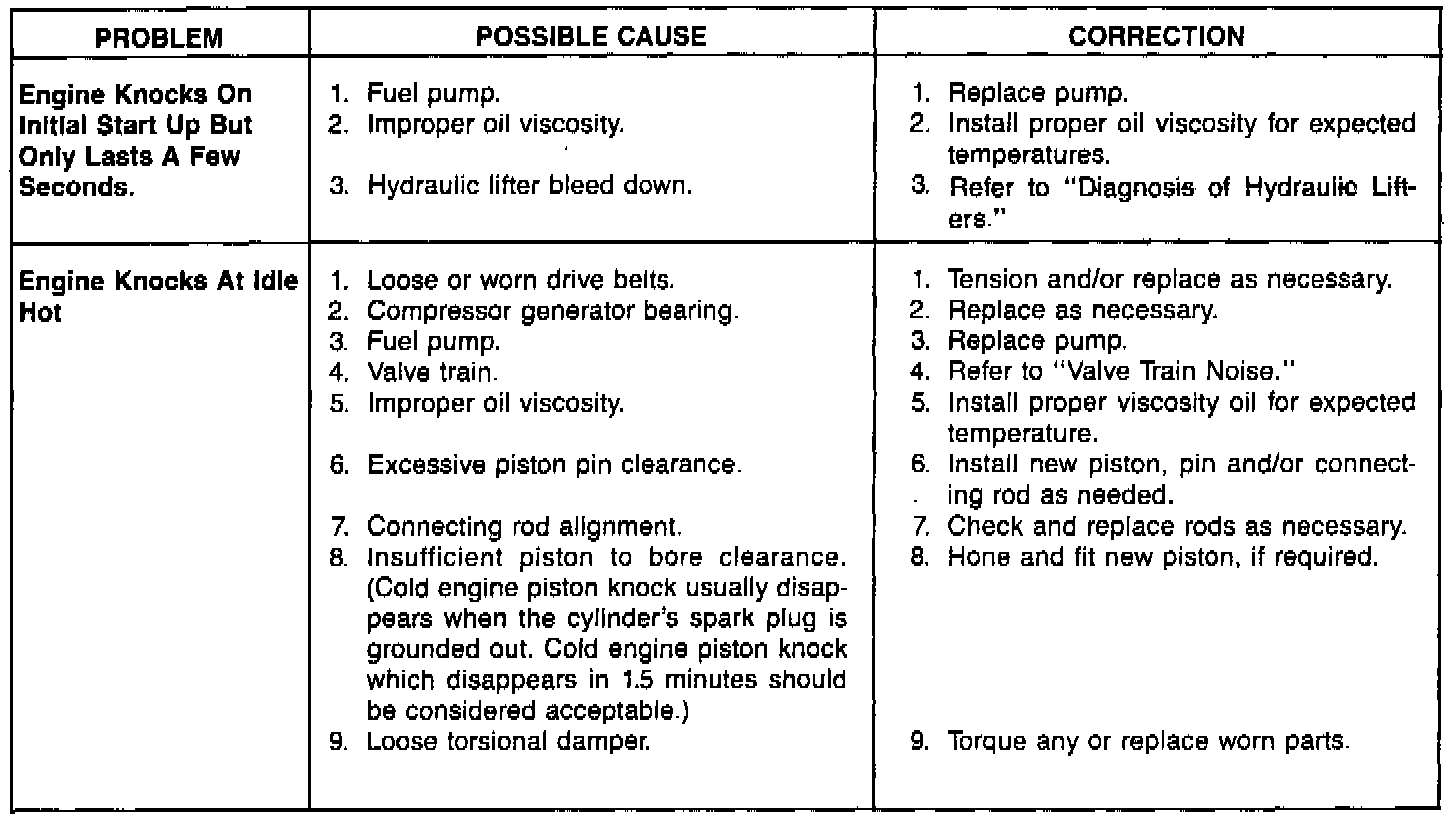

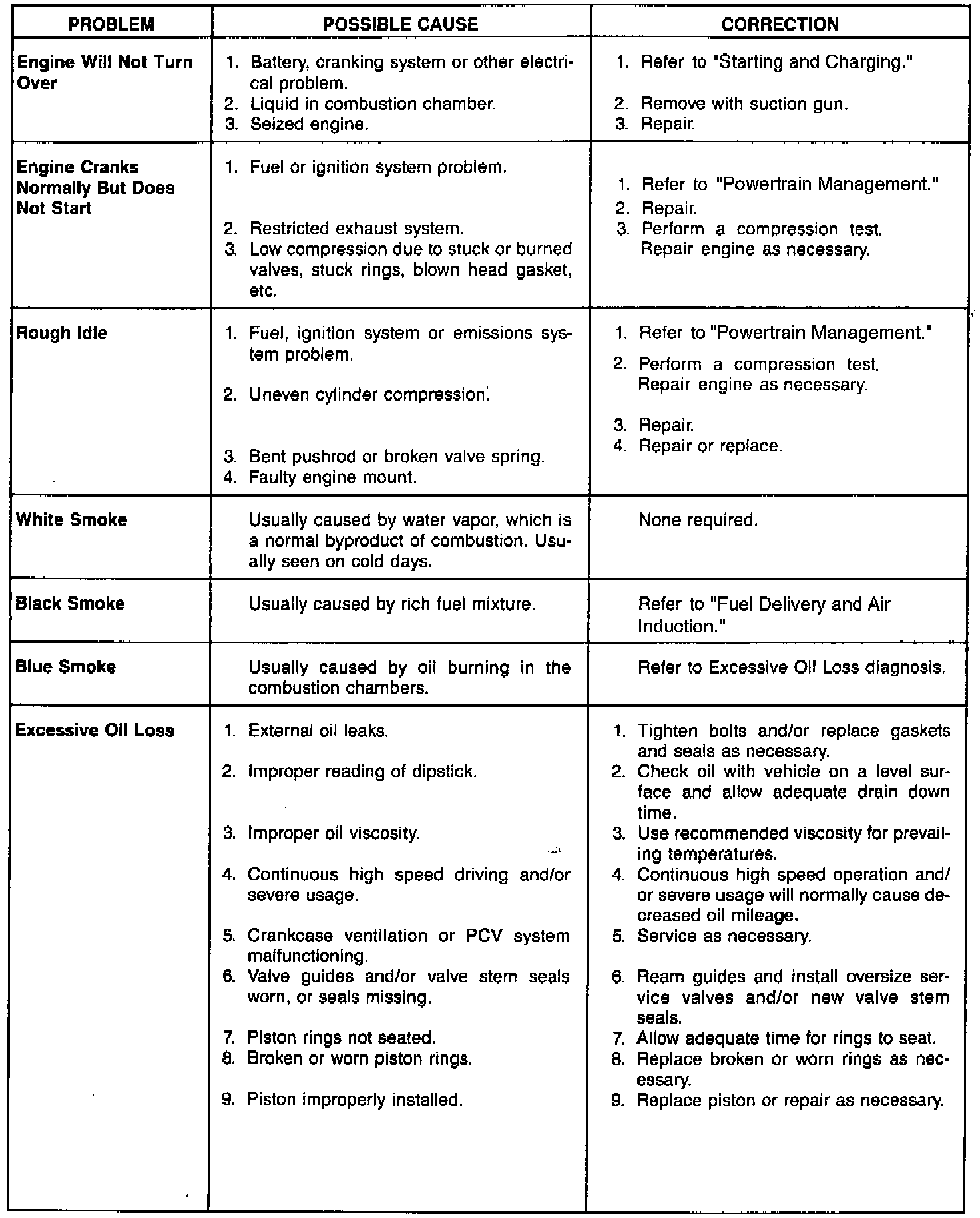

Engine Mechanical Diagnosis:

Engine Mechanical Diagnosis:

Engine Mechanical Diagnosis:

For Engine Mechanical Diagnosis see above charts.

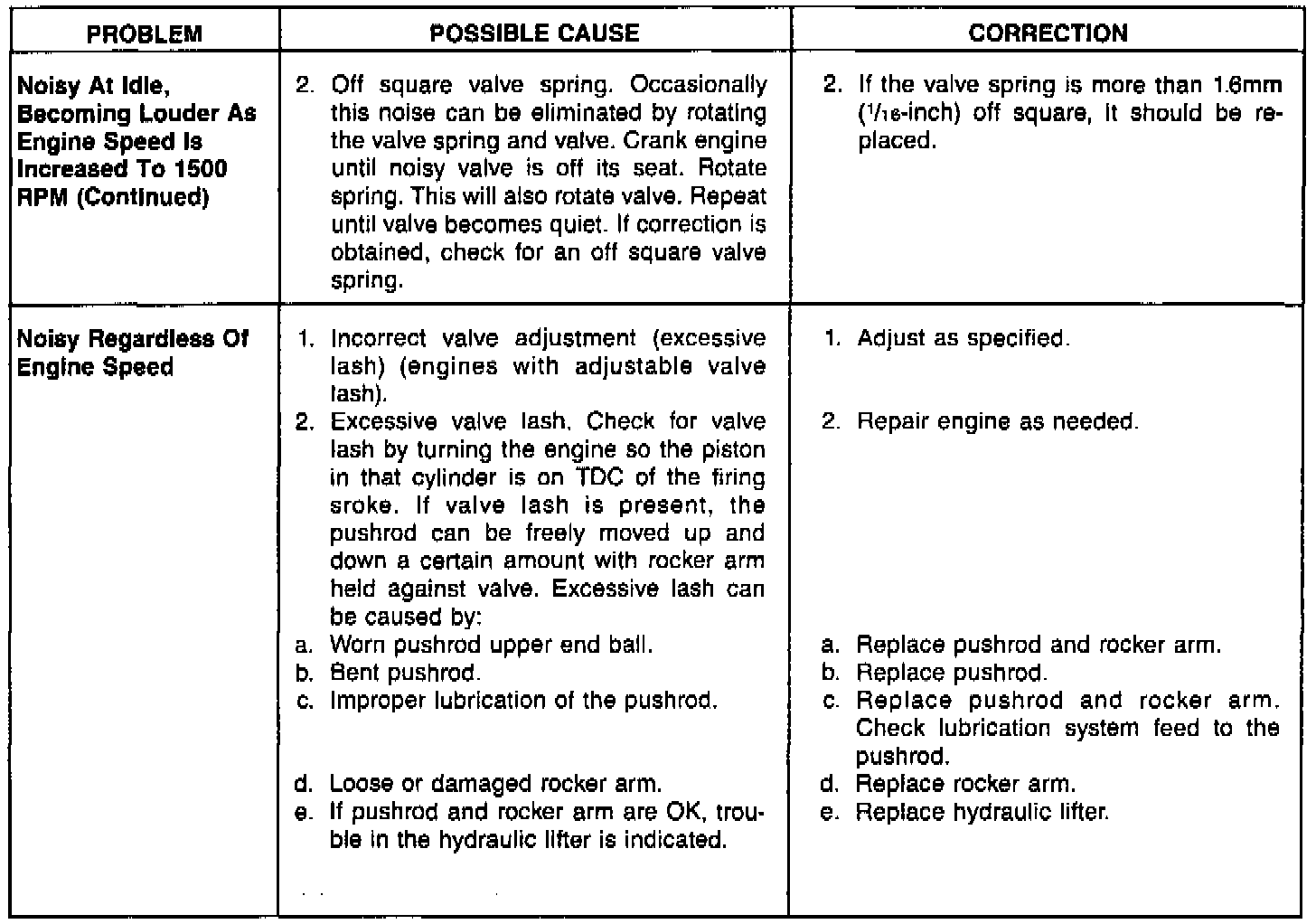

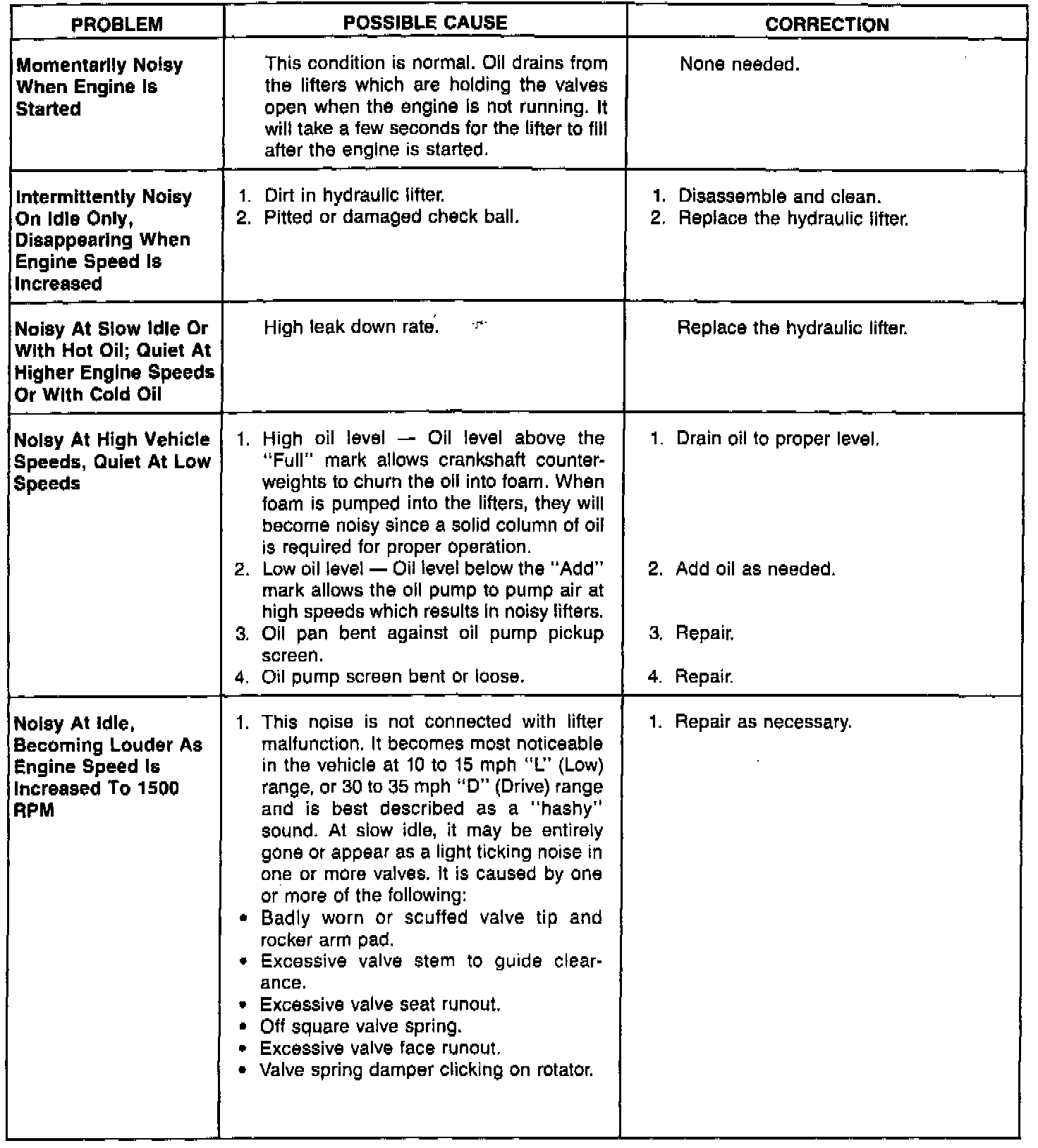

Hydraulic Lifter Diagnosis:

Hydraulic Lifter Diagnosis:

For Hydraulic Lifter Diagnosis see above charts.
