Thermostat: Testing and Inspection

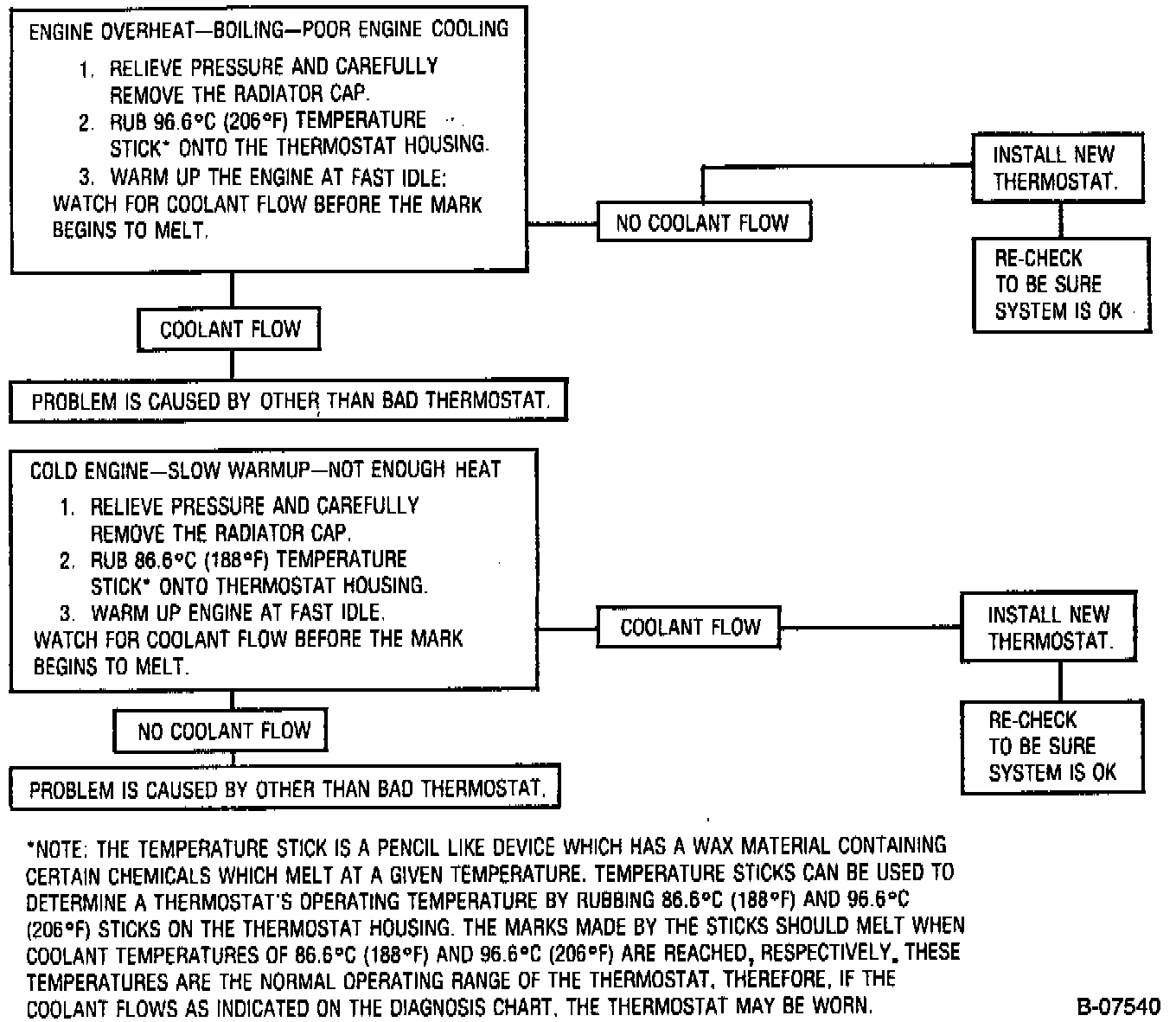

Thermostat Diagnosis Chart:





Refer to image for thermostat diagnosis chart.
