Home >> Chevrolet >> 1989 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Heater Core >> Diagrams >> Auxiliary Heater Components

Auxiliary Heater Components

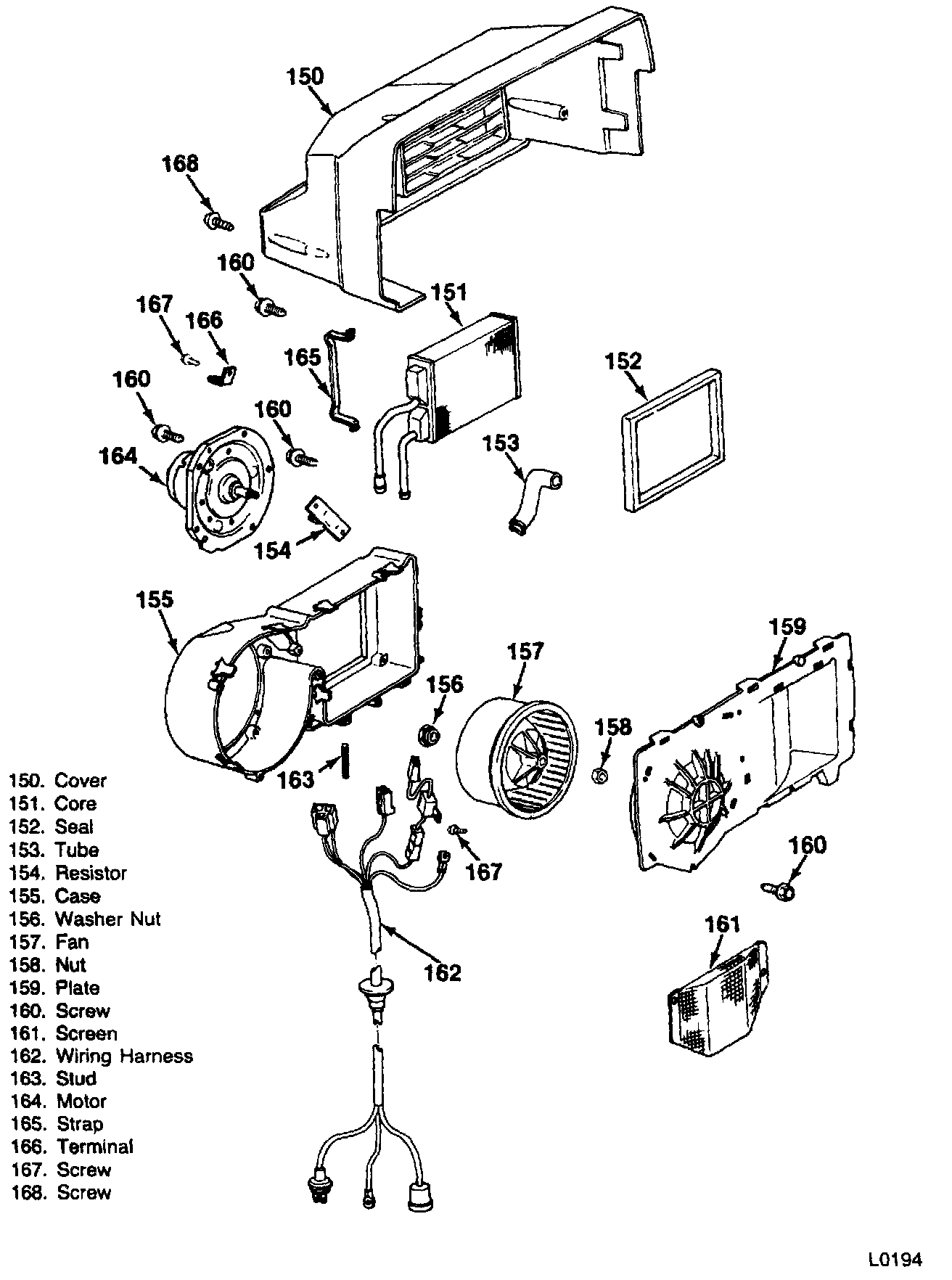

Auxiliary Heater Component View:
