LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1989
>>
G 10 Van V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>

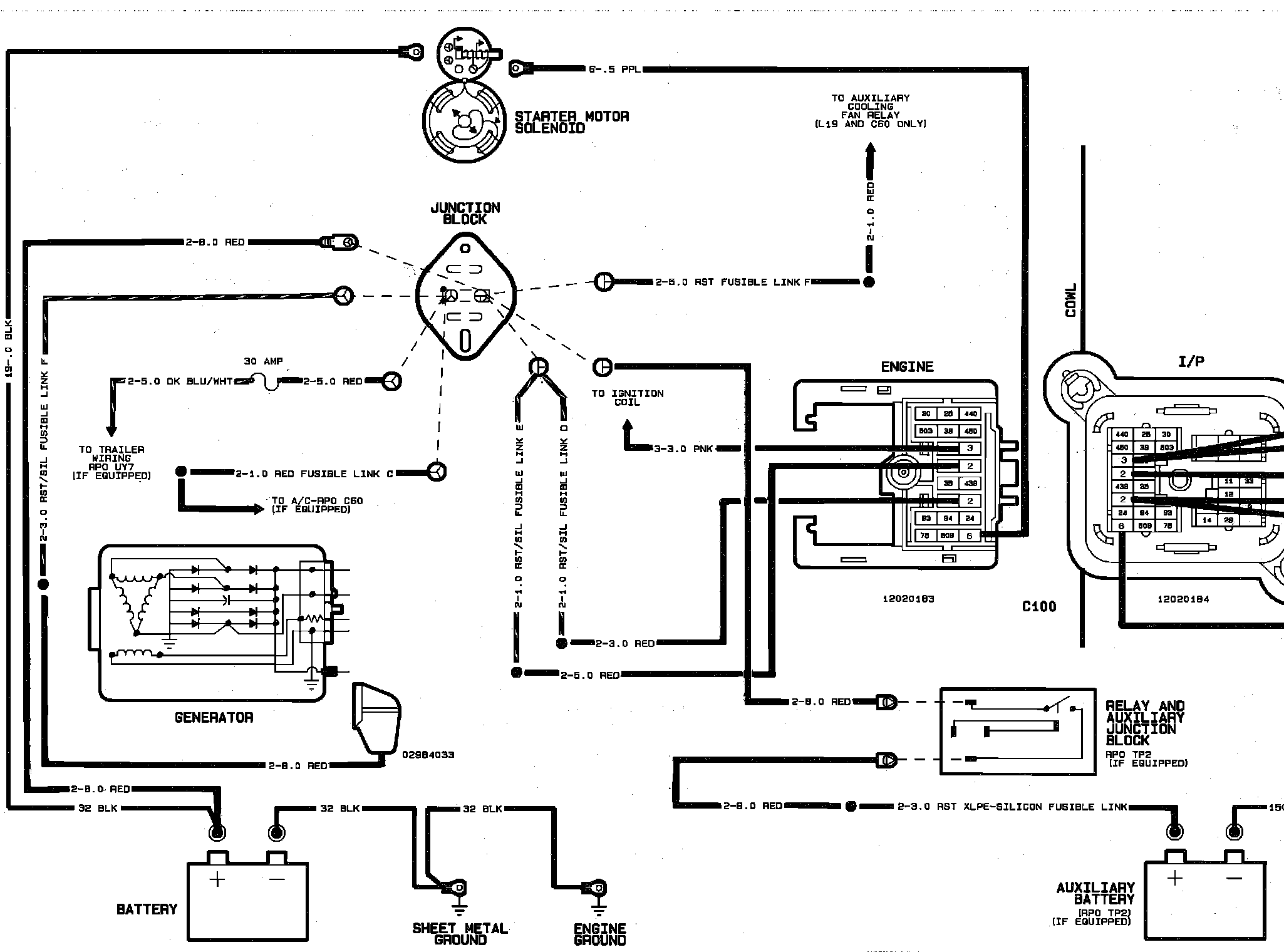

Charging System
Charging System
mG�2,��2Power Distribution:
