Home >> Chevrolet >> 1989 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> License Plate Lamp >> 2-Door Cab

2-Door Cab

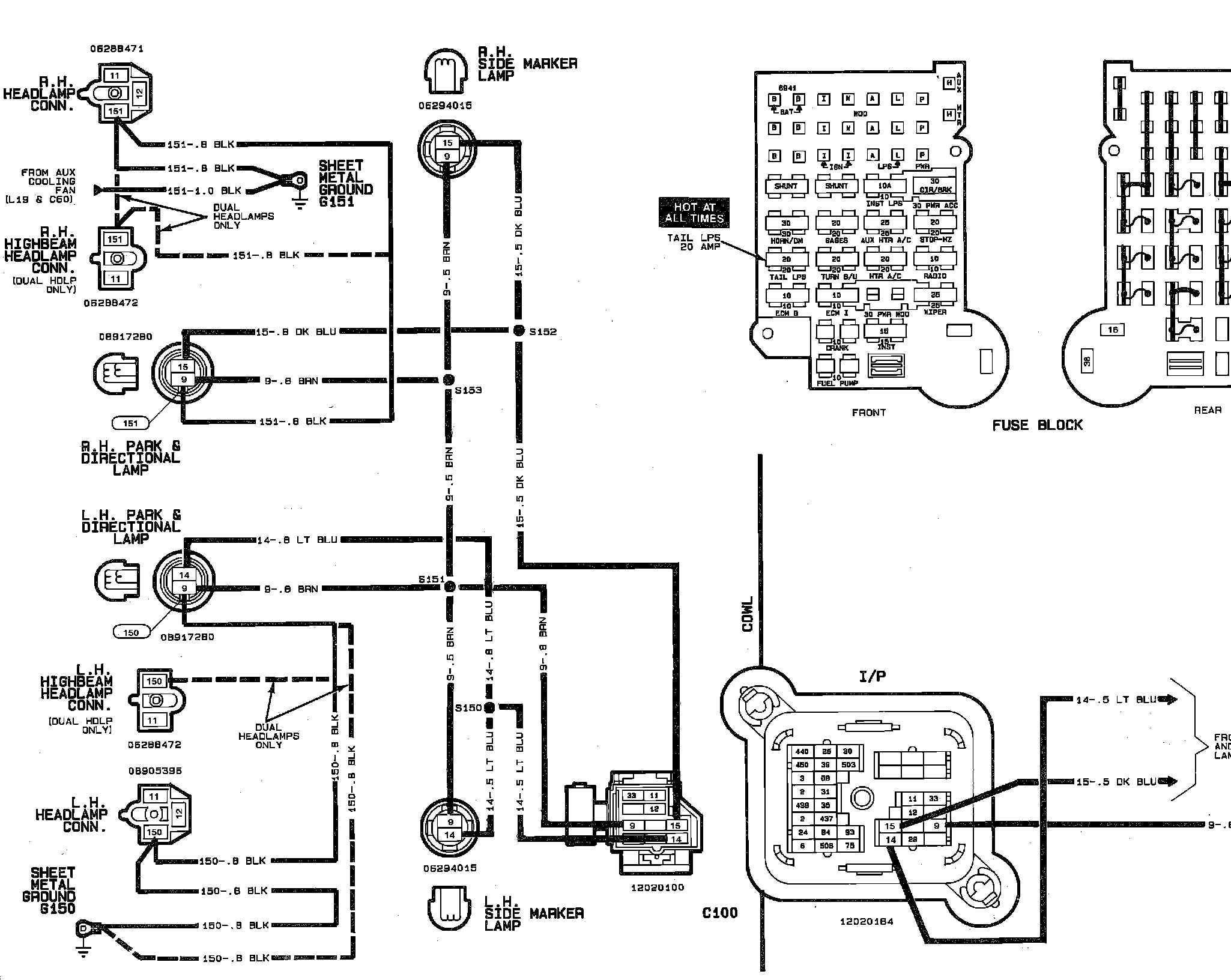

���D��DLicense, Park & Marker Lamps (2-Door Cab):
