Home >> Chevrolet >> 1989 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Warning Indicators >> Without Electronic Cluster

Without Electronic Cluster

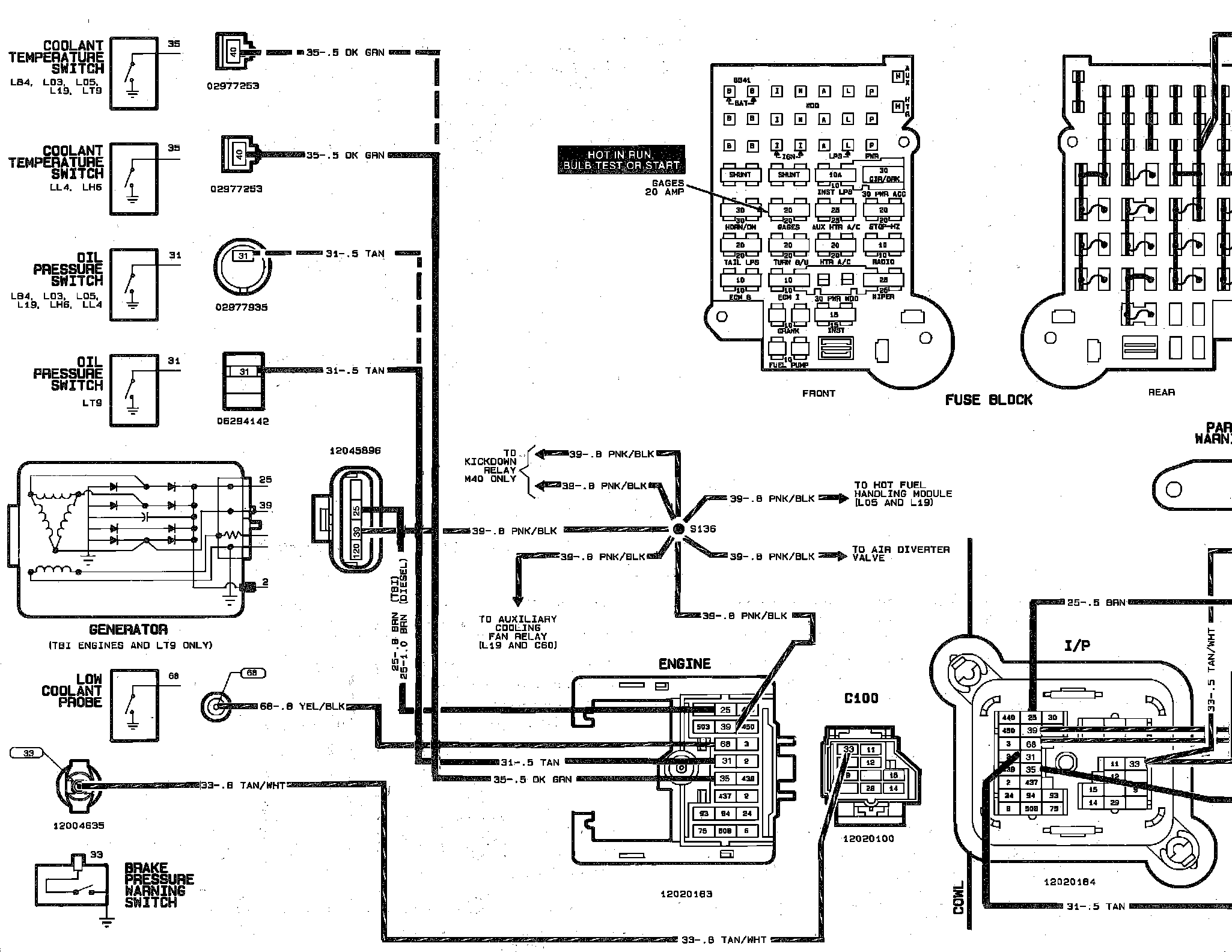

�rB��rBGauges & Warning Indicators (Less Electronic Cluster):
