Home >> Chevrolet >> 1989 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> A/C System Wiring Diagram >> Auxiliary Unit

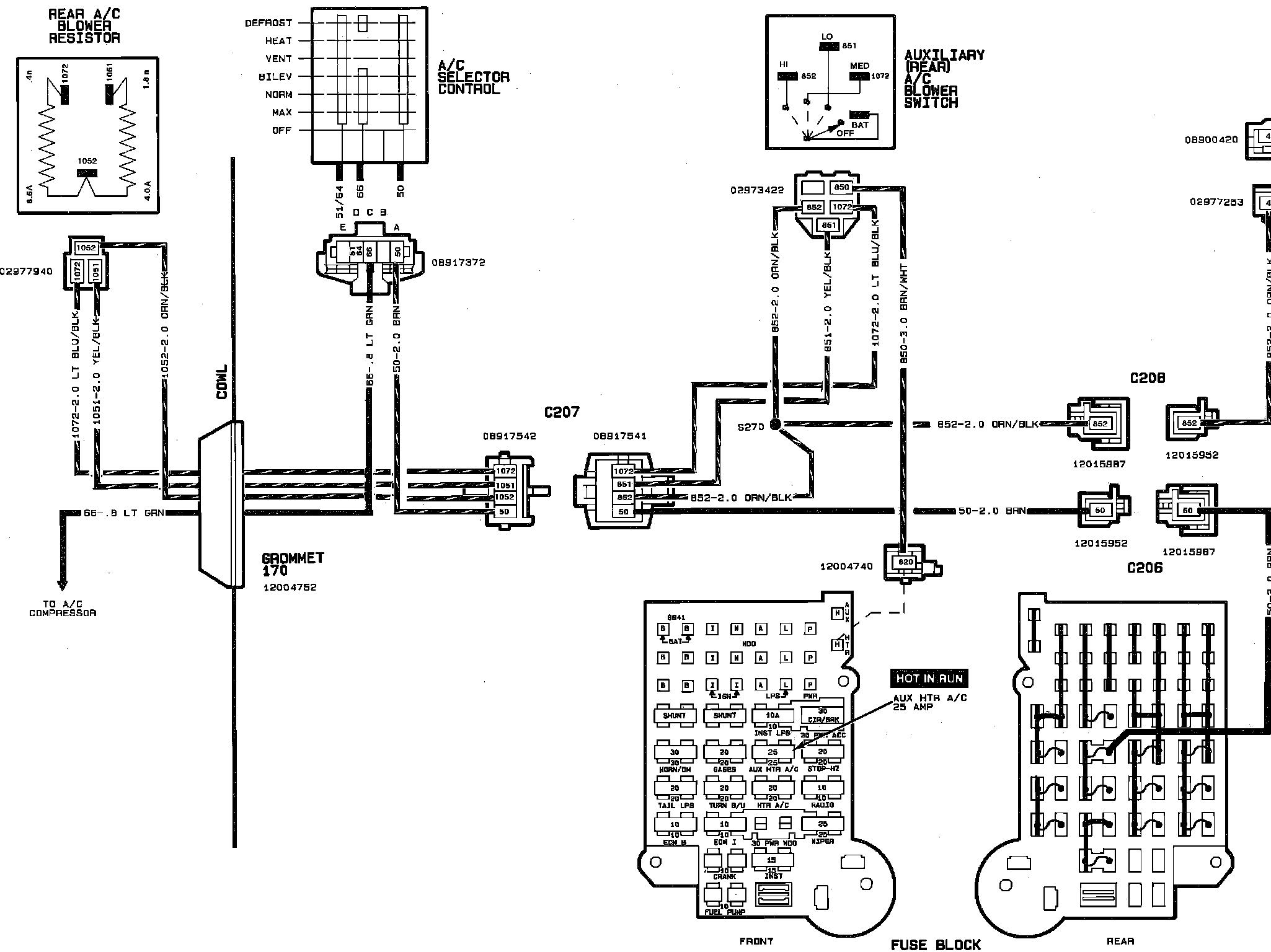

Auxiliary Unit

�F9Auxiliary Air Conditioning:
