Home >> Chevrolet >> 1989 >> G 10 Van V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Hazard Warning Lamps >> 2-Door Cab

2-Door Cab

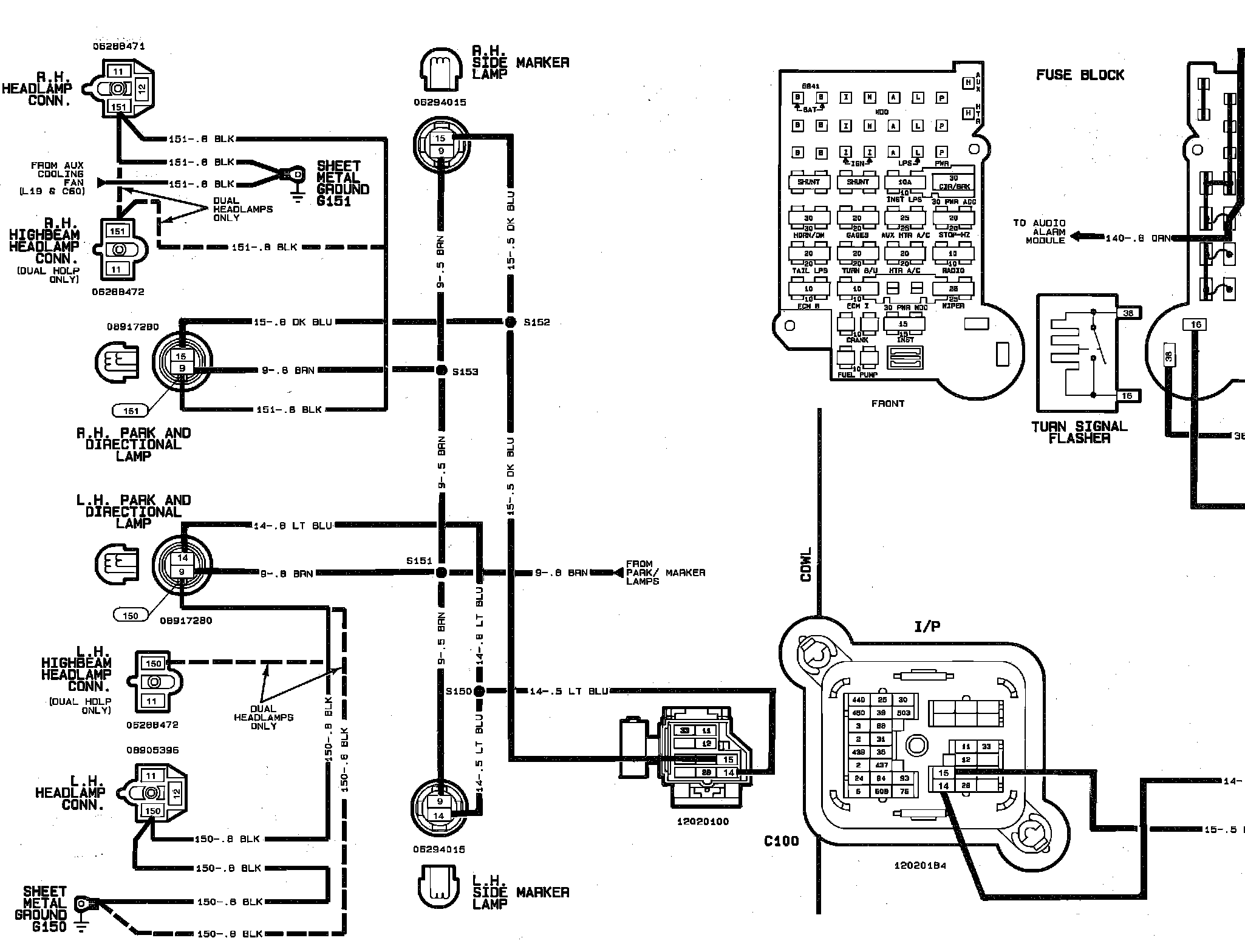

��C�.�CHazard, Stop & Turn Lamps (2-Door Cab):
