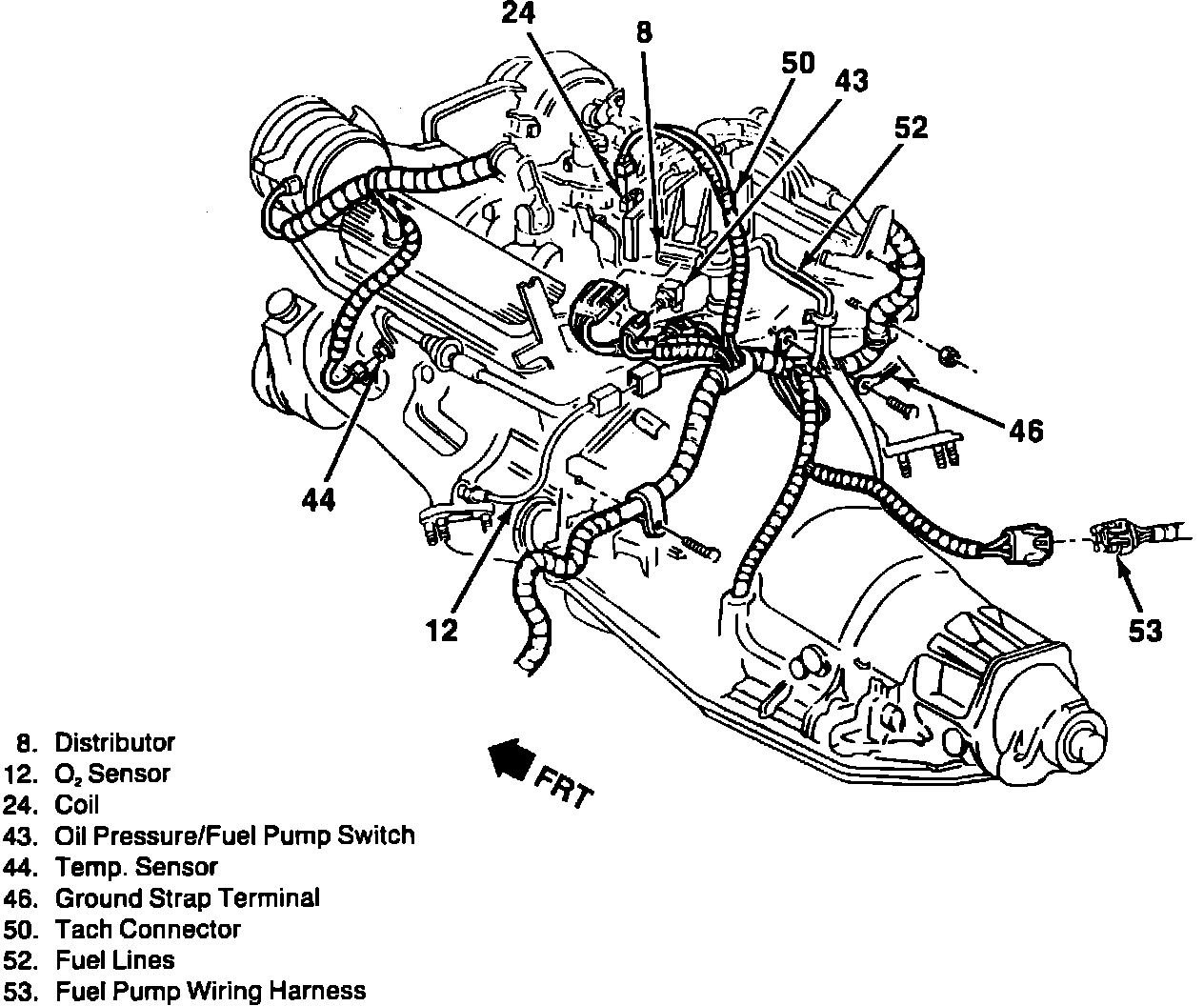

Left Side View

Engine Wire Routing (Left Side):

8 = DISTRIBUTOR.
12 = O2 SENSOR.
24 = COIL.
43 = OIL PRESSURE/FUEL PUMP SWITCH.
44 = TEMPERATURE SENSOR.
46 = GROUND STRAP TERMINAL.
50 = TACH CONNECTOR.
52 = FUEL LINES.
53 = FUEL PUMP WIRING HARNESS.
