Rocker Shaft Assembly & Camshaft: Installation

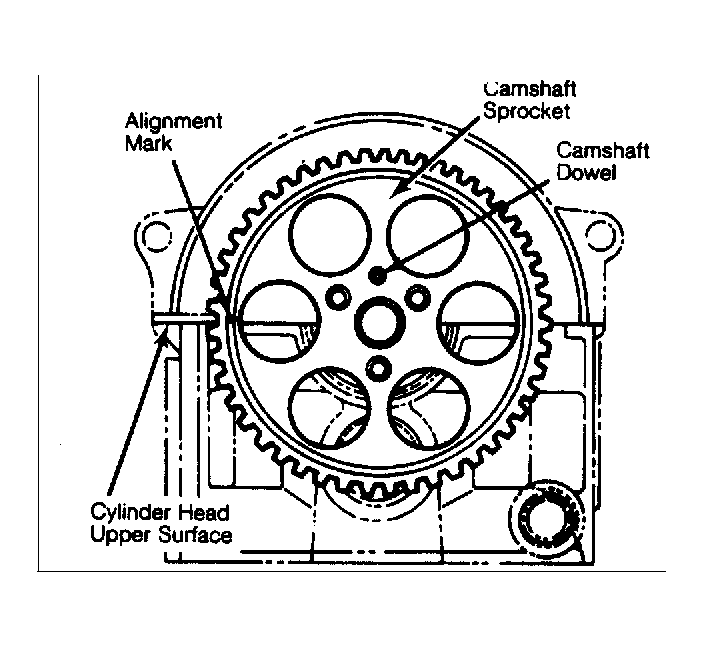

Lubricate and install camshaft with dowel pin in 12 o'clock position. See Fig 1 . Apply sealer to cylinder head mating surface of No. 1 and No. 5 rocker shaft mounting brackets. Lubricate and install new camshaft oil seal using Seal Installer (J-35268). To complete installation, reverse removal procedure. Adjust timing belt.
