Cylinder Head: Installation

Install new head gasket. Install cylinder head. Lubricate head bolts with engine oil. Tighten head bolts to specification. See Fig 1 . To complete installation, reverse removal procedure. Adjust valve clearance to specification.

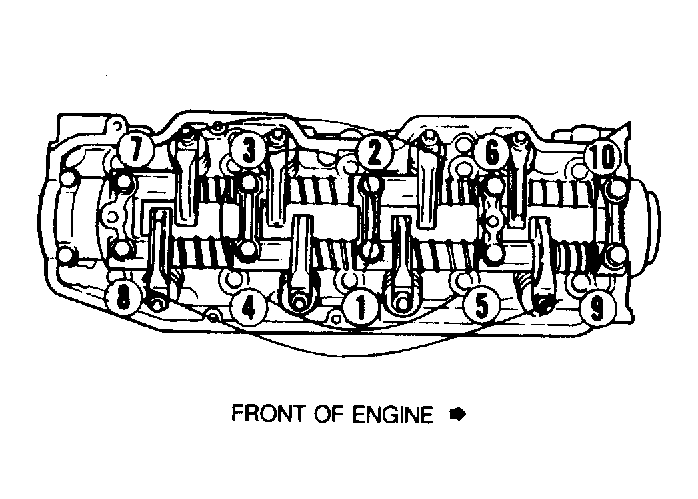

Fig 1: Cylinder Head Bolt Tightening Sequence
G80631
