Pivot Shaft Bushing Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1987 GMC Safari, 1987 GMC S15 Pickup, 1987 GMC S15 Jimmy, 1987 GMC Cab & Chassis, and 1987 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. With upper control arm assembly removed from vehicle, remove nuts from ends of pivot shaft. Position control arm assembly and Upper Control Arm Bushing Service Set, which includes Remover (J-24770-2 ), Receiver (J-24770-3 ), Installer (J-24770-1 ) and "C" Clamp (J-22269-1 ) in vise. See Fig 1 .
  2. Press bushing out of control arm bore, then repeat procedure for opposite side bushing. To install bushings, place pivot shaft in control arm. Using "C" Clamp (J-22269-1 ) and Installer (J-24770-1 ), push new bushing into control arm bore and onto pivot shaft. See Fig 1 .

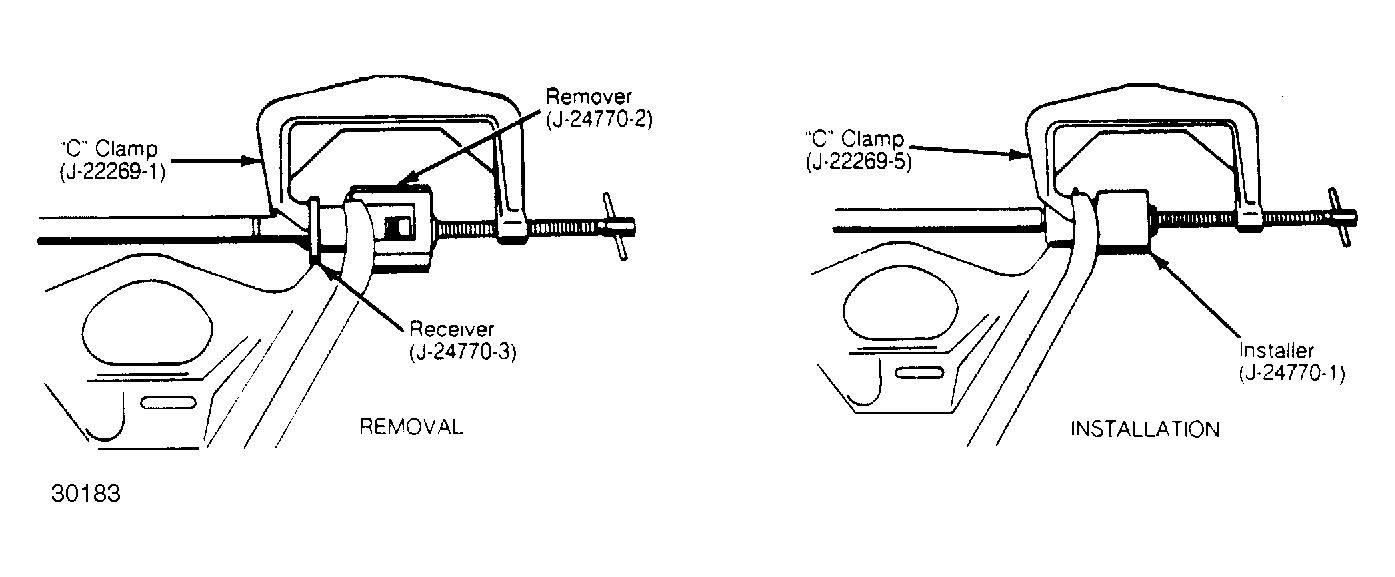

    Fig 1: Removing & Installing Upper Control Arm Bushings
    G30183Courtesy of GENERAL MOTORS CORP.
  3. When installing, ensure each bushing is .48-.52" (12.8-13.8 mm) from face of control arm to bushing outer sleeve. See Fig 2 . Repeat procedure of opposite side bushing. Install nuts onto pivot shaft ends. Install control arm assembly on vehicle.
Fig 2: Positioning Upper Control Arm Bushing
G30185Courtesy of GENERAL MOTORS CORP.
